Art.-Nr. GBK3817-EG170 FVK

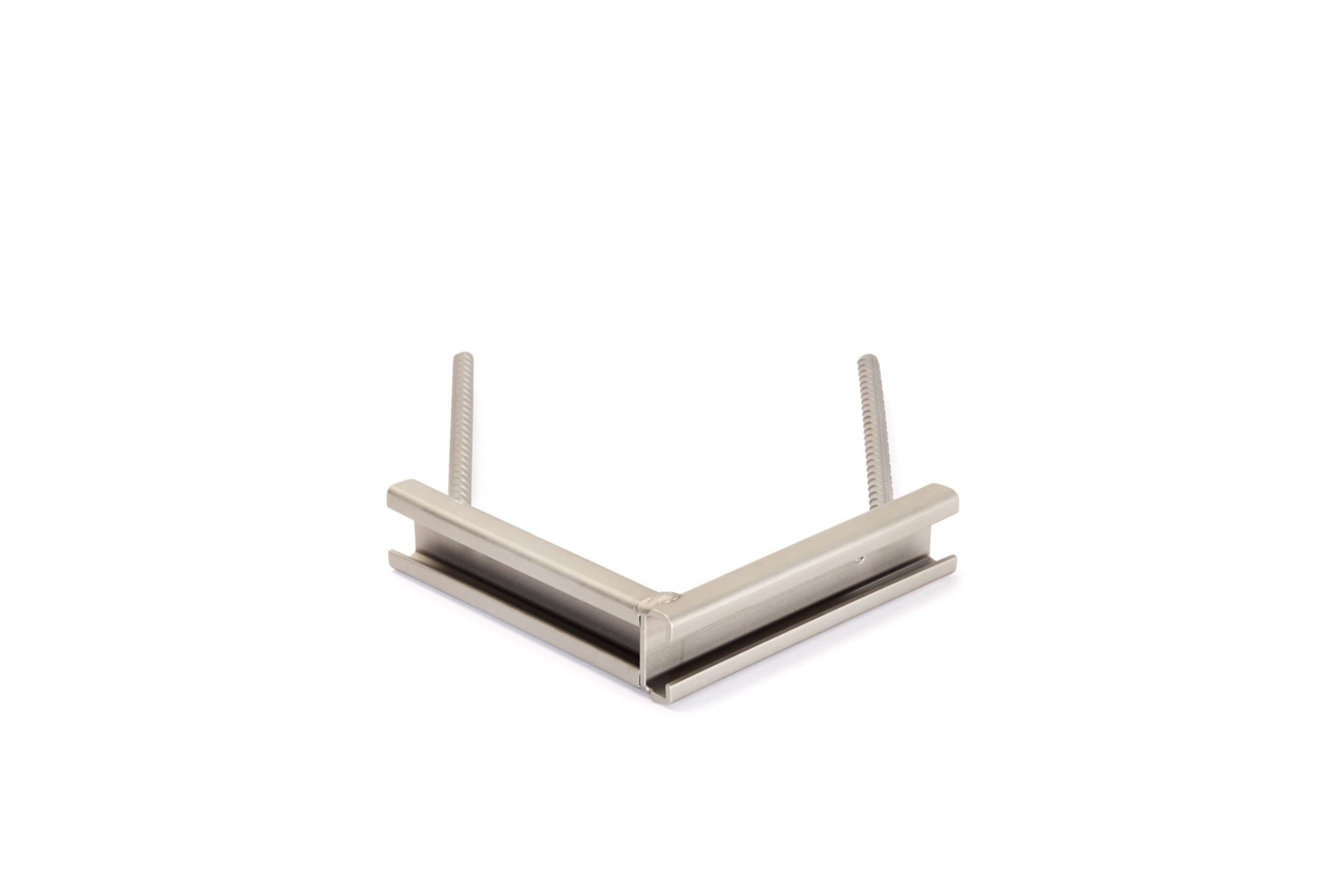

JORDAHL railing fastening corners K38/17

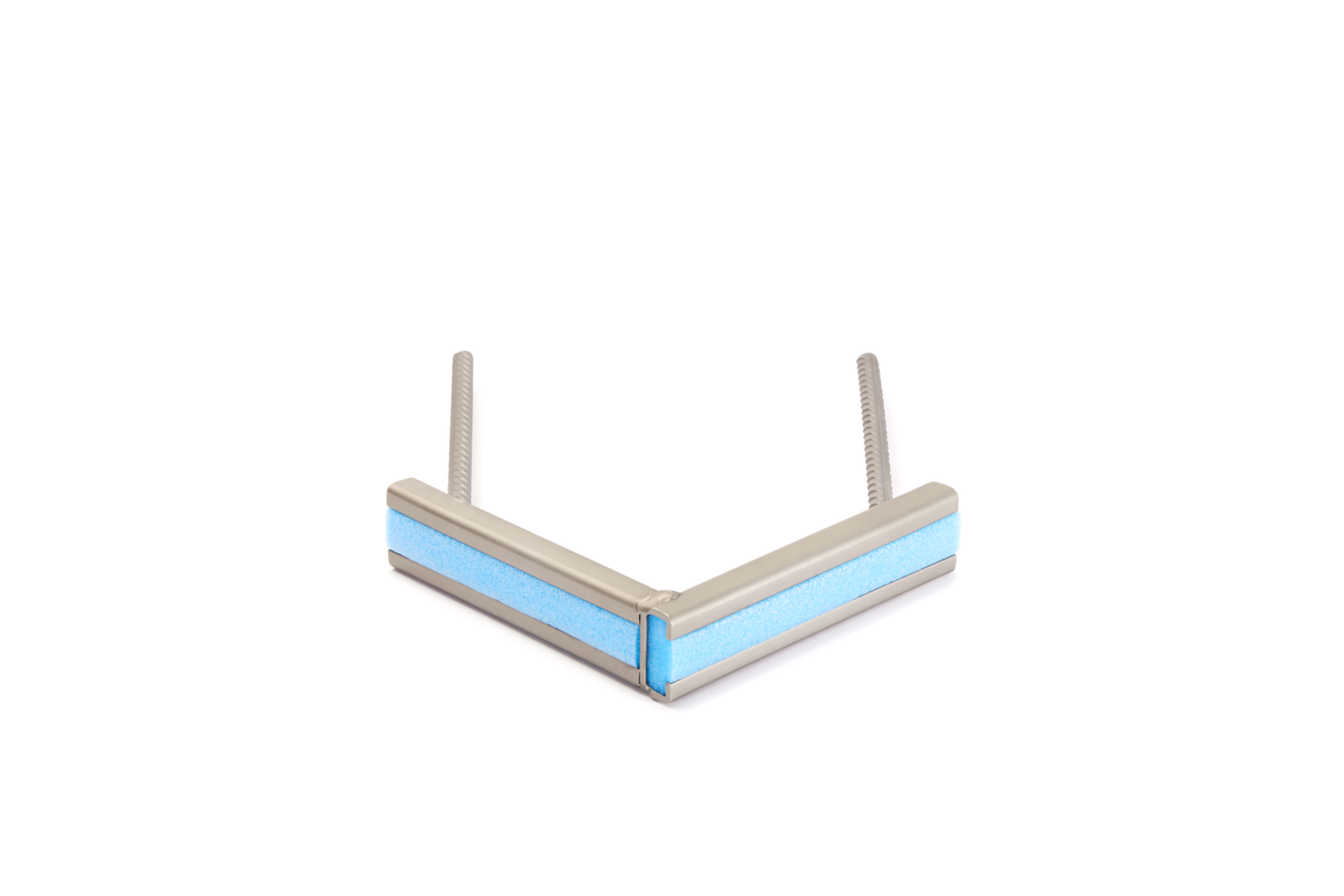

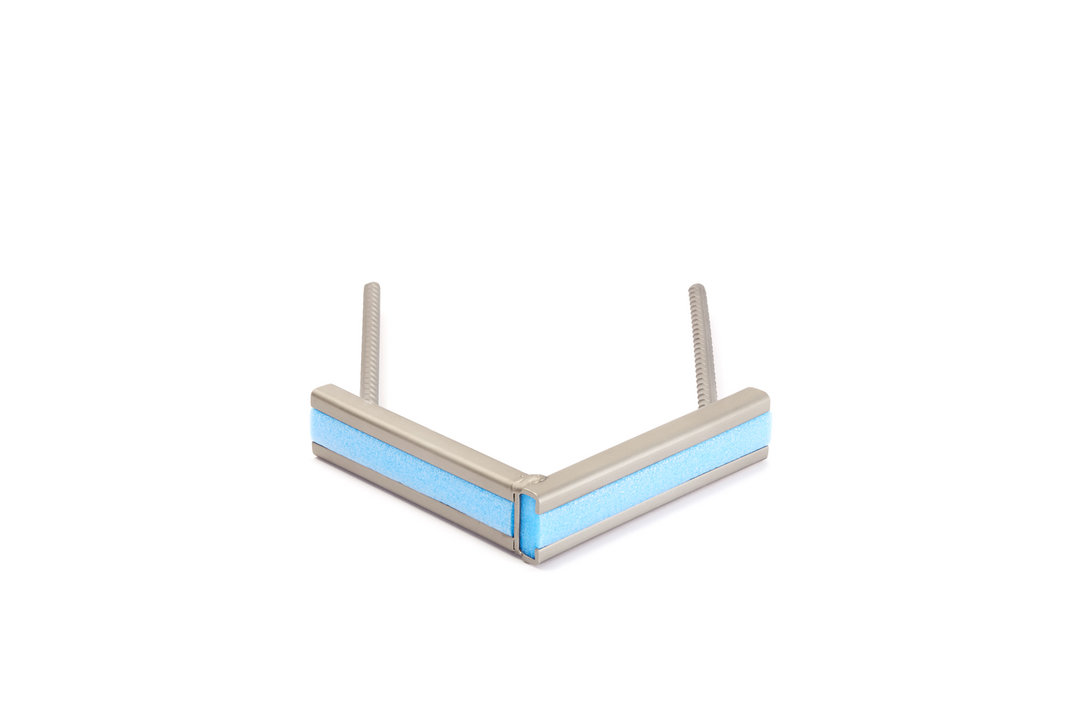

The railing fastening channel JGB K 38/17 Corners is made of hot-dip galvanised steel (fv) for indoor use or stainless steel (A4) for outdoor use. The railing fastening channel has a static load-bearing capacity of the normal force (NRd) of kN and transverse force (VRd) of kN. It is available in lengths of 100 to 250 mm and is paired with the bolts JH M12 - JH M16. The profile is 38 mm wide and 17 mm high. The filling is made of polyethylene (PE).

Art.-Nr.
GBK3817-EG170 FVK
profile height
17 mm
profile width
38 mm
length
170 mm
Material strength profile
3 mm
Number of anchors
2 pcs
Weight per storage unit
0.900 kg
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • GBK3817-EG170 FVK
    JORDAHL railing fastening corners K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    170 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.900 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • GBK3817-EG170 A4K
    JORDAHL railing fastening corners K38/17
    profile height
    17 mm
    profile width
    38 mm
    length
    170 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.829 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link
