Art.-Nr. 211600018984

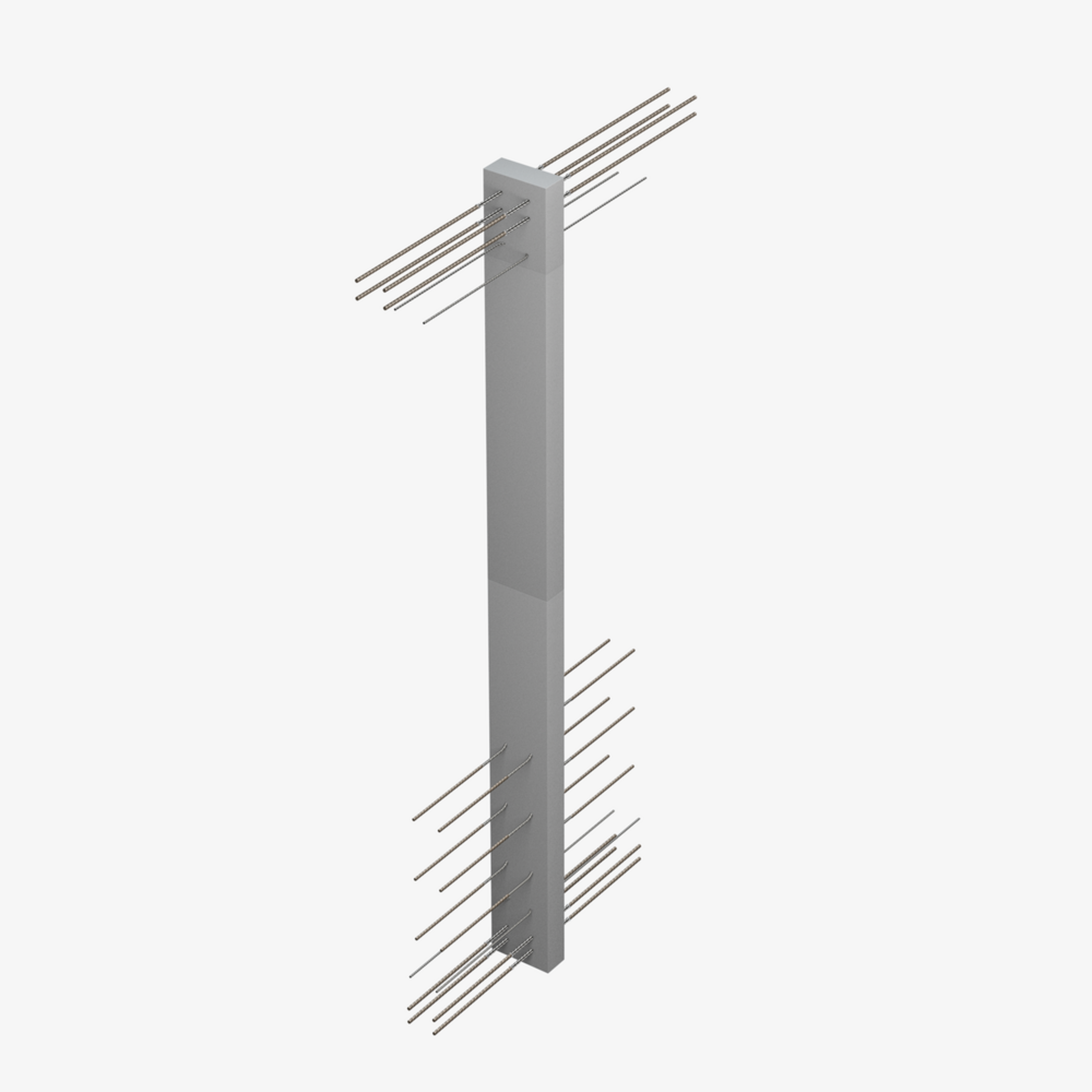

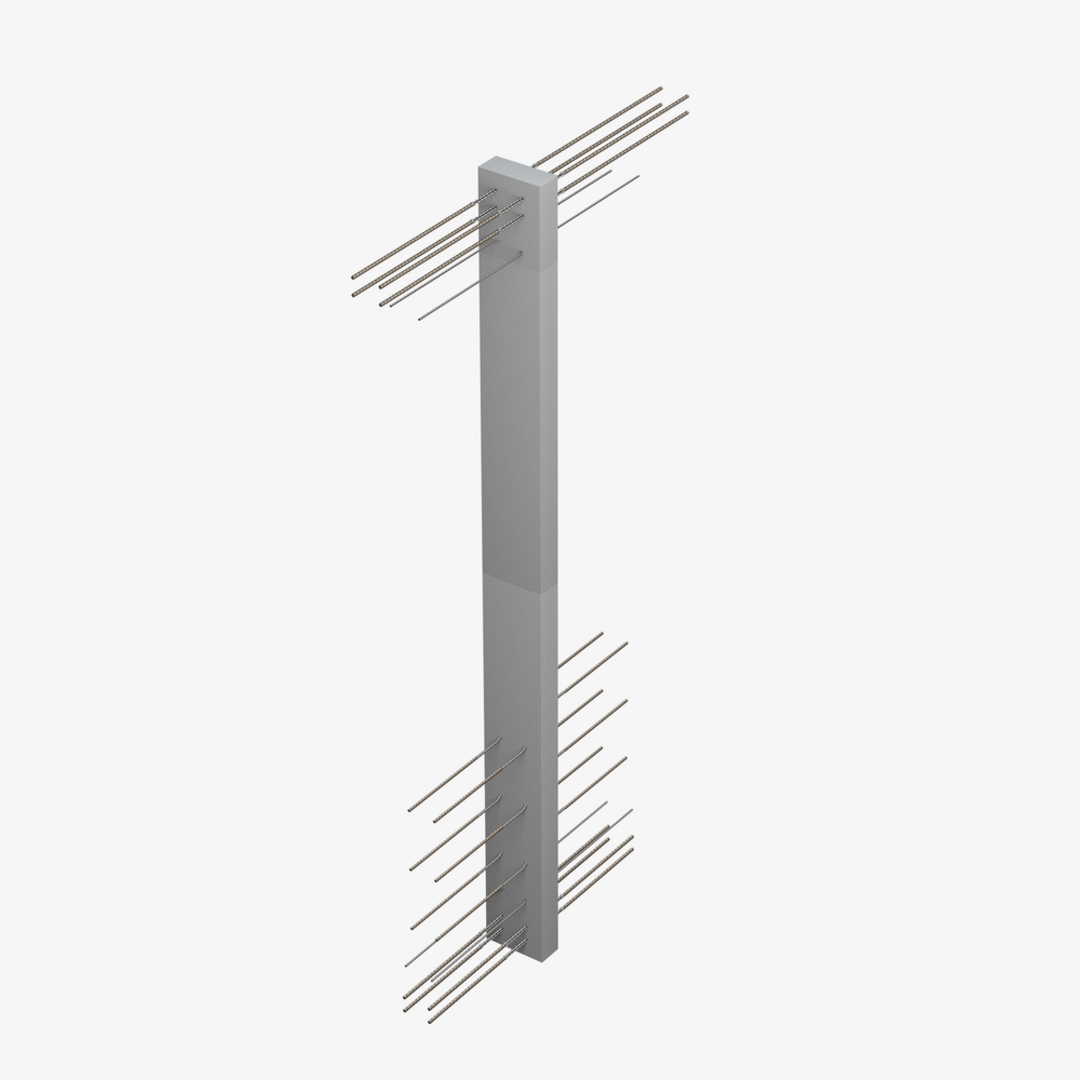

ISOPRO® IPTW is a thermally insulated connection with an 80 mm insulating body for connecting cantilevered reinforced concrete walls with storey walls. It is suitable for transmitting negative moments, positive shear forces and horizontal forces. The stainless steel rebar is resistant to corrosion. It complies with fire protection requirements: ISOPRO® IPTW is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element dimensions and fire protection version when ordering.
G
Weight per storage unit
de
en
Valid from February 1, 2025, updated version from 27/09/2025.
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120
ZIP, 53.31 MB
DownloadDownload
de
en
Declaration of Performance for ISOPRO® thermal insulation elements
de
en
ru
Technical Information
de
en
Installation instruction for ISOPRO® IP
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
