Variants
Article
G
Weight per storage unit
- 212300025050
IPQQZ 90Weight per storage unit15.380 kg
Art.-Nr. 212300025050
IPQQZ 90

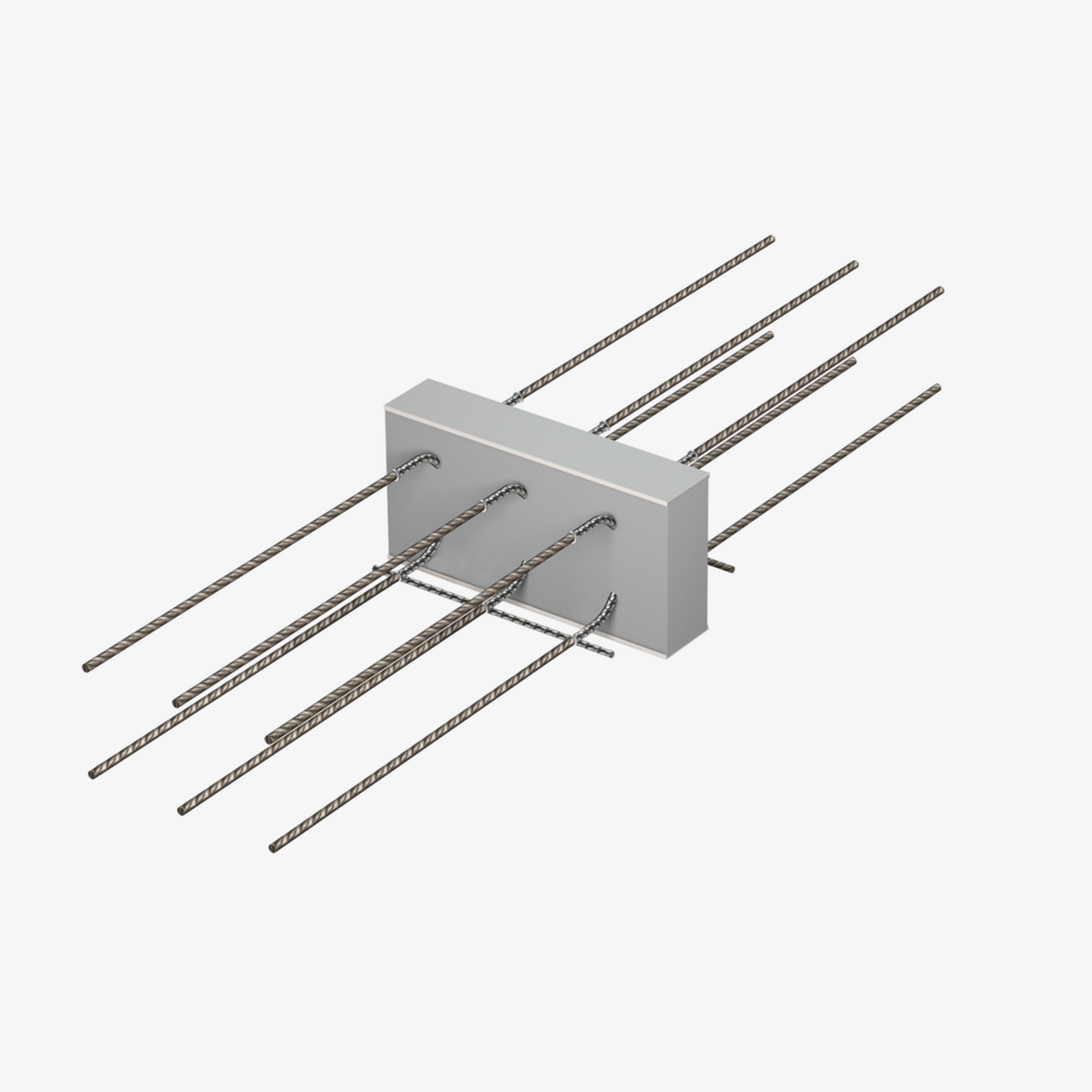

ISOPRO® IPQQZ is a thermally insulated slab connection with an 80 mm insulating body for the tension-free transmission of positive and negative shear forces in supported reinforced concrete components with uplifting loads and for punctual force transmission. The stainless steel rebar is resistant to corrosion. For the purpose of tension-free support, this item does not have a pressure component. It complies with fire protection requirements: ISOPRO® IPQQZ is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.
Type testing ISOPRO® 120 thermal insulation element
Test report no. 4117-5076 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.
- Art.-Nr.
- 212300025050
- Weight per storage unit
- 15.380 kg
European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Typenprüfung: 4117-5076
Details
- Approved throughout Europe by ETA-17/0466
Tender texts
Downloads
de
en
ru
de
en
de
de
en
de
de
en
de
en
ISOPRO® Thermal insulation elements - Technical information
Technical Information
Installation instructions ISOPRO® Thermal insulation
Installation instruction for ISOPRO® IP
Type Approval of ISOPRO® Thermal Insulation Elements
Test report No. 4117-5076 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.
PDF (8.47 MB)
DownloadDownload
European Technical Assessment (ETA) ISOPRO®
ETA-17/0466
Construction Approval ISOPRO®
The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 1 July 2026.
PDF (3.85 MB)
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance for ISOPRO® thermal insulation elements
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
Planner software ISODESIGN 1.4.4
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120
ZIP (53.31 MB)
DownloadDownloadIncluded accessories
