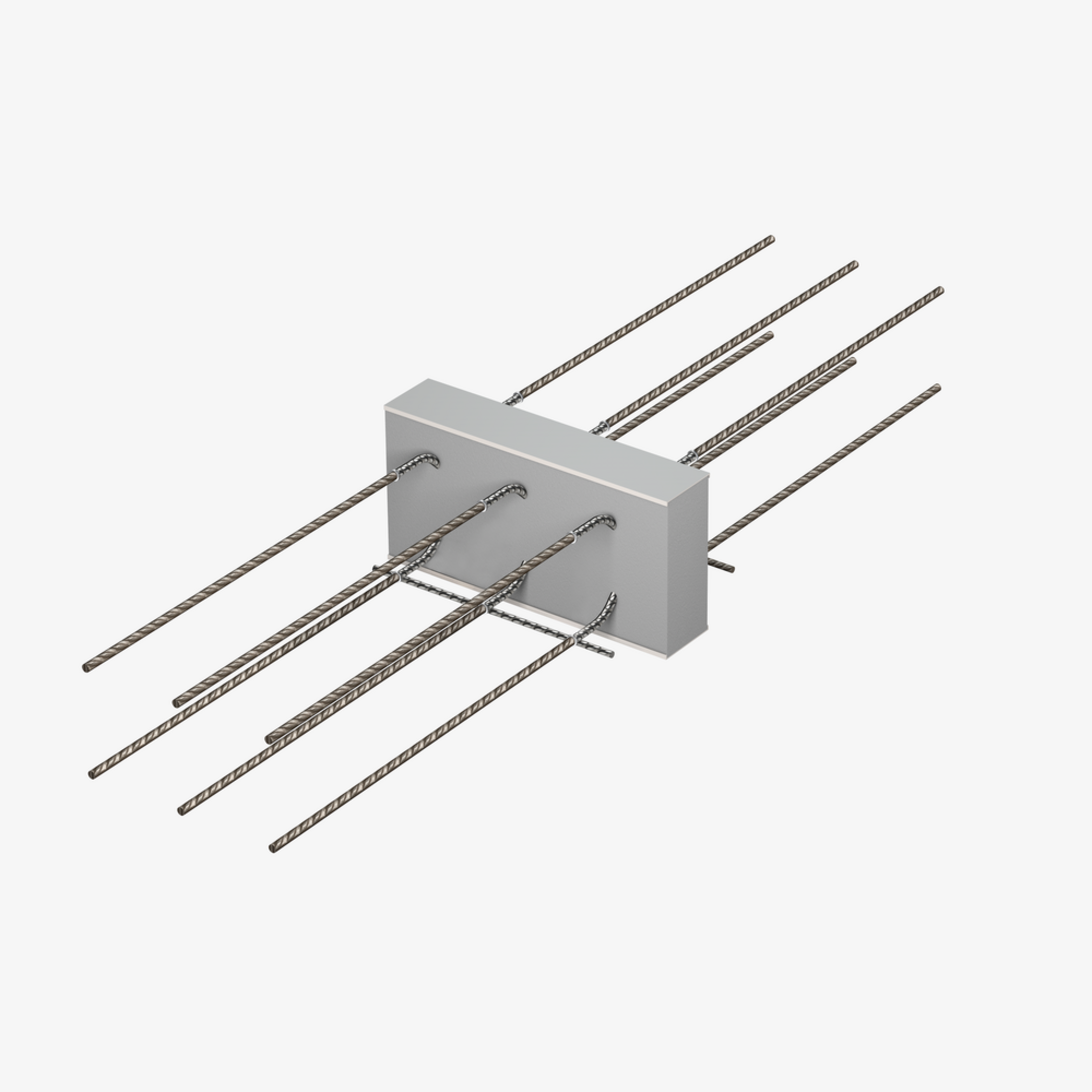

ISOPRO® IPQQZ
Tension-free thermally insulated slab connection for punctual transmission of positive and negative shear forces
ISOPRO® IPQQZ is a thermally insulated slab connection with an 80 mm insulating body for the tension-free transmission of positive and negative shear forces in supported reinforced concrete components with uplifting loads and for punctual force transmission. The stainless steel rebar is resistant to corrosion. For the purpose of tension-free support, this item does not have a pressure component. It complies with fire protection requirements: ISOPRO® IPQQZ is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.
Type testing ISOPRO® 120 thermal insulation element
Test report no. 4117-5076 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.
Details
- Approved throughout Europe by ETA-17/0466
Tender texts
Downloads
en
de
ru
en
de
de
en
de
de
en
de
pl
en
de
ISOPRO® Thermal insulation elements - Technical information
Technical Information
Installation instruction ISOPRO® IPTQQ
Installation instruction for balcony insulation element ISOPRO® IPTQQ
Type Approval of ISOPRO® Thermal Insulation Elements
Test report No. 4117-5076 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.
PDF (8.47 MB)
DownloadDownload
European Technical Assessment (ETA) ISOPRO®
ETA-17/0466
Construction Approval ISOPRO®
The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 19 May 2031.
PDF (1,016.09 KB)
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance No. DOP_ISOPRO_0526_EN
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
Planner software ISODESIGN
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120, version 1.4.4
ZIP (53.31 MB)
DownloadDownloadIncluded accessories
Anzahl:
Services: From planning to utilisation
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
