Art.-Nr. 210300018952

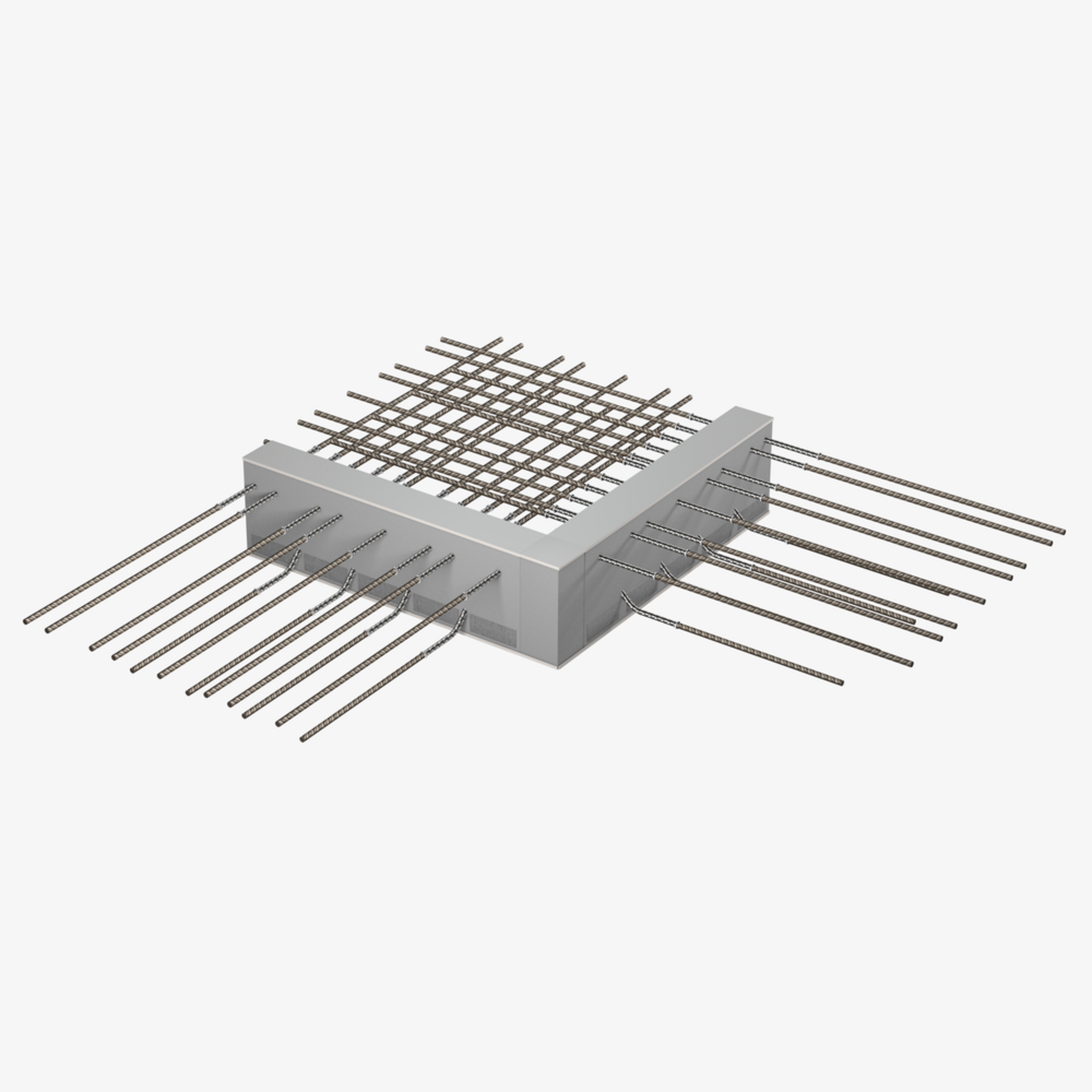

ISOPRO® IP Corner is a thermally insulated cantilever slab connection with an 80 mm insulating body and integrated suspension reinforcement on the balcony side for connecting cantilevered reinforced concrete components at external corners. It is suitable for transmitting negative moments and positive shear forces. The stainless steel rebar is resistant to corrosion. The thrust bearing is made of special concrete. The partial elements left IP EL and right IP ER are also available separately. It complies with fire protection requirements: ISOPRO® IP Corner is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, concrete cover, element height and fire protection version when ordering.
G
Weight per storage unit
de
en
Valid from February 1, 2025, updated version from 27/09/2025.
de
en
ETA-17/0466
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120
ZIP, 53.31 MB
DownloadDownload
de
en
Declaration of Performance for ISOPRO® thermal insulation elements
de
en
ru
Technical Information
de
en
Installation instruction for ISOPRO® IP
de
The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 1 July 2026.
PDF, 3.85 MB
DownloadDownloadAnzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
