HED-S

Shear dowel

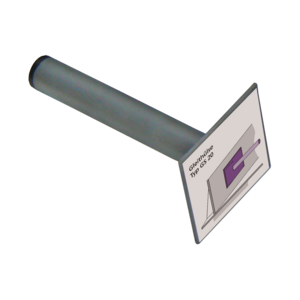

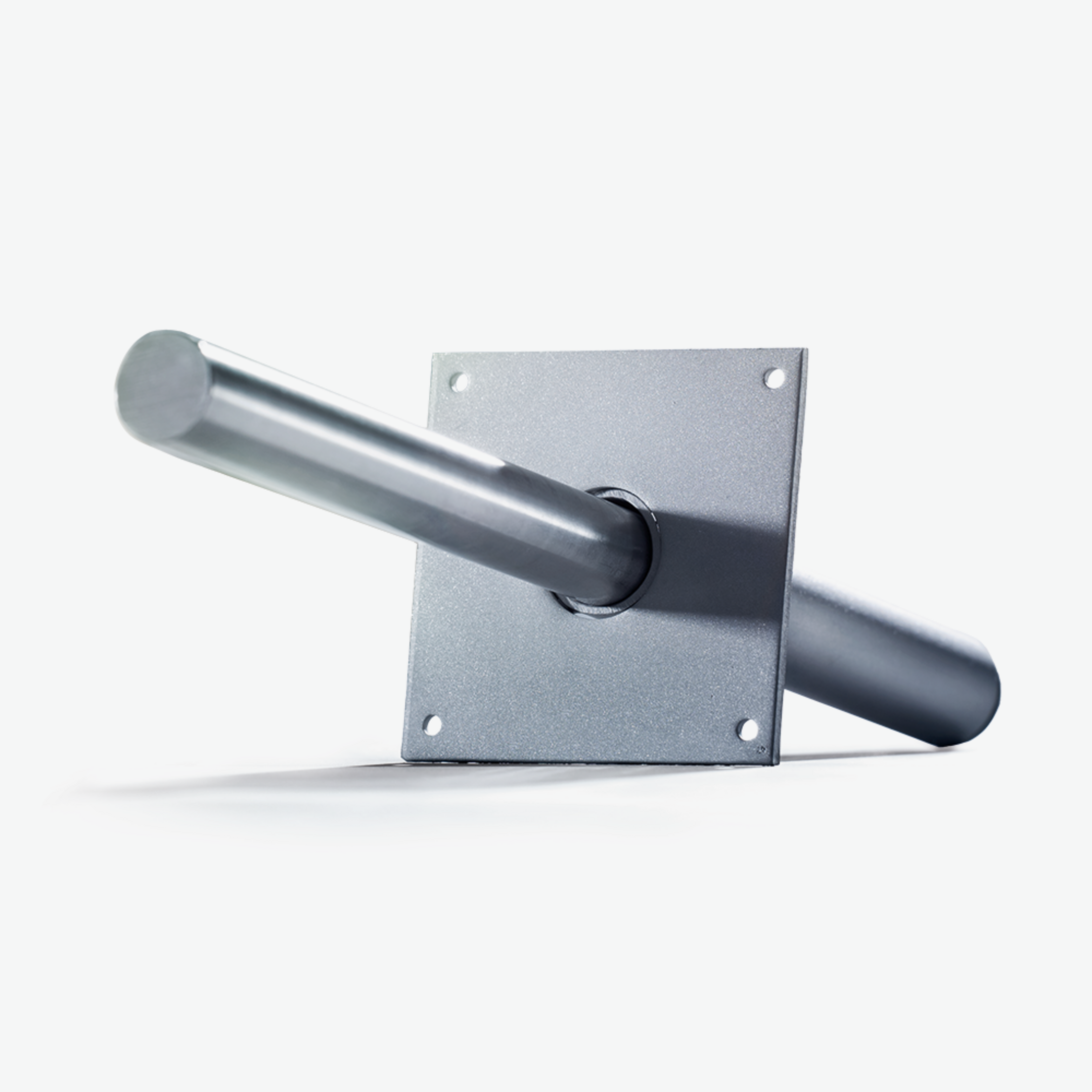

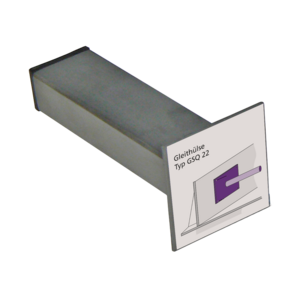

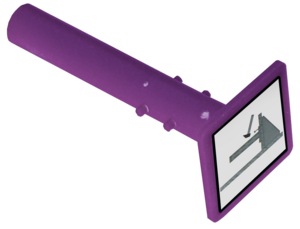

The shear dowel HED-S consists of a hot-dip galvanised or stainless steel dowel and a sleeve. When combined with the GS/GSQ stainless steel sliding sleeve or GK plastic sliding sleeve, the dowel can be shifted at right angles to the joint and transmits shear forces in a longitudinal and/or transverse direction. The shear dowel HED-S is available in standard lengths of 300 to 500 mm for various diameters. For example, it can absorb rated resistances for the load-bearing capacity of steel of up to 17.5 kN in joints up to 40 mm wide. Other lengths and diameters are available on request.

Get in touchDownload datasheet

Variants

Article

L

length

D

Diameter (mm)

G

Weight per storage unit

  • 550100003854
    Schubdor HED S 20 500 V4A
    length
    500 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    1.260 kg
    More information
  • 550100003855
    Schubdor HED S 20 500 verz
    length
    500 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    1.230 kg
    More information
  • 550100003856
    Schubdor HED S 20 300 V4A
    length
    300 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.750 kg
    More information
  • 550100003857
    Schubdor HED S 20 300 verz
    length
    300 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.740 kg
    More information
  • 550100003860
    Schubdor HED S 22 500 V4A
    length
    500 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    1.520 kg
    More information
  • 550100003861
    Schubdor HED S 22 500 verz
    length
    500 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    1.490 kg
    More information
  • 550100003862
    Schubdor HED S 22 300 V4A
    length
    300 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.910 kg
    More information
  • 550100003863
    Schubdor HED S 22 300 verz
    length
    300 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.900 kg
    More information
  • 550100003866
    Schubdor HED S 25 500 V4A
    length
    500 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    1.960 kg
    More information
  • 550100003867
    Schubdor HED S 25 500 verz
    length
    500 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    1.930 kg
    More information
  • 550100003868
    Schubdor HED S 25 300 V4A
    length
    300 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    1.180 kg
    More information
  • 550100003869
    Schubdor HED S 25 300 verz
    length
    300 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    1.160 kg
    More information
  • 550100003872
    Schubdor HED S 30 500 V4A
    length
    500 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    2.830 kg
    More information
  • 550100003873
    Schubdor HED S 30 500 verz
    length
    500 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    2.770 kg
    More information
  • 550100003874
    Schubdor HED S 30 350 V4A
    length
    350 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    1.980 kg
    More information
  • 550100003875
    Schubdor HED S 30 350 verz
    length
    350 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    1.940 kg
    More information

Details

  • Uniform transmission of small to medium shear forces across structural joints to avoid displacement and cracks
  • Suitable for movements in longitudinal and/or transverse direction
  • No cracking in concrete
  • No need to drill through the formwork or subsequently drill through concrete when using slide sleeves
  • Optimum anti-twist protection during concreting

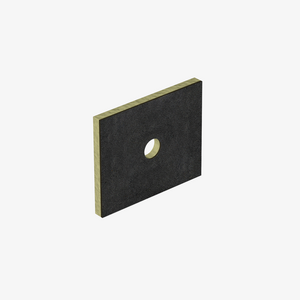

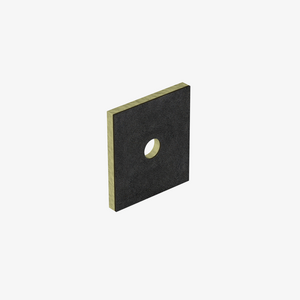

  • Fire resistant in combination with BRM or BRMQ fire protection collars
  • Transverse displacements of the panels absorbed by special sliding sleeves made of plastic or stainless steel
  • Easy to assemble
  • Efficient corrosion protection
