GK

Slide sleeve

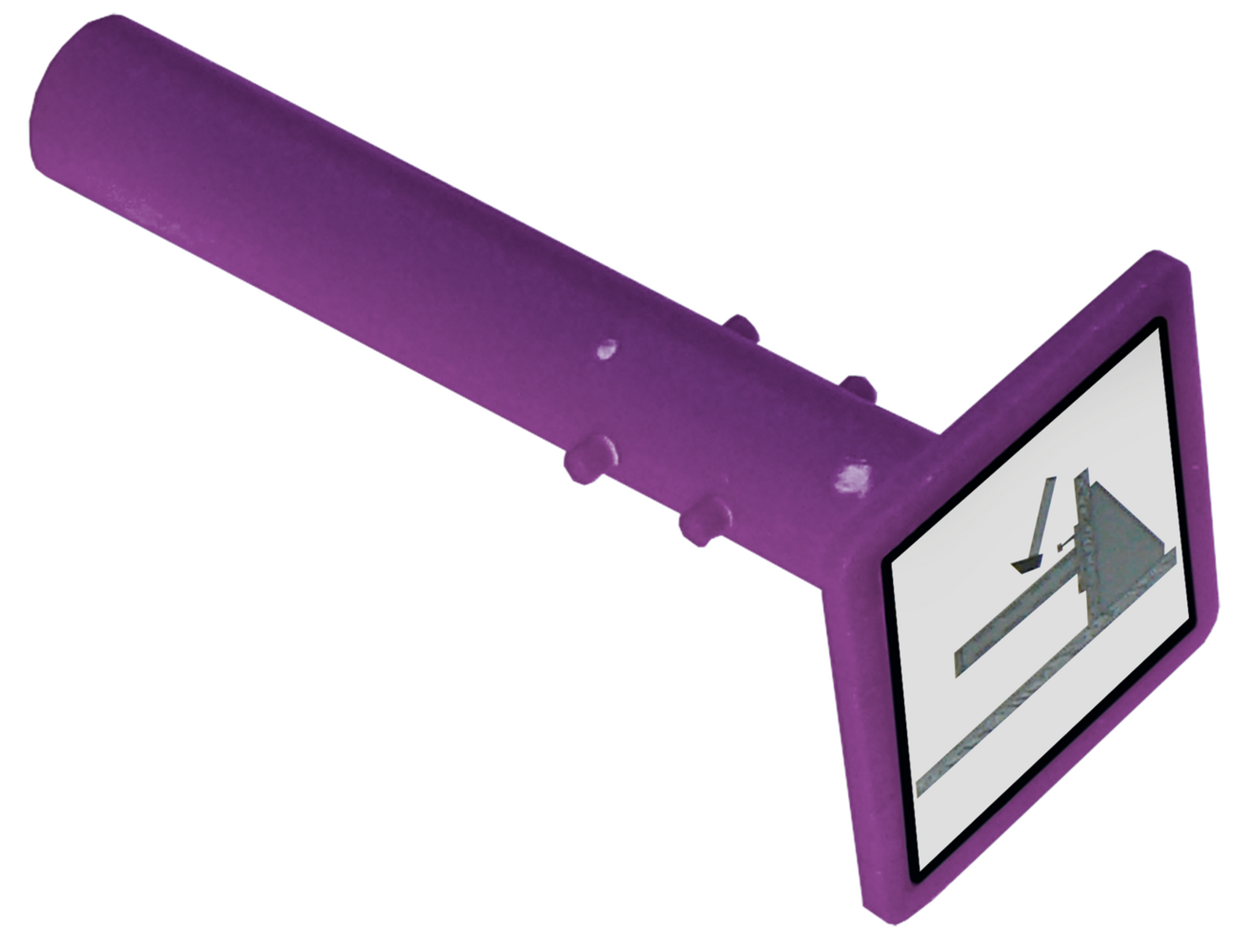

The sliding sleeve GK is a necessary accessory for the shear dowel HED-S in the stainless steel version. Using the sleeve eliminates the need for drilling through the formwork or subsequent concrete drilling. The cost-saving sliding sleeve GK is made of plastic and enables the dowel to move longitudinally in the sliding sleeve. It is available in lengths of up to 320 mm for different diameters.

Get in touchDownload datasheet

Variants

Article

L

length

D

Diameter (mm)

G

Weight per storage unit

  • 550500004970
    Gleithülse GK 20
    length
    160 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.057 kg
    More information
  • 550500004971
    Gleithülse GK 20 500
    length
    265 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.060 kg
    More information
  • 550500004973
    Gleithülse GK 22
    length
    160 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.040 kg
    More information
  • 550500004974
    Gleithülse GK 22 500
    length
    265 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.065 kg
    More information
  • 550500004976
    Gleithülse GK 25
    length
    160 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    0.036 kg
    More information
  • 550500004977
    Gleithülse GK 25 500
    length
    265 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    0.085 kg
    More information
  • 550500004979
    Gleithülse GK 30
    length
    185 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    0.055 kg
    More information
  • 550500004980
    Gleithülse GK 30 500
    length
    265 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    0.090 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

      • de

      Expert Report Fire Protection JDSD and HED

      Expert Report

      PDF (635.62 KB)

      DownloadDownload

      • de

      • en

      Technical Information Shear Dowels HED

      Technical Information

      PDF

      Choose languageChoose language

      Technical Information Shear Dowels HED

      Choose language to download

      • de

      Price list 2026 Shell construction / facade

      Valid from February 1st, 2026

      PDF (16.57 MB)

      DownloadDownload
