GS

Slide sleeve

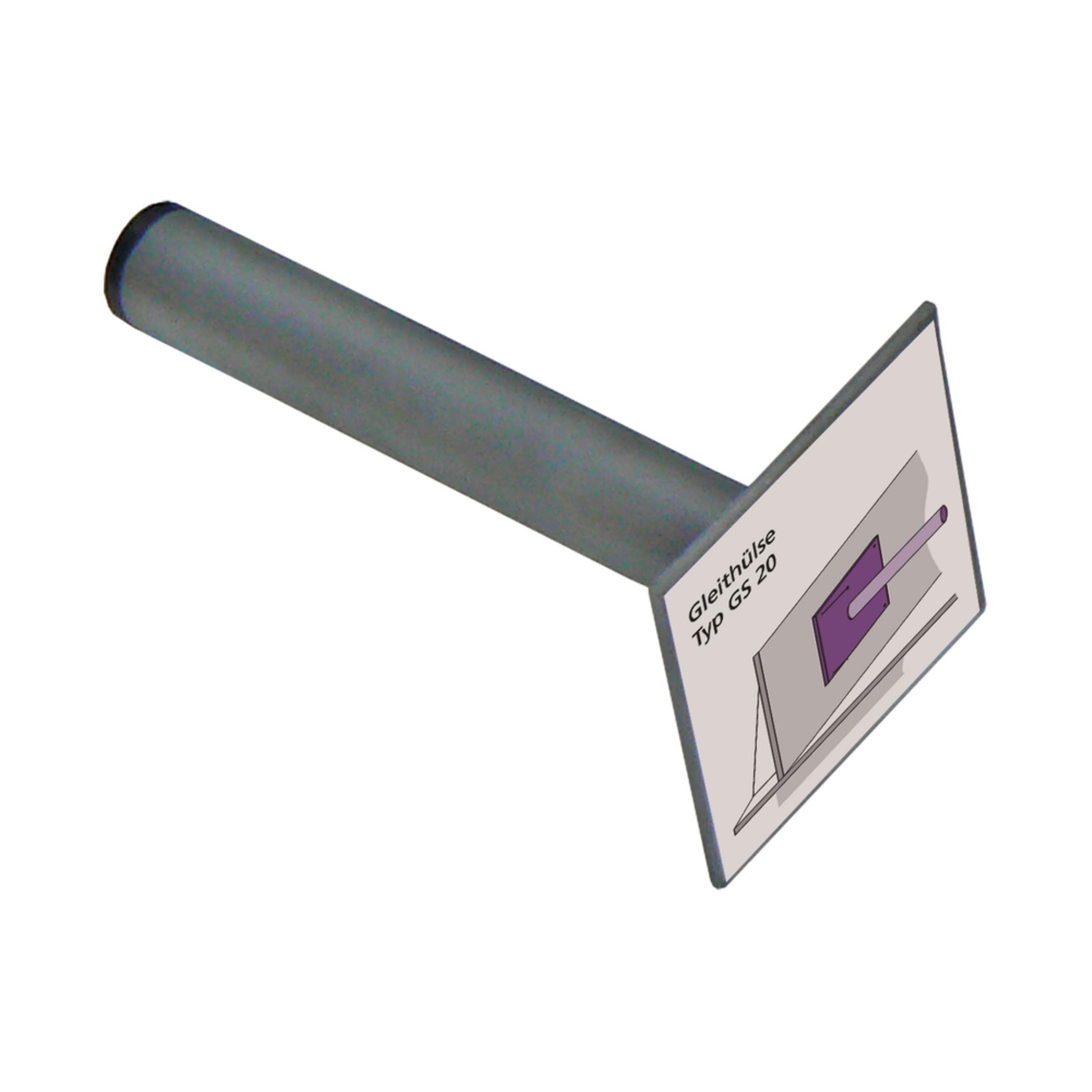

The sliding sleeve GS is a necessary accessory for the shear dowel HED-S in the stainless steel version. Using the sleeve eliminates the need for drilling through the formwork or subsequent concrete drilling. The sliding sleeve GS is made of stainless steel (A4) and enables the dowel to move longitudinally in the sliding sleeve. The standard lengths are 160 or 265 mm. Other lengths are available on request.

Get in touchDownload datasheet

Variants

Article

L

length

D

Diameter (mm)

G

Weight per storage unit

  • 550600012748
    Gleithülse GS 20
    length
    160 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.324 kg
    More information
  • 550600012749
    Gleithülse GS 20 500
    length
    265 mm
    Diameter (mm)
    20 mm
    Weight per storage unit
    0.610 kg
    More information
  • 550600012750
    Gleithülse GS 22
    length
    160 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.343 kg
    More information
  • 550600012751
    Gleithülse GS 22 500
    length
    265 mm
    Diameter (mm)
    22 mm
    Weight per storage unit
    0.630 kg
    More information
  • 550600012752
    Gleithülse GS 25
    length
    160 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    0.420 kg
    More information
  • 550600012753
    Gleithülse GS 25 500
    length
    265 mm
    Diameter (mm)
    25 mm
    Weight per storage unit
    0.690 kg
    More information
  • 550600012754
    Gleithülse GS 30
    length
    185 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    0.423 kg
    More information
  • 550600012755
    Gleithülse GS 30 500
    length
    265 mm
    Diameter (mm)
    30 mm
    Weight per storage unit
    0.790 kg
    More information
