BODO NA

Cable outlet, dummy

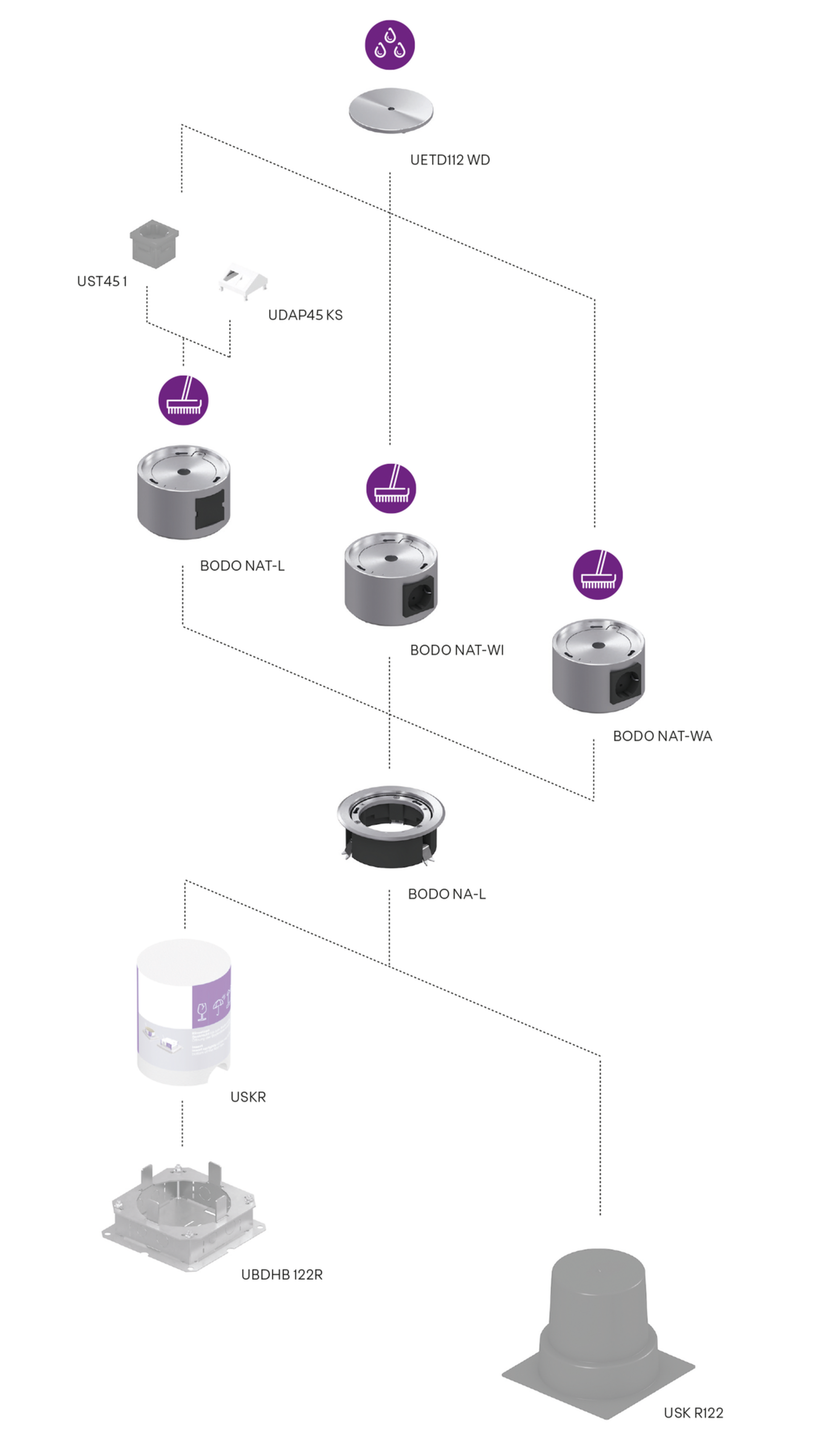

BODO NA components are round dummy cable outlets with floor covering protection frame and cover that can be closed using a bayonet catch. The BODO NA components can be supplemented with a tube outlet and are suitable for installation in screed and raised or false floor openings in wet-cleaned or dry-cleaned rooms with high traffic loads. The cover of the cable outlets is made of aluminium with an aluminium finish and the frames are made of plastic. The IP protection rating of the outlets is IP 66 in an unused condition and IP 20 when used. They have installation dimensions of 122 mm and a minimum installation height of 87 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

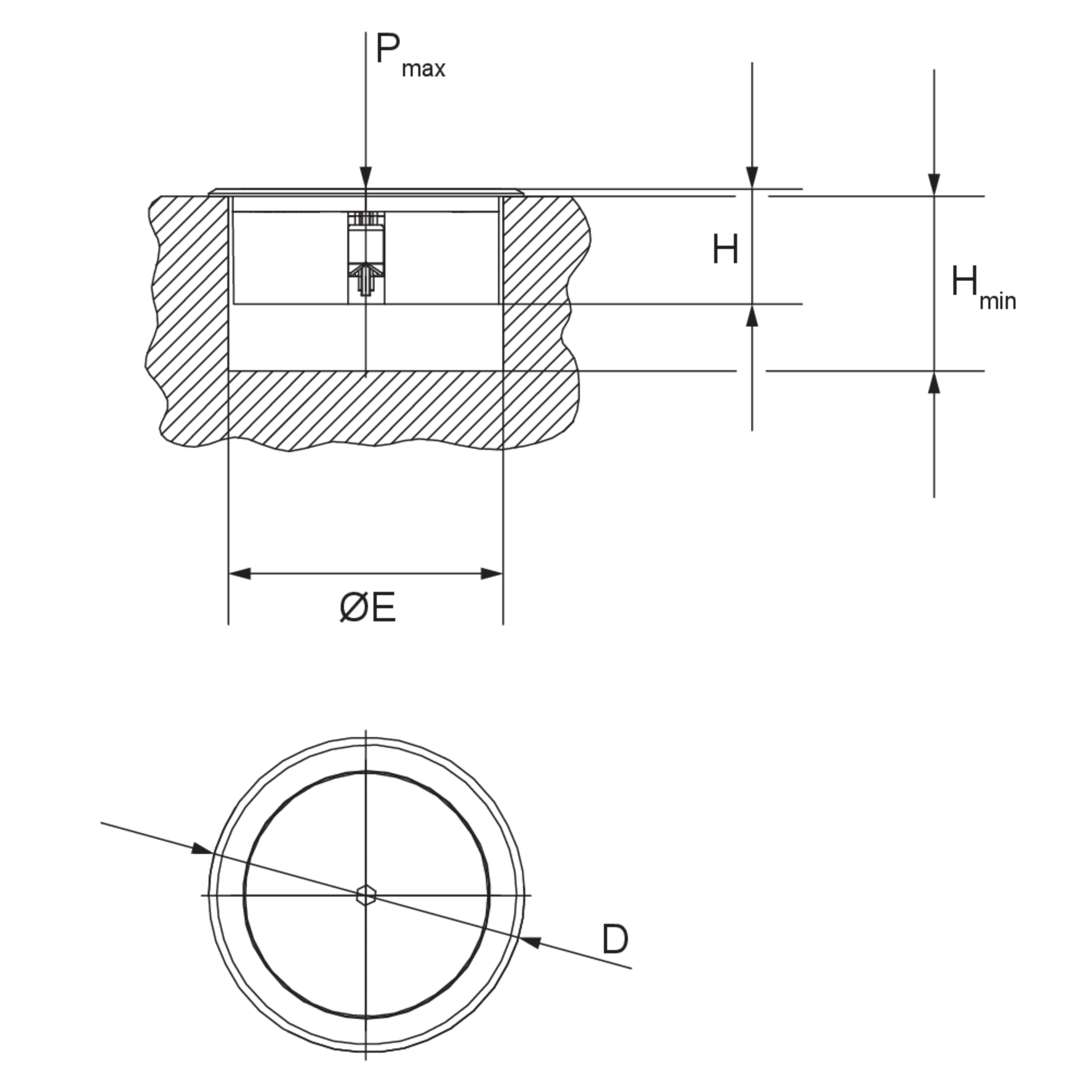

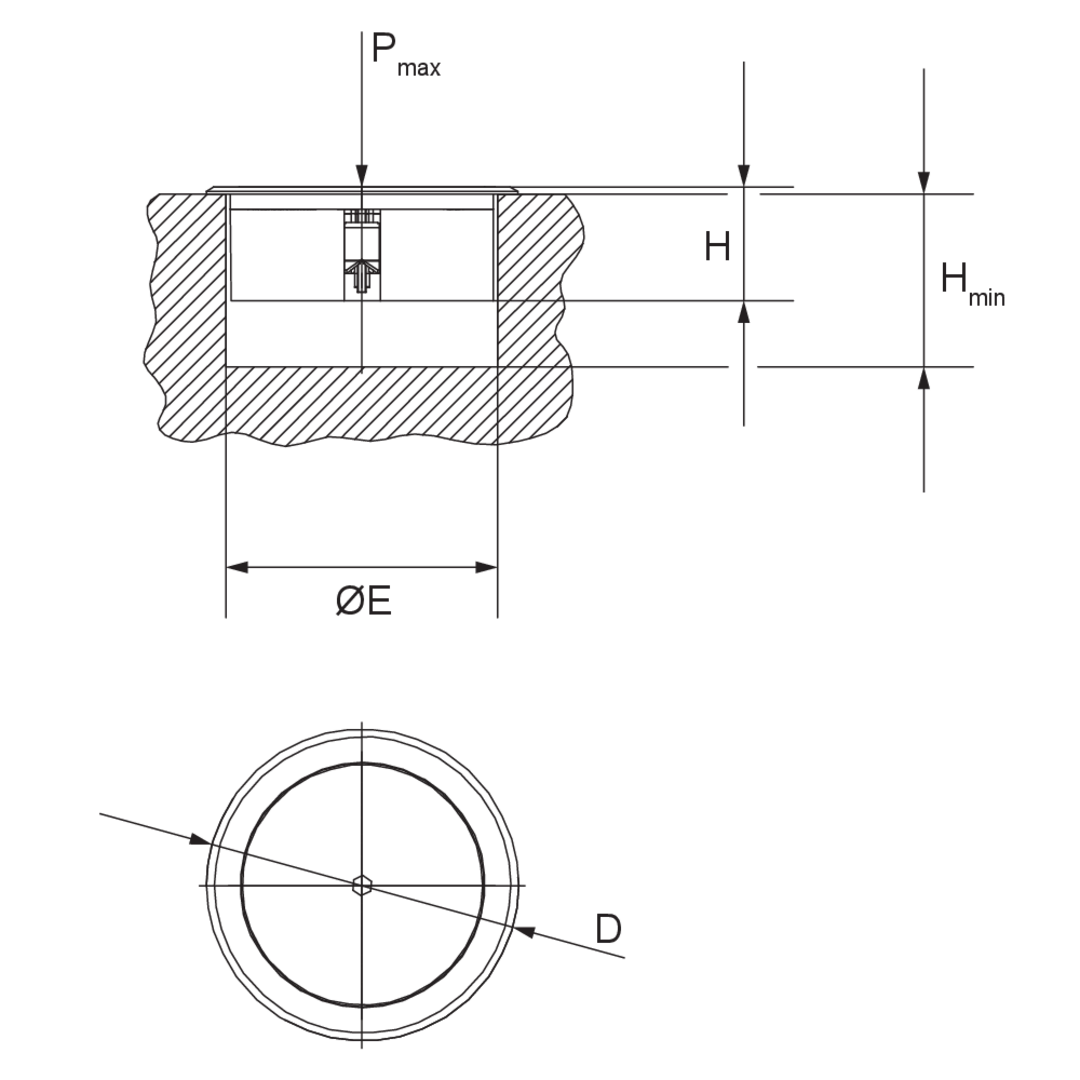

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

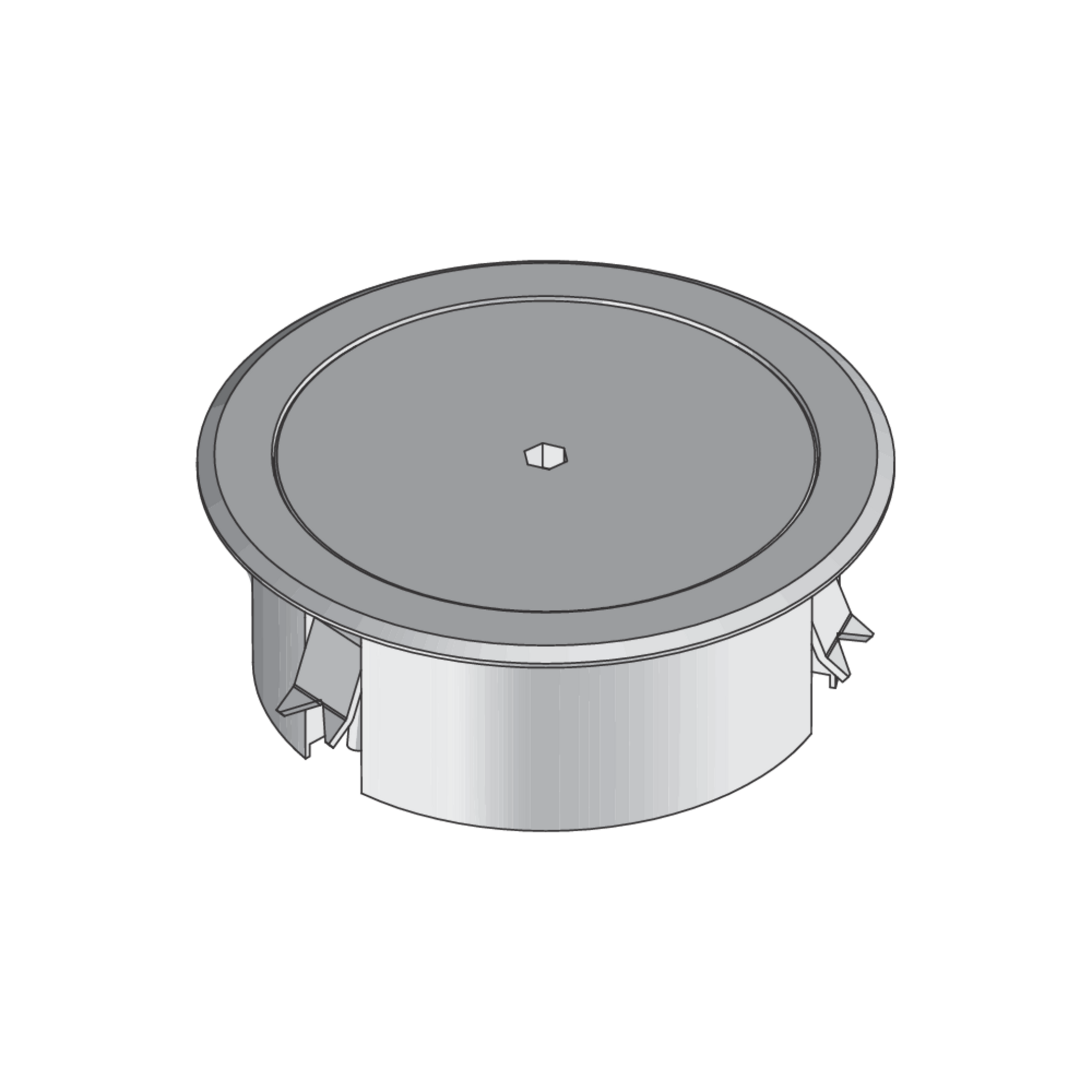

  • BODO NA-L
    single outlet,
    height
    51 mm
    minimum installation height
    78 mm
    maximum load
    15.00 kN
    Installation diameter
    120 mm
    fitting dimension round
    122 mm
    color
    aluminium
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.295 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With test stamp dia. 130 mm: 15 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP, 13.12 MB

    DownloadDownload
