BODO T

Single outlet with single floor socket, dry-clean, round

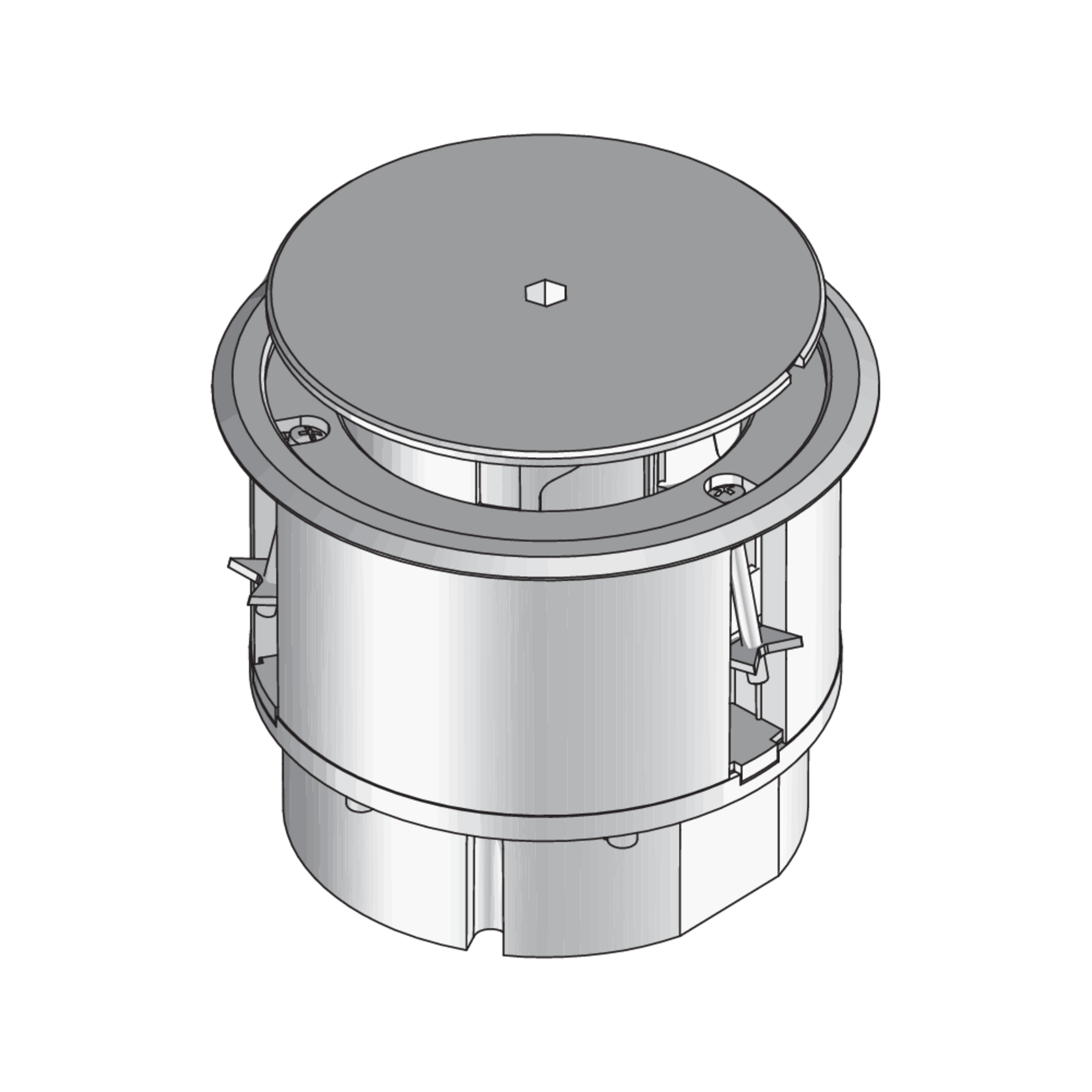

The BODO T components are round single outlets with a protective frame for the floor covering. They are equipped with a rotating cover with a cable outlet, a mounting box with a strain relief device, a Schuko socket and an RJ45 data dummy cover. The single outlets are suitable for dry-cleaned rooms with office traffic loads and can be installed in screed and raised or false floor openings. The product is made of high quality plastic (ABS copolymer) and is available in iron grey or graphite black. BODO T has an installation dimension of 122 mm and a minimum installation height of 102 mm.

dry maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

polyamide

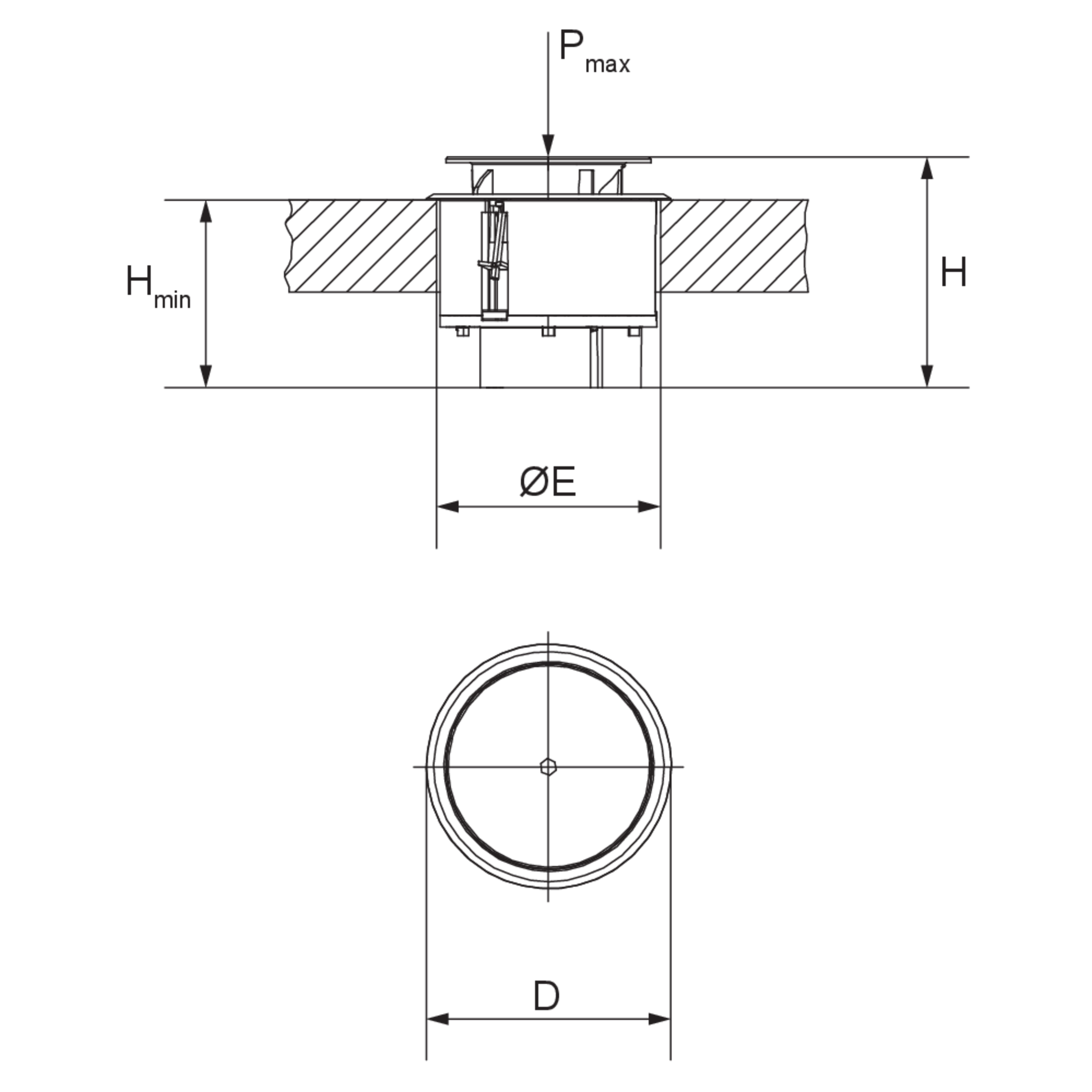

Article

H

height

Hmin

minimum installation height

D

Diameter (mm)

Pmax

maximum load

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

RAL

RAL-Nummer

Included accessories
  • BODO T-G
    Floor socket, round
    height
    125 mm
    minimum installation height
    102 mm
    Diameter (mm)
    140 mm
    maximum load
    1.50 kN
    fitting dimension round
    122 mm
    color
    Iron gray
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    0.309 kg
    RAL-Nummer
    7011
    Included accessories
    More information
  • BODO T-S
    Floor socket, round
    height
    125 mm
    minimum installation height
    102 mm
    Diameter (mm)
    140 mm
    maximum load
    1.50 kN
    fitting dimension round
    122 mm
    color
    Graphite black
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    0.309 kg
    RAL-Nummer
    9011
    Included accessories
    More information

Details

  • dry maintained
  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13 mm: 1.5 kN
