GID

Mesh cable tray cover

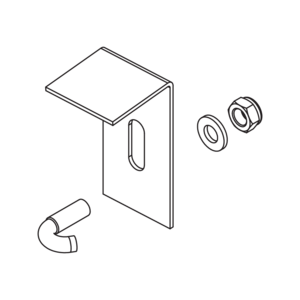

The mesh cable tray covers GID are suitable for mesh cable tray GI and protect it from dirt, contact and moisture. They are placed on top of the mesh cable trays without any further measures. If the covers are to be used outdoors, additional securing brackets to protect against wind are required. The mesh cable tray covers are 60 to 300 mm wide and have a standard length of 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

L

length

t

material thickness

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GID 06S
    Wire-mesh cable tray cover
    width
    77 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    3.247 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 12S
    Wire-mesh cable tray cover
    width
    137 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    4.660 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 20S
    Wire-mesh cable tray cover
    width
    217 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    6.550 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 30S
    Wire-mesh cable tray cover
    width
    317 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    8.910 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Steel, hot-dip galvanised

Article

B

width

L

length

t

material thickness

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GID 06F
    Wire-mesh cable tray cover
    width
    77 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    3.474 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 12F
    Wire-mesh cable tray cover
    width
    137 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    4.990 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 20F
    Wire-mesh cable tray cover
    width
    217 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    7.000 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 30F
    Wire-mesh cable tray cover
    width
    317 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    9.530 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

B

width

L

length

t

material thickness

G

Weight per storage unit

Geeignet für Funktionserhalt

  • GID 06E
    Wire-mesh cable tray cover
    width
    77 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    3.268 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 12E
    Wire-mesh cable tray cover
    width
    137 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    4.690 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 20E
    Wire-mesh cable tray cover
    width
    217 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    6.590 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • GID 30E
    Wire-mesh cable tray cover
    width
    317 mm
    length
    3000 mm
    material thickness
    1.00 mm
    Weight per storage unit
    8.960 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Details

  • Protects mesh cable trays against dirt, moisture, contact and UV radiation
  • Quick and easy assembly without tools
  • Suitable for indoor and outdoor use (when using the storm protection bracket)
