LGVB 60

Cable ladder vertical bend, height = 60 mm

The cable tray vertical bend LGVB 60 allows the direction of cable routing to be changed flexibly and vertically. They are suitable for cable ladders with rails 60 mm high and are 200 to 600 mm wide. The bend is pushed into the cable ladder and then bolted in place. The connection cable ladder is then inserted into the end of the formed part and also bolted in place. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

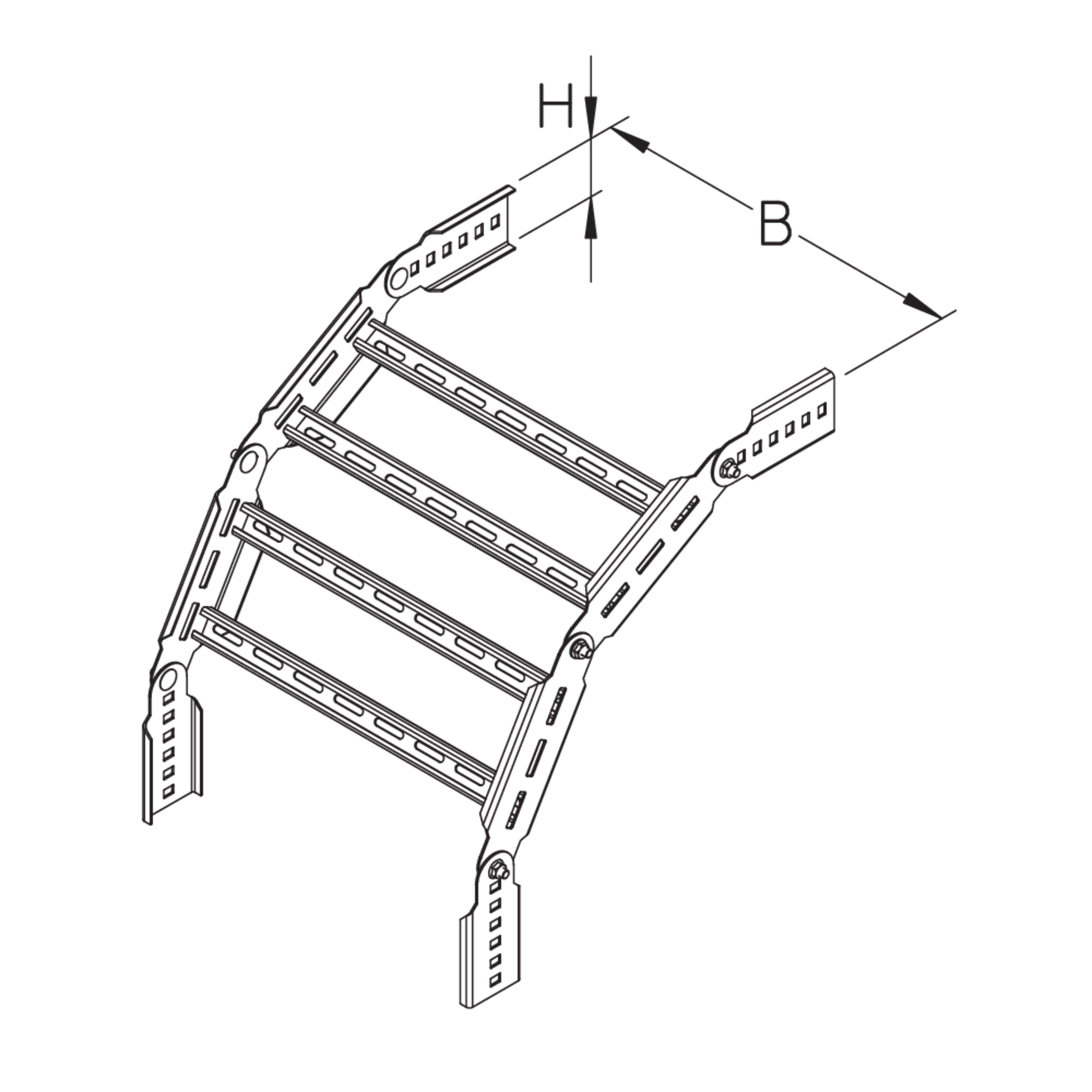

H

height

HH

Height

B

width

direction

Direction change

W

Angle

G

Weight per storage unit

  • LGVB 60-20F

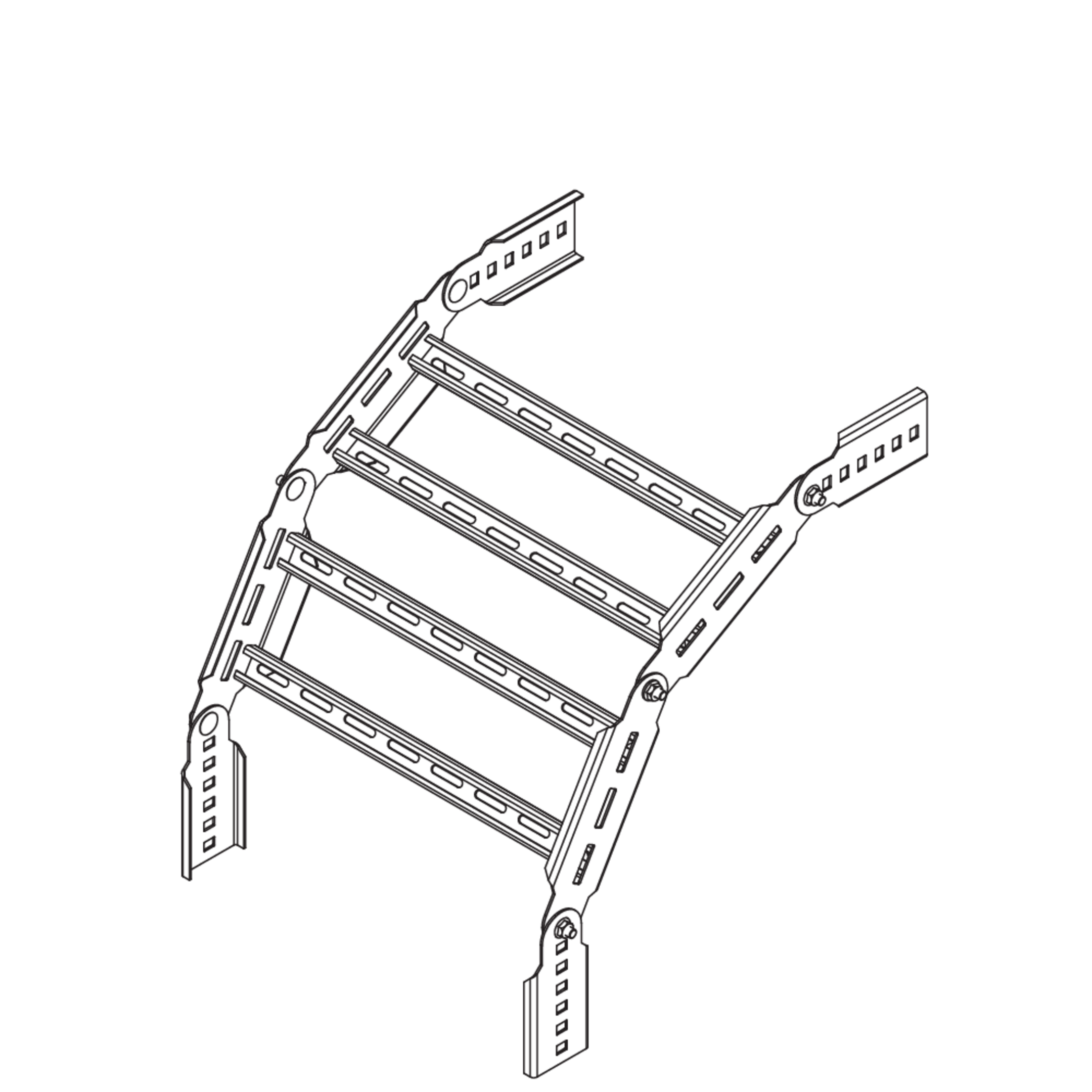

    Cable ladder vertical bend LGVB 60-20F
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    2.500 kg
    More information
  • LGVB 60-30F
    Cable ladder vertical bend LGVB 60-30F
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    2.800 kg
    More information
  • LGVB 60-40F
    Cable ladder vertical bend LGVB 60-40F
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.100 kg
    More information
  • LGVB 60-50F
    Cable ladder vertical bend LGVB 60-50F
    height
    60 mm
    Height
    60 mm
    width
    500 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.400 kg
    More information
  • LGVB 60-60F
    Cable ladder vertical bend LGVB 60-60F
    height
    60 mm
    Height
    60 mm
    width
    600 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.680 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

HH

Height

B

width

direction

Direction change

W

Angle

G

Weight per storage unit

  • LGVB 60-20E
    Cable ladder vertical bend LGVB 60-20E
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    2.368 kg
    More information
  • LGVB 60-30E
    Cable ladder vertical bend LGVB 60-30E
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    2.648 kg
    More information
  • LGVB 60-40E
    Cable ladder vertical bend LGVB 60-40E
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    2.928 kg
    More information
  • LGVB 60-50E
    Cable ladder vertical bend LGVB 60-50E
    height
    60 mm
    Height
    60 mm
    width
    500 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.208 kg
    More information
  • LGVB 60-60E
    Cable ladder vertical bend LGVB 60-60E
    height
    60 mm
    Height
    60 mm
    width
    600 mm
    Direction change
    rising/falling
    Angle
    var.
    Weight per storage unit
    3.468 kg
    More information

Details

  • Creates flexible vertical changes of cable routing direction

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
