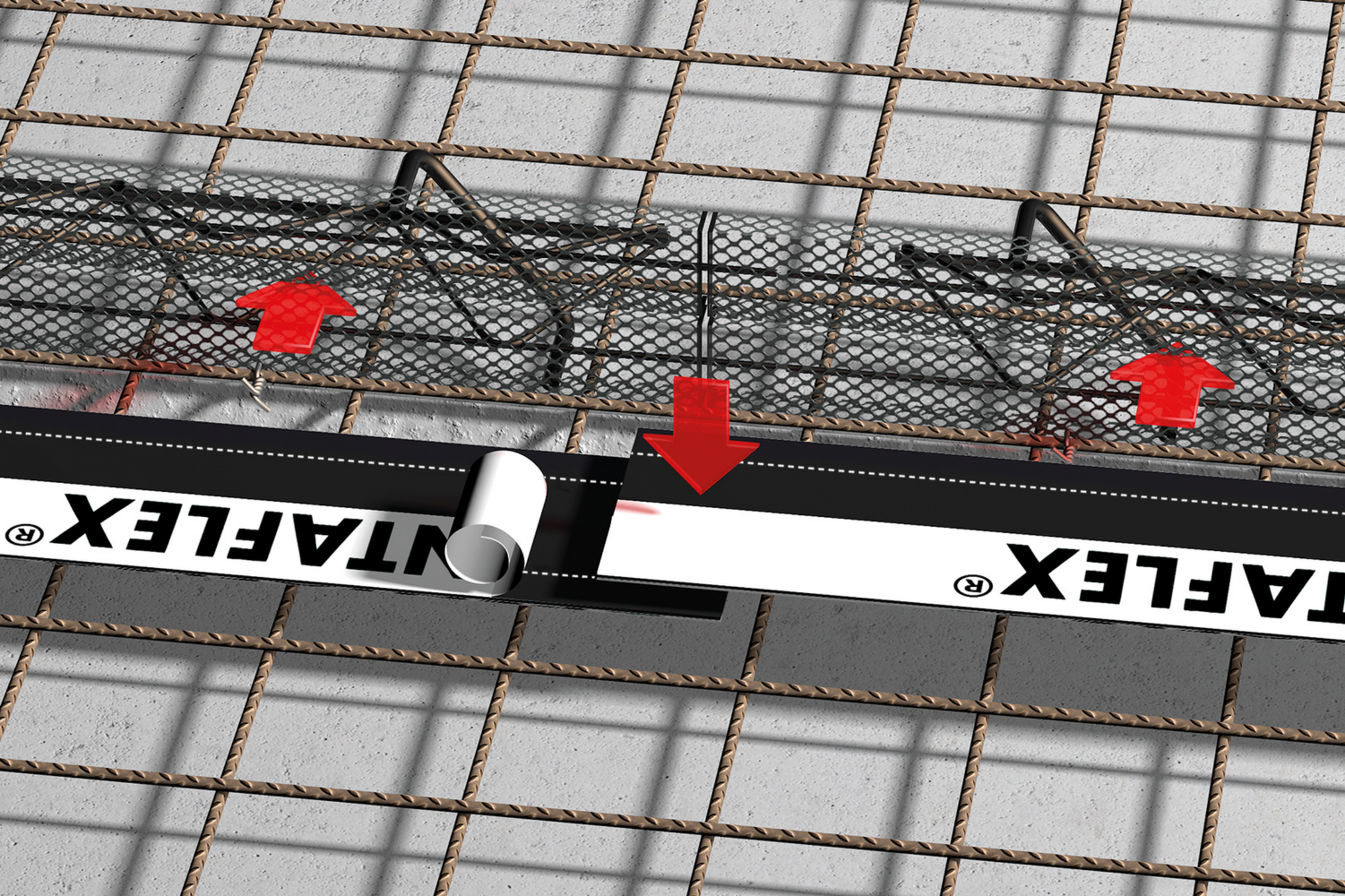

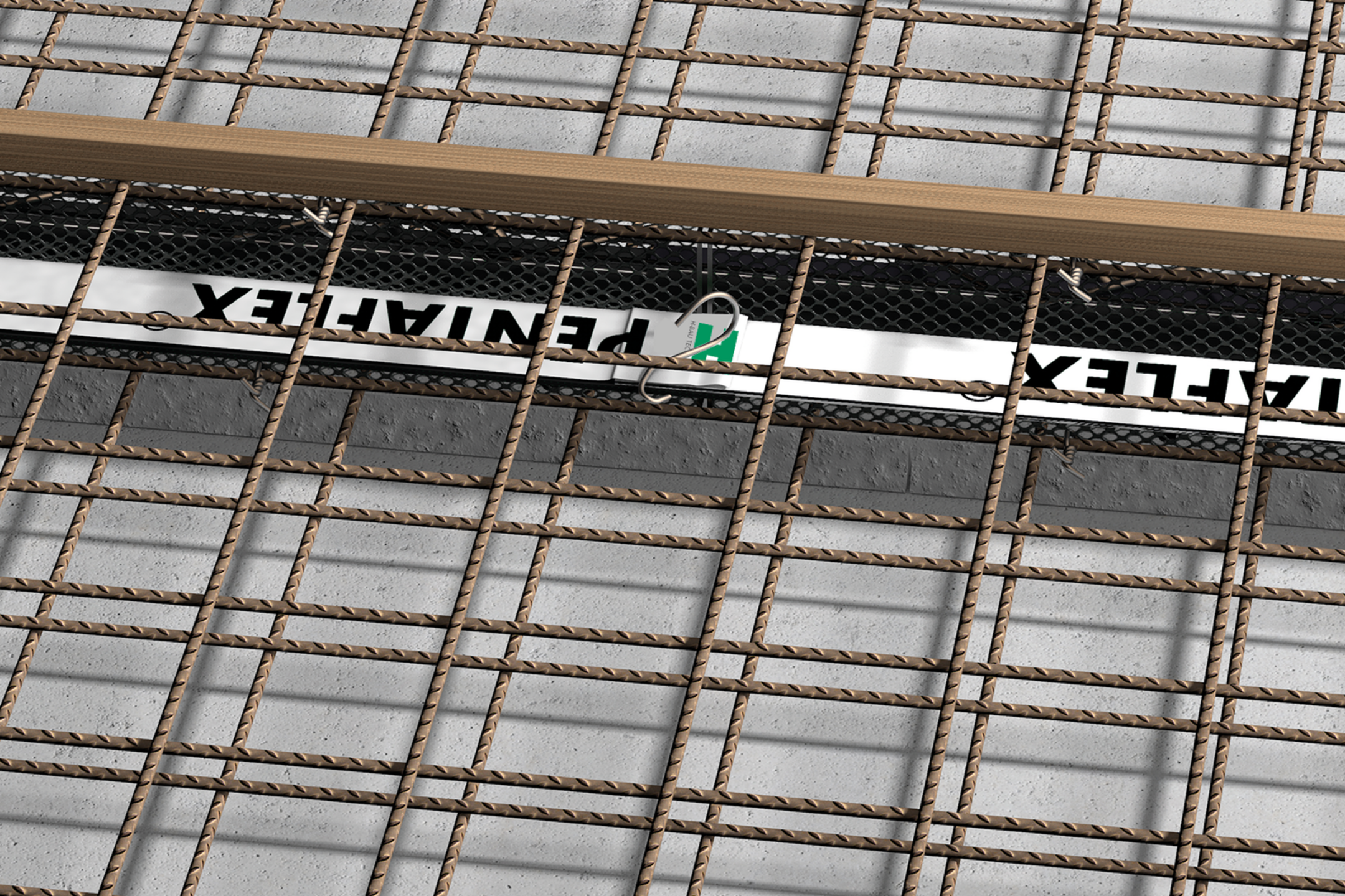

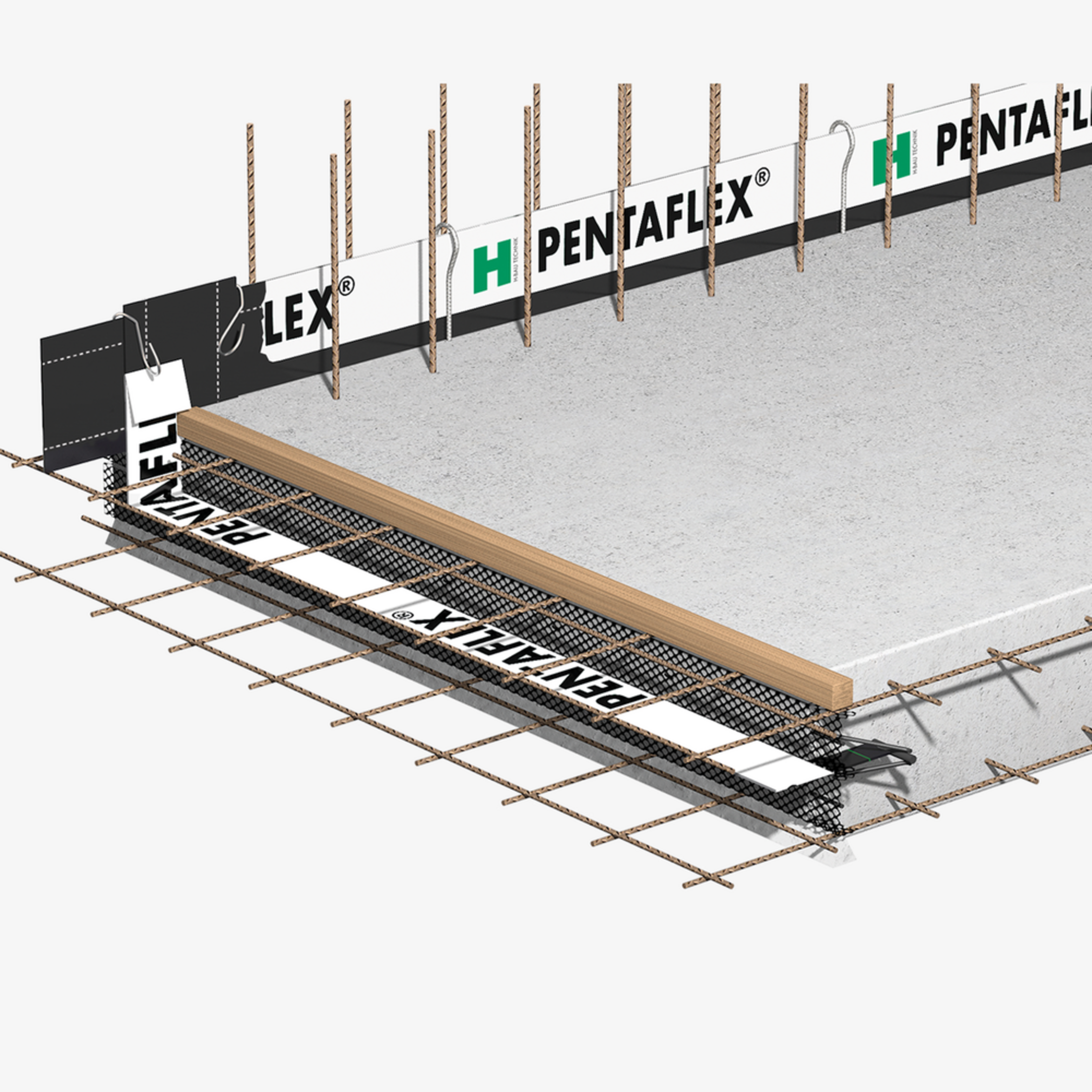

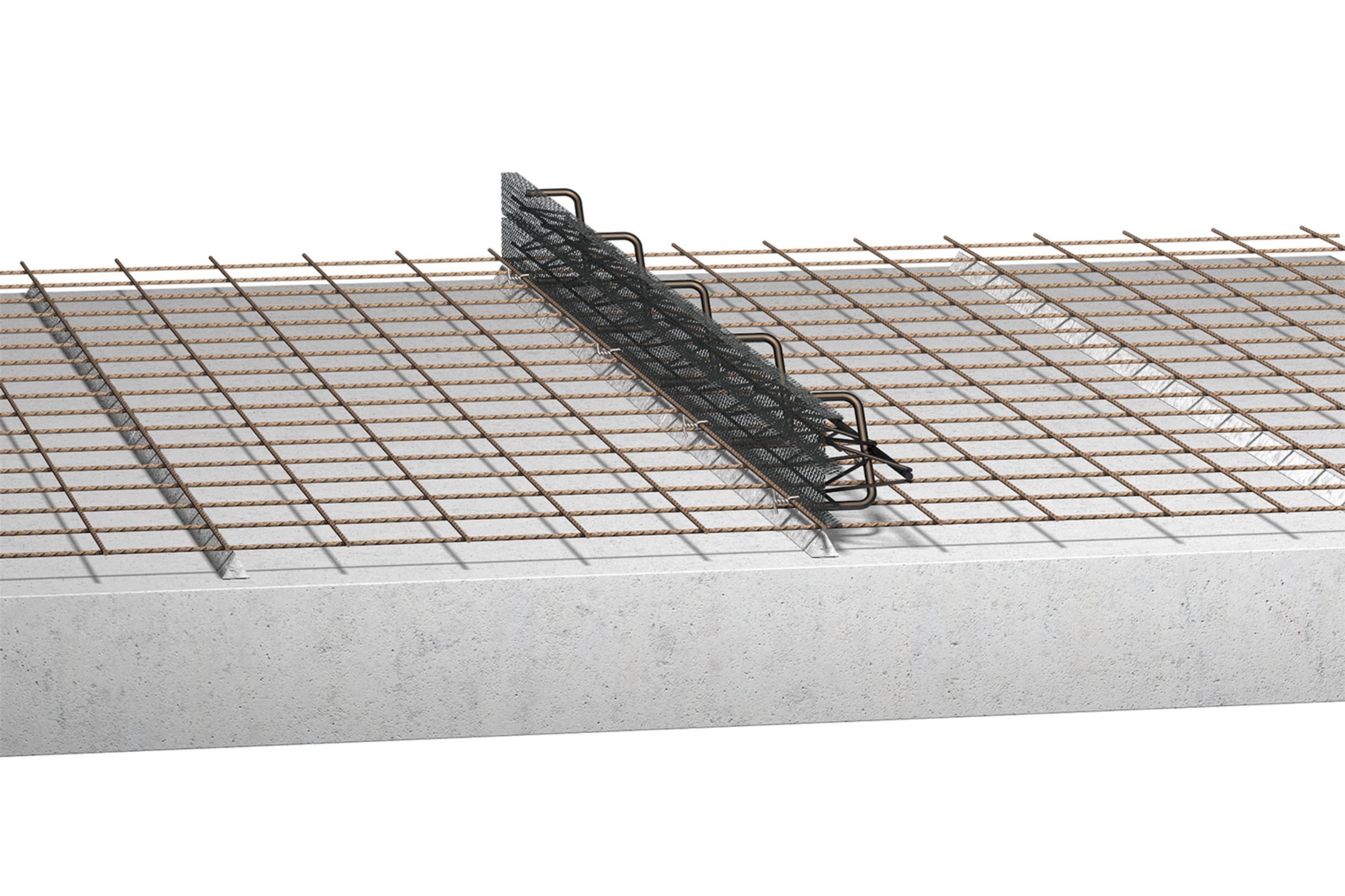

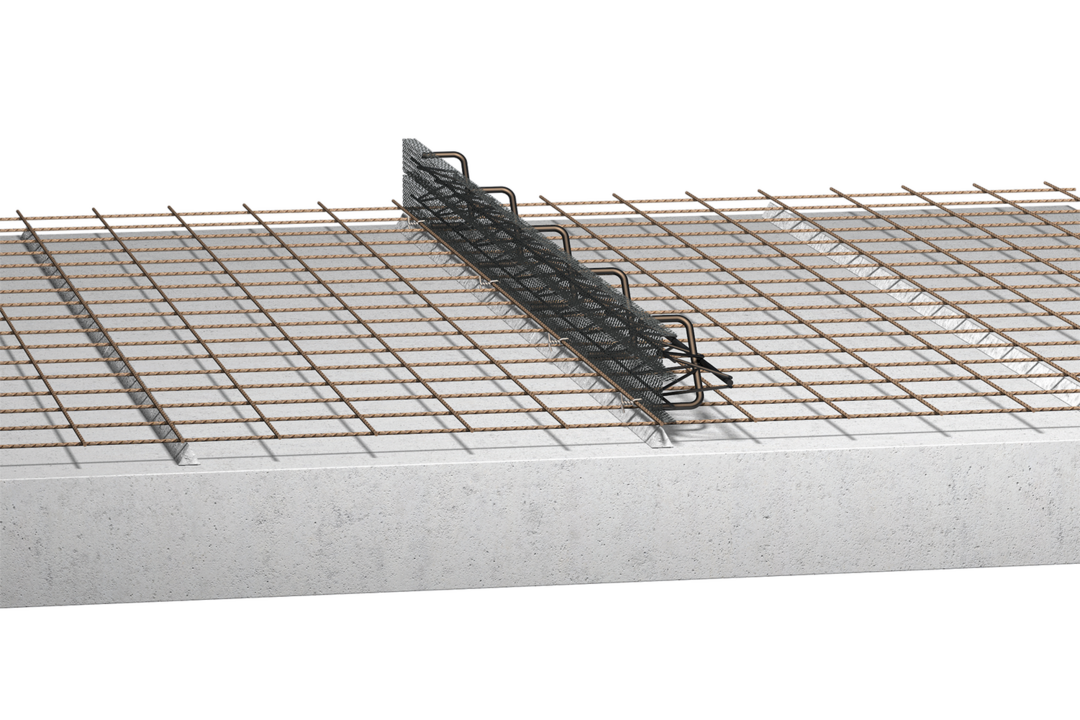

The component PENTAFLEX® ABS R Floor/Floor is a formwork element that is used to create waterproof construction joints in the floor-to-floor connection area of reinforced concrete components. The ABS-R version with a shortened, stiffening lattice girder construction is suitable for forming rough joints. The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 80 to 590 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
: ETA-15/0003
Approvals and Certificates
Approvals and Certificates
- Approved throughout Europe by ETA-15/0003
- German building code test certificate (abP)
Products
| Products | Type | H installation height | W Weight per storage unit | bookmark |
|---|---|---|---|---|
| 111700022834 | Penta ABS R BD 80 200 | 2,370 kg | ||
| 111700022084 | Penta ABS R BD 80 200 2.4 NEW | 140-200 mm | 2,370 kg | |
| 111700022835 | Penta ABS R BD 210 250 | 2,600 kg | ||
| 111700022085 | Penta ABS R BD 210 250 2.4 NEW | 210-250 mm | 2,600 kg | |
| 111700022836 | Penta ABS R BD 260 300 | 2,820 kg | ||
| 111700022086 | Penta ABS R BD 260 300 2.4 NEW | 260-300 mm | 2,820 kg | |
| 111700022837 | Penta ABS R BD 310 350 | 3,260 kg | ||
| 111700022087 | Penta ABS R BD 310 350 2.4 NEW | 310-350 mm | 3,260 kg | |
| 111700022838 | Penta ABS R BD 360 400 | 3,500 kg | ||
| 111700022088 | Penta ABS R BD 360 400 2.4 NEW | 360-400 mm | 3,500 kg | |
| 111700022839 | Penta ABS R BD 410 500 | 3,990 kg | ||
| 111700022089 | Penta ABS R BD 410 500 2.4 NEW | 410-500 mm | 3,990 kg | |
| 111700022840 | Penta ABS R BD 510 590 | 4,920 kg | ||
| 111700022090 | Penta ABS R BD 510 590 2.4 NEW | 510-590 mm | 4,920 kg |
