PENTAFLEX® ABS R Floor/Floor

Sealing formwork element as a rough joint

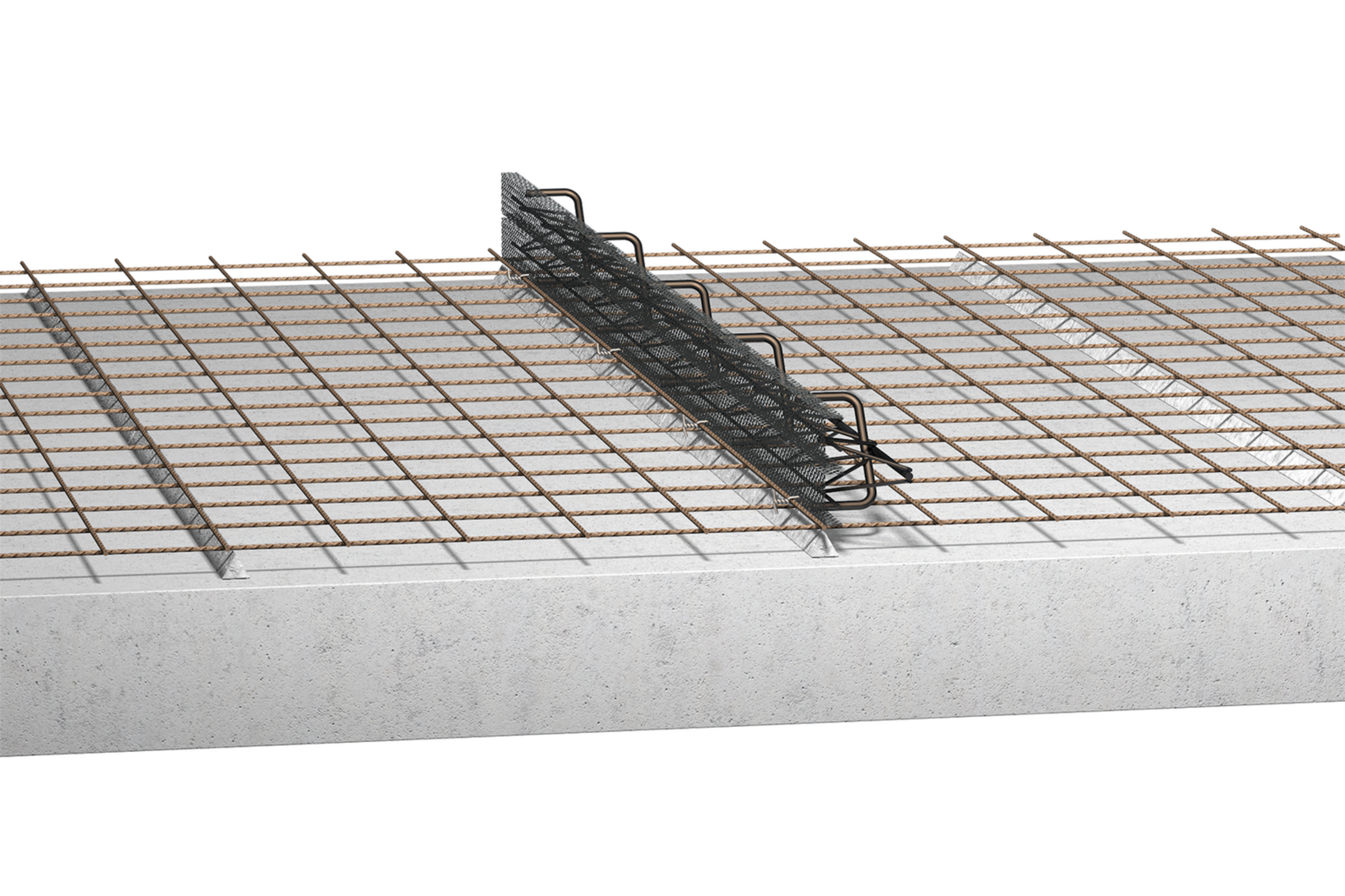

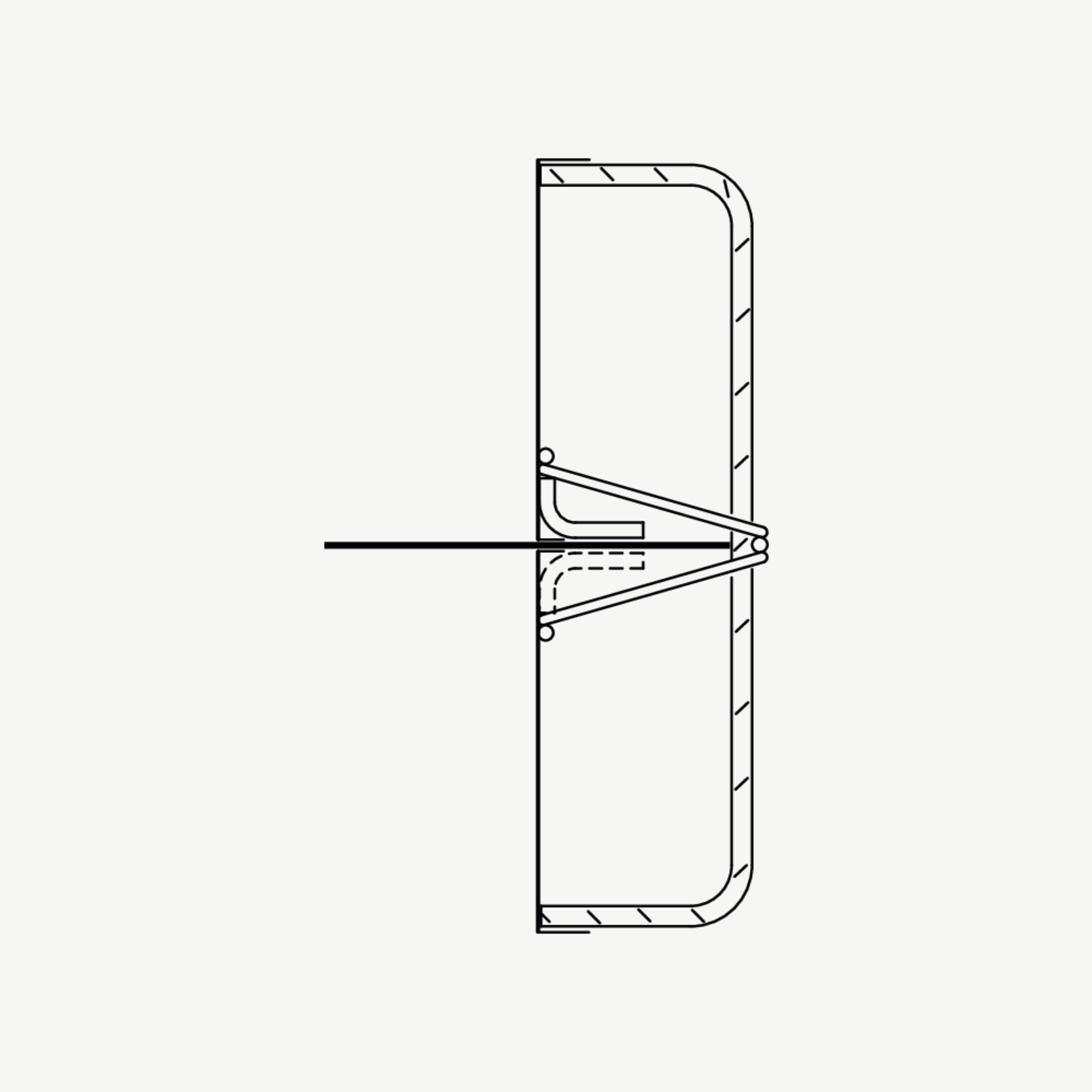

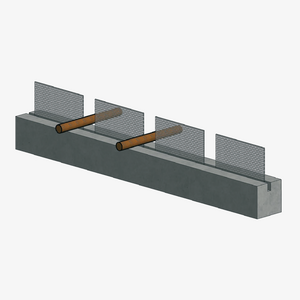

The component PENTAFLEX® ABS R Floor/Floor is a formwork element that is used to create waterproof construction joints in the floor-to-floor connection area of reinforced concrete components. The ABS-R version with a shortened, stiffening lattice girder construction is suitable for forming rough joints. The formwork element is made of DC04 steel and has been verified as watertight up to 5.0 bar. It is 2400 mm long and 80 to 590 mm high. Other length dimensions, e.g. short or conical pieces, are also available on request.

European Technical Assessment: ETA-15/0003
Get in touch Download datasheet

Variants

Article

H

Einbauhöhe

G

Gewicht je Lagermengeneinheit
  • 111700022084
    Penta ABS R BD 80 200 2.4 N
    Einbauhöhe
    140-200 mm
    Gewicht je Lagermengeneinheit
    2.370 kg
    More information
  • 111700022085
    Penta ABS R BD 210 250 2.4 N
    Einbauhöhe
    210-250 mm
    Gewicht je Lagermengeneinheit
    2.600 kg
    More information
  • 111700022086
    Penta ABS R BD 260 300 2.4 N
    Einbauhöhe
    260-300 mm
    Gewicht je Lagermengeneinheit
    2.820 kg
    More information
  • 111700022087
    Penta ABS R BD 310 350 2.4 N
    Einbauhöhe
    310-350 mm
    Gewicht je Lagermengeneinheit
    3.260 kg
    More information
  • 111700022088
    Penta ABS R BD 360 400 2.4 N
    Einbauhöhe
    360-400 mm
    Gewicht je Lagermengeneinheit
    3.500 kg
    More information
  • 111700022089
    Penta ABS R BD 410 500 2.4 N
    Einbauhöhe
    410-500 mm
    Gewicht je Lagermengeneinheit
    3.990 kg
    More information
  • 111700022090
    Penta ABS R BD 510 590 2.4 N
    Einbauhöhe
    510-590 mm
    Gewicht je Lagermengeneinheit
    4.920 kg
    More information
  • 111700022834
    Penta ABS R BD 80 200 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.370 kg
    More information
  • 111700022835
    Penta ABS R BD 210 250 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.600 kg
    More information
  • 111700022836
    Penta ABS R BD 260 300 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    2.820 kg
    More information
  • 111700022837
    Penta ABS R BD 310 350 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    3.260 kg
    More information
  • 111700022838
    Penta ABS R BD 360 400 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    3.500 kg
    More information
  • 111700022839
    Penta ABS R BD 410 500 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    3.990 kg
    More information
  • 111700022840
    Penta ABS R BD 510 590 N
    Einbauhöhe
    Gewicht je Lagermengeneinheit
    4.920 kg
    More information

Details

  • European Technical Assessment: ETA-15/0003

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)

    Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 1 MB

    de en

  • Allgemeines bauaufsichtliches Prüfzeugnis

    PDF, 875 KB

    en
    Download

  • PENTAFLEX® - Technical information

    Technical information

    PDF, 7 MB

    de en

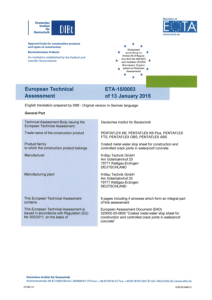

  • ETA 15/0003 PENTAFLEX®

    Zulassung

    PDF, 1 MB

    de en

Included accessories
