WPAD

Wide-span tee cover

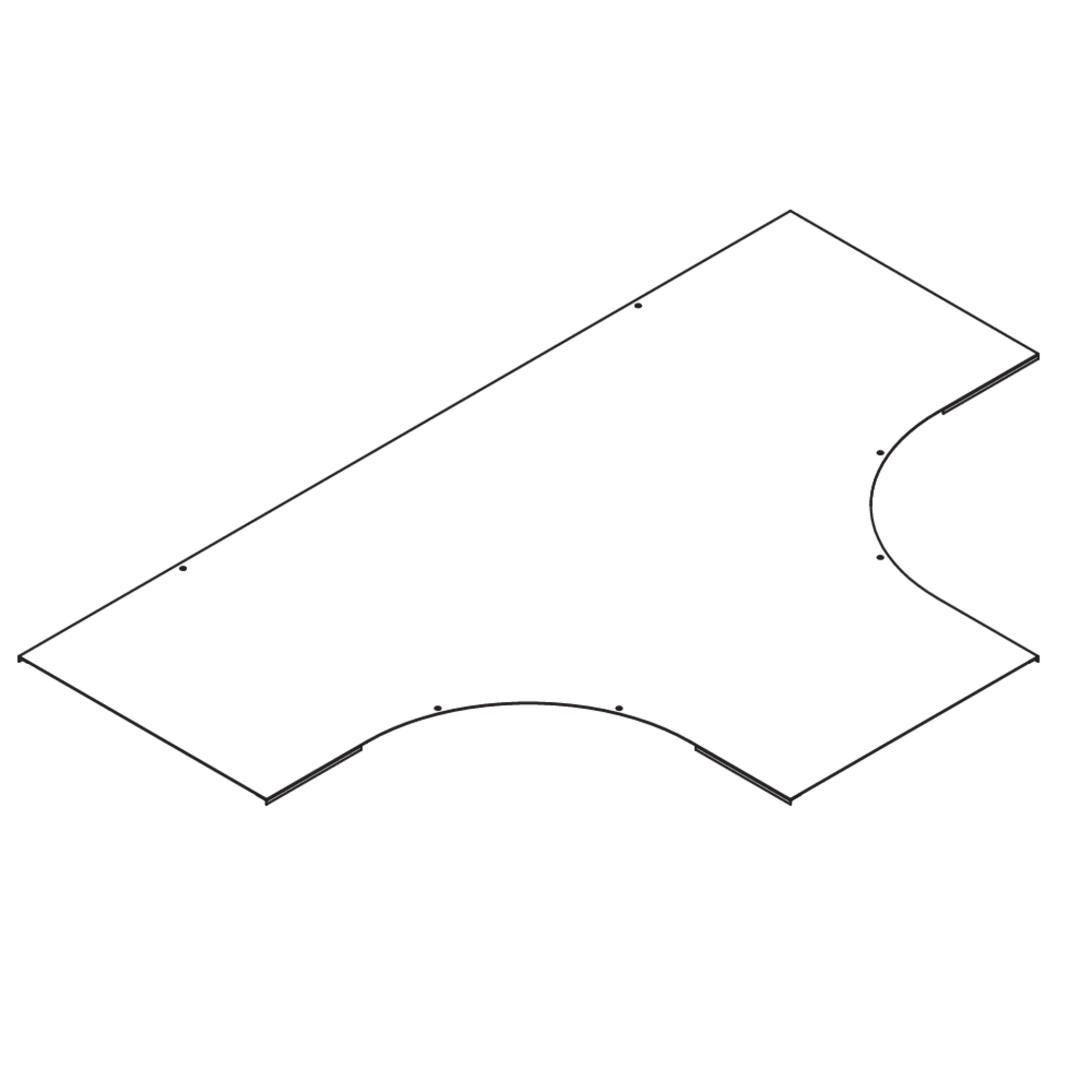

The wide-span branch cover WPAD is suitable for WPLA and WPRA wide-span branches and protects them from dirt, moisture and UV radiation. It is placed on top of the branch and secured with WPFDK or WPFDKA formed part cover clips. The latter are used if the cover is elevated. This improves the ventilation of the cables. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

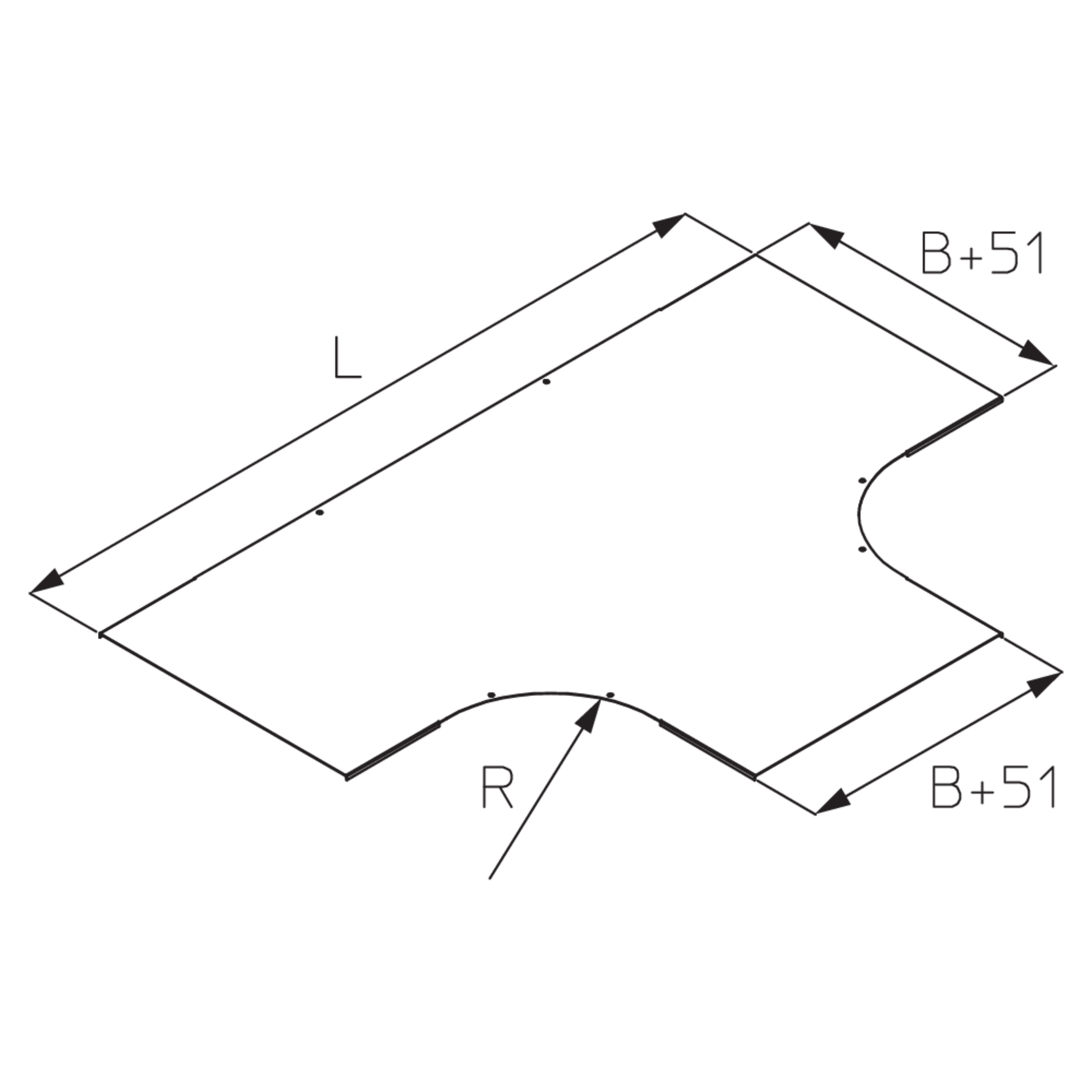

Article

B

width

L

length

R

radius

G

Weight per storage unit

  • WPAD 20S
    Wide-span branch-piece cover WPAD 20S
    width
    251 mm
    length
    1635 mm
    radius
    450 mm
    Weight per storage unit
    4.310 kg
    More information
  • WPAD 30S
    Wide-span branch-piece cover WPAD 30S
    width
    351 mm
    length
    1735 mm
    radius
    450 mm
    Weight per storage unit
    7.720 kg
    More information
  • WPAD 40S
    Wide-span branch-piece cover WPAD 40S
    width
    451 mm
    length
    1835 mm
    radius
    450 mm
    Weight per storage unit
    9.980 kg
    More information
  • WPAD 50S
    Wide-span branch-piece cover WPAD 50S
    width
    500 mm
    length
    1935 mm
    radius
    450 mm
    Weight per storage unit
    15.400 kg
    More information
  • WPAD 60S
    Wide-span branch-piece cover WPAD 60S
    width
    651 mm
    length
    2035 mm
    radius
    450 mm
    Weight per storage unit
    18.620 kg
    More information

Steel, hot-dip galvanised

Article

B

width

L

length

R

radius

G

Weight per storage unit

  • WPAD 20F
    Wide-span branch-piece cover WPAD 20F
    width
    251 mm
    length
    1635 mm
    radius
    450 mm
    Weight per storage unit
    4.610 kg
    More information
  • WPAD 30F
    Wide-span branch-piece cover WPAD 30F
    width
    351 mm
    length
    1735 mm
    radius
    450 mm
    Weight per storage unit
    8.260 kg
    More information
  • WPAD 40F
    Wide-span branch-piece cover WPAD 40F
    width
    451 mm
    length
    1835 mm
    radius
    450 mm
    Weight per storage unit
    10.680 kg
    More information
  • WPAD 50F
    Wide-span branch-piece cover WPAD 50F
    width
    551 mm
    length
    1935 mm
    radius
    450 mm
    Weight per storage unit
    16.480 kg
    More information
  • WPAD 60F
    Wide-span branch-piece cover WPAD 60F
    width
    651 mm
    length
    2035 mm
    radius
    450 mm
    Weight per storage unit
    19.920 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

B

width

L

length

R

radius

G

Weight per storage unit

  • WPAD 20E
    Wide-span branch-piece cover WPAD 20E
    width
    251 mm
    length
    1635 mm
    radius
    450 mm
    Weight per storage unit
    4.340 kg
    More information
  • WPAD 30E
    Wide-span branch-piece cover WPAD 30E
    width
    351 mm
    length
    1735 mm
    radius
    450 mm
    Weight per storage unit
    7.770 kg
    More information
  • WPAD 40E
    Wide-span branch-piece cover WPAD 40E
    width
    451 mm
    length
    1835 mm
    radius
    450 mm
    Weight per storage unit
    10.050 kg
    More information
  • WPAD 50E
    Wide-span branch-piece cover WPAD 50E
    width
    551 mm
    length
    1935 mm
    radius
    450 mm
    Weight per storage unit
    15.500 kg
    More information
  • WPAD 60E
    Wide-span branch-piece cover WPAD 60E
    width
    651 mm
    length
    2035 mm
    radius
    450 mm
    Weight per storage unit
    18.740 kg
    More information

Details

  • Protects the wide-span branch from external influences
