Art.-Nr. WLKLA F

Clamp WLKLA F

Wide-span cable ladder hold-down clamp

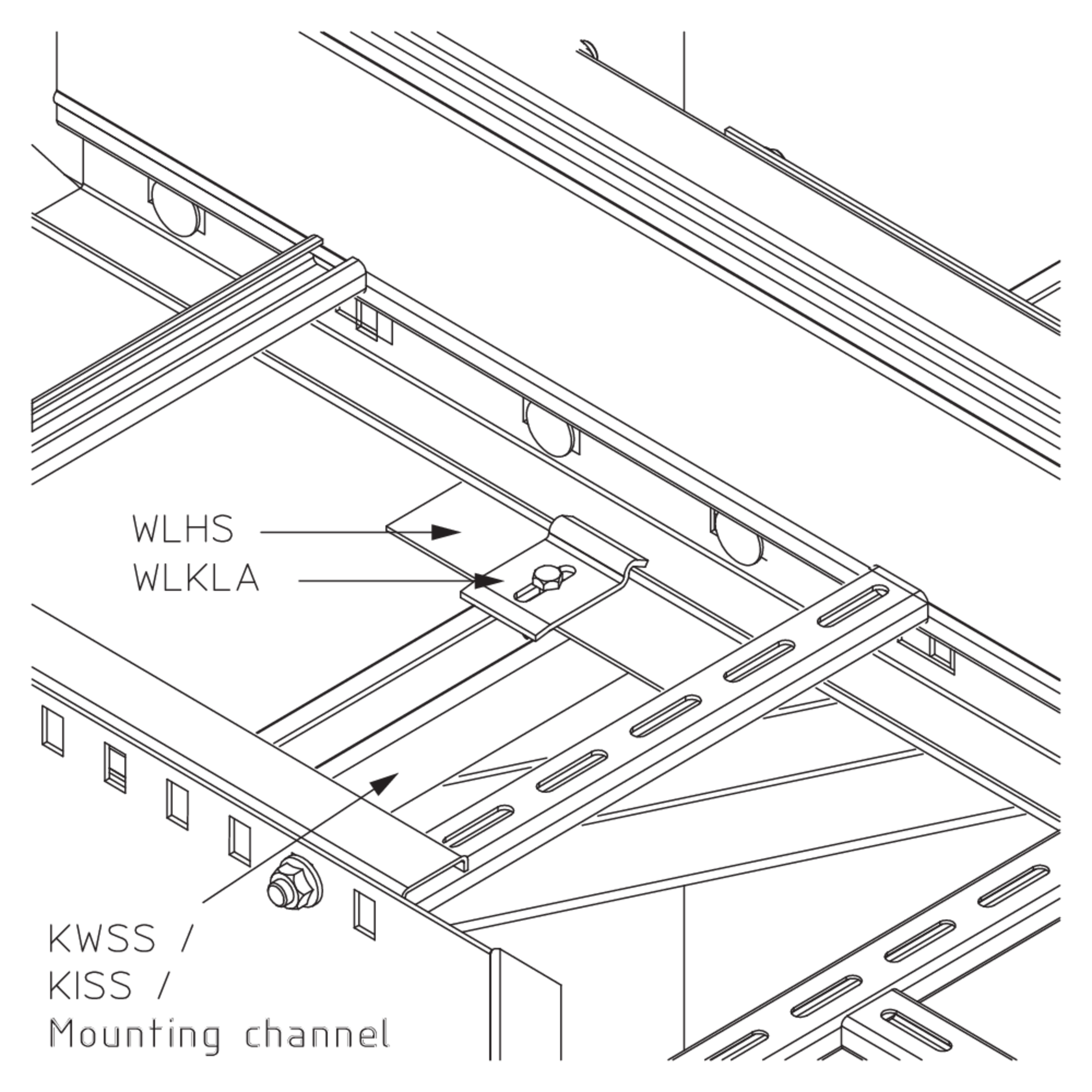

The clamping fastener WLKLA is an accessory part for the WLHS wide-span side rail support if it is used to secure the position of a WL or WLR 200 wide-span tray on profile rails or brackets of type KWSS or KISS. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.
WLKLA F

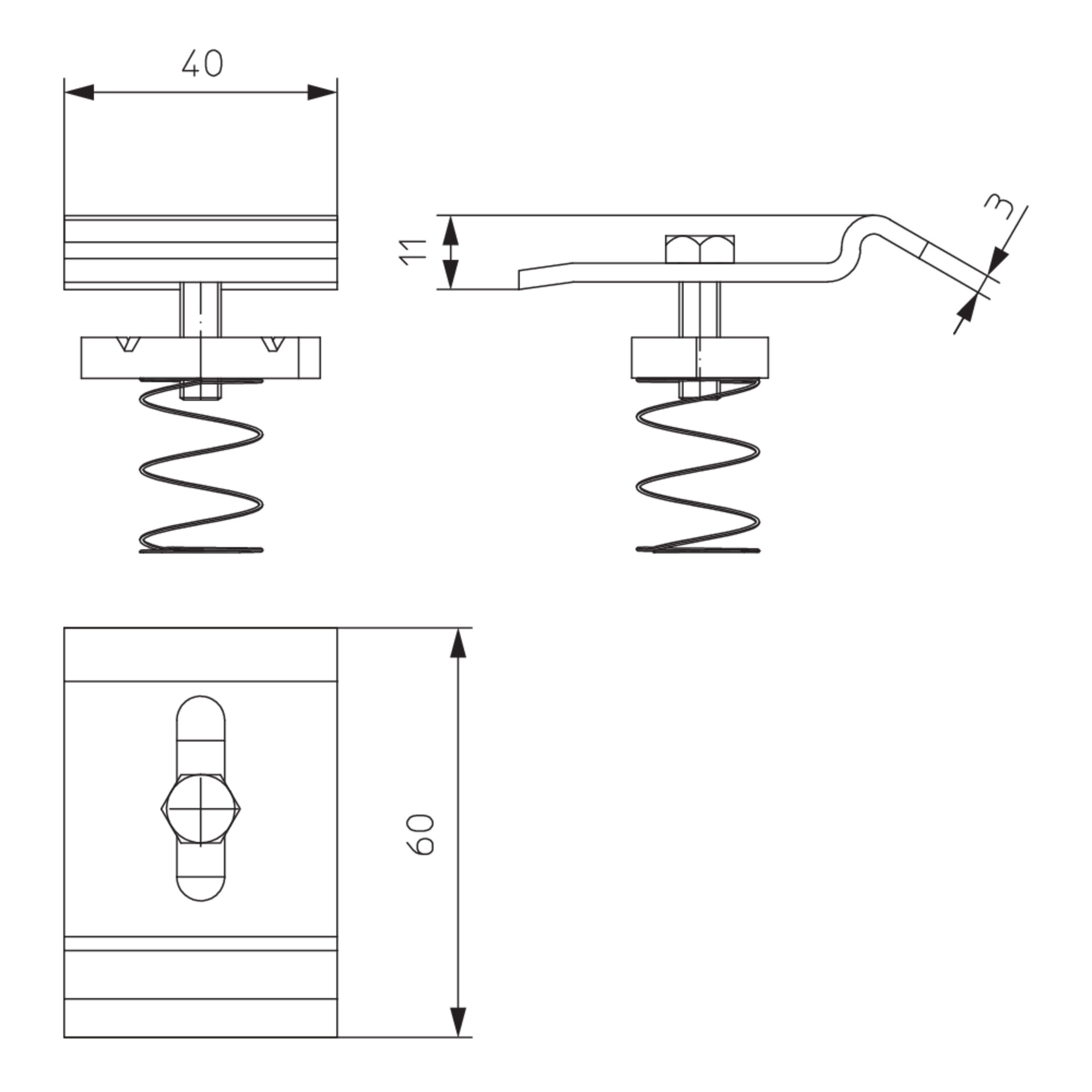

height
11 mm
width
40 mm
length
60 mm
material thickness
3.00 mm
Weight per storage unit
0.180 kg
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

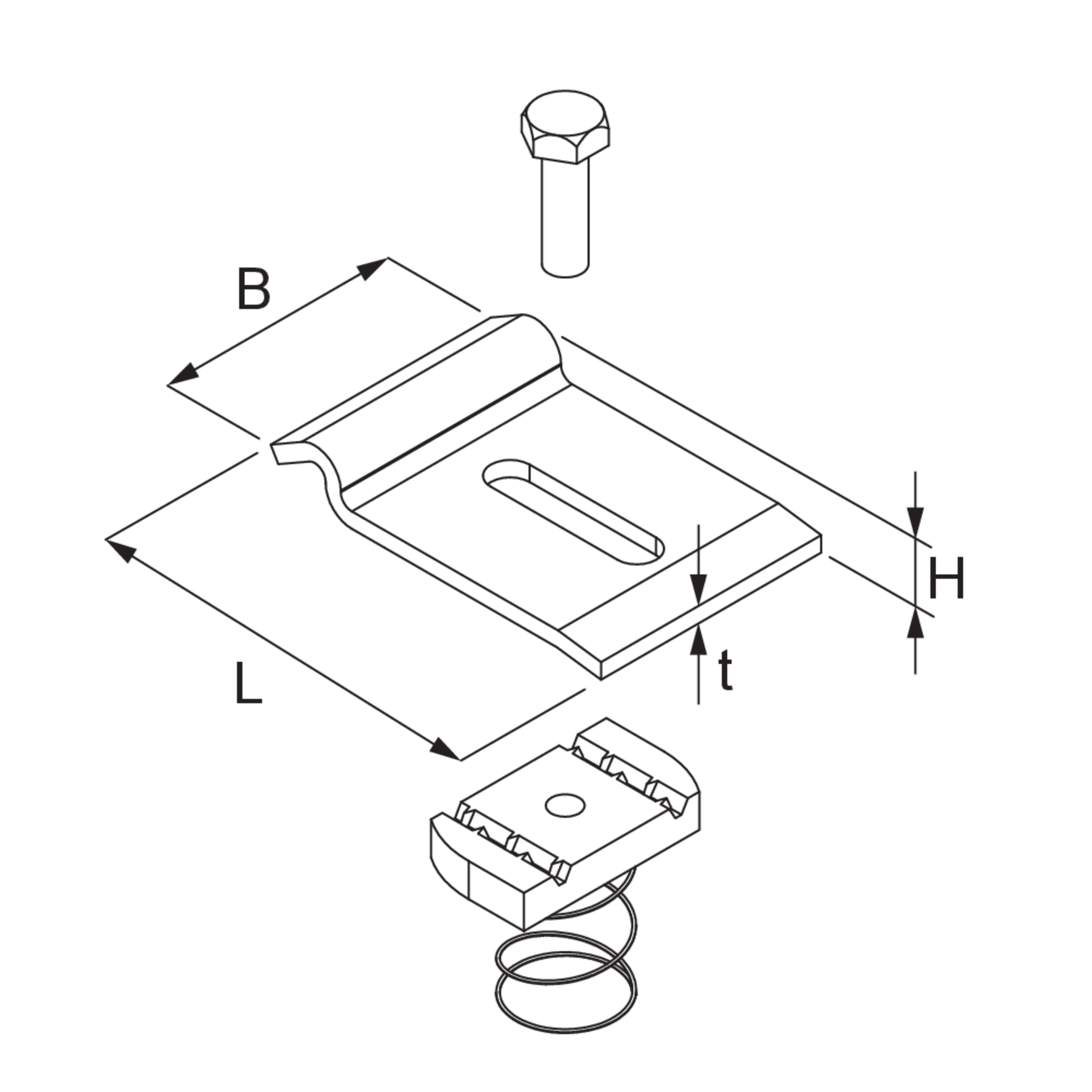

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories

  • WLKLA S
    Clamp WLKLA S
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.178 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories

  • WLKLA F
    Clamp WLKLA F
    height
    11 mm
    width
    40 mm
    length
    60 mm
    material thickness
    3.00 mm
    Weight per storage unit
    0.180 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Building extension

    Choose language to download

    • de

    Wide-Span Cable Ladder WPL, Installation Guide

    Assembly Instructions

    PDF (2.01 MB)

    DownloadDownload

    • de

    Wide-Span Cable Tray WPR, Installation Guide

    Assembly Instructions

    PDF (1.75 MB)

    DownloadDownload

    • de

    • en

    Wide-Span Systems, Technical Information

    Technical Information

    PDF

    Choose languageChoose language

    Wide-Span Systems, Technical Information

    Choose language to download

BIM- und CAD-Data

    BIM for Wide-span Systems

    BIM Data

    ZIP (12.34 MB)

    DownloadDownload

Included accessories
