W

Cable clamps for wall fastening

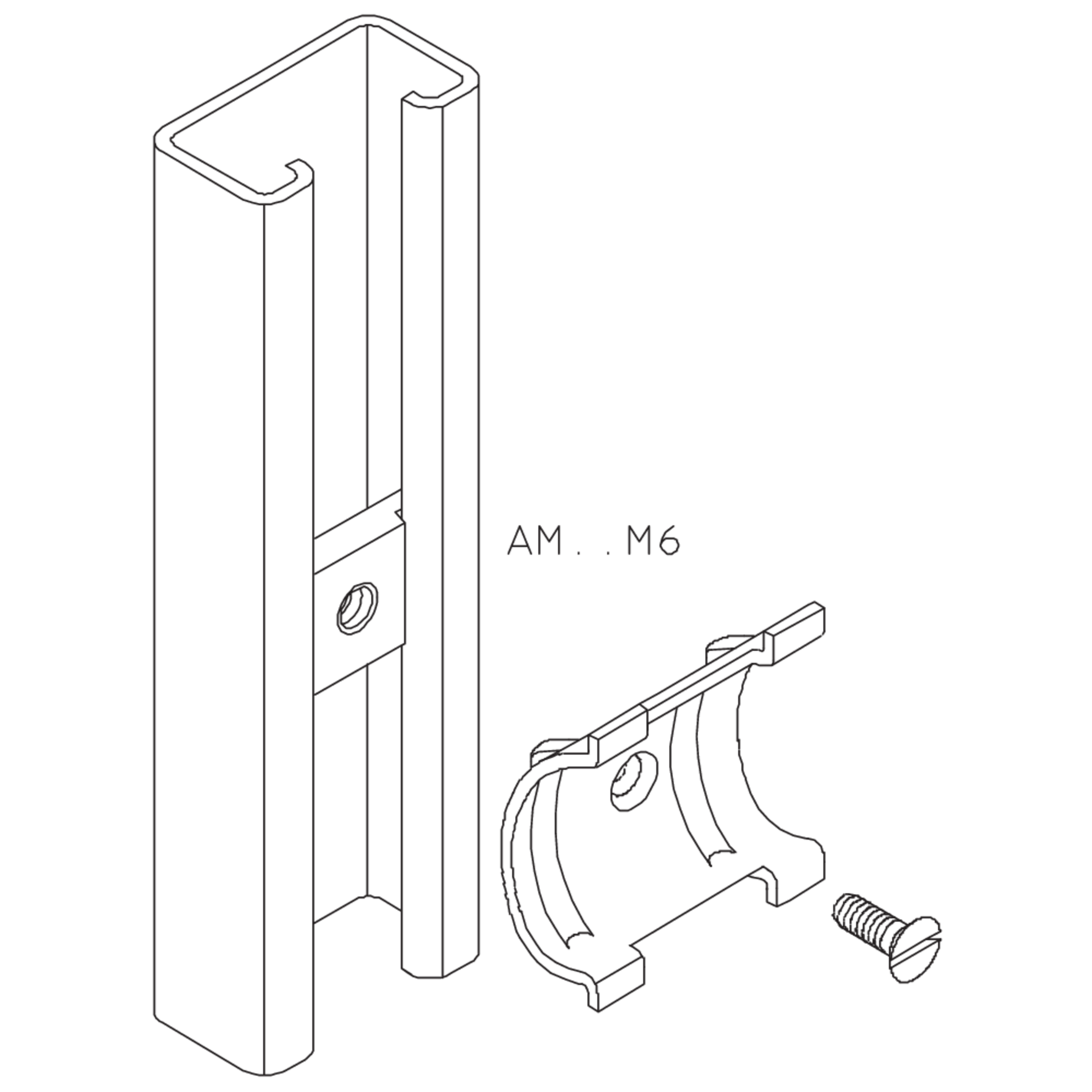

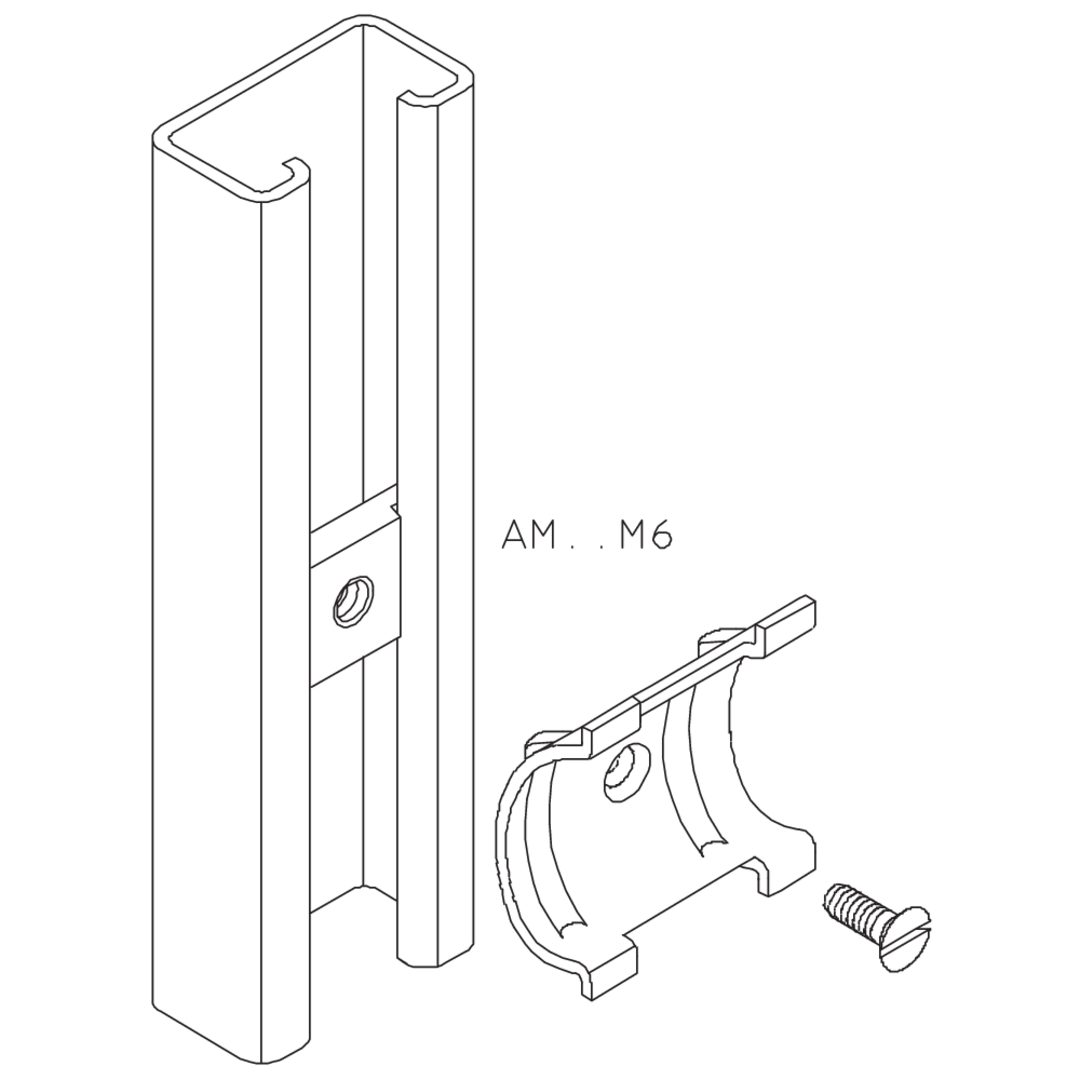

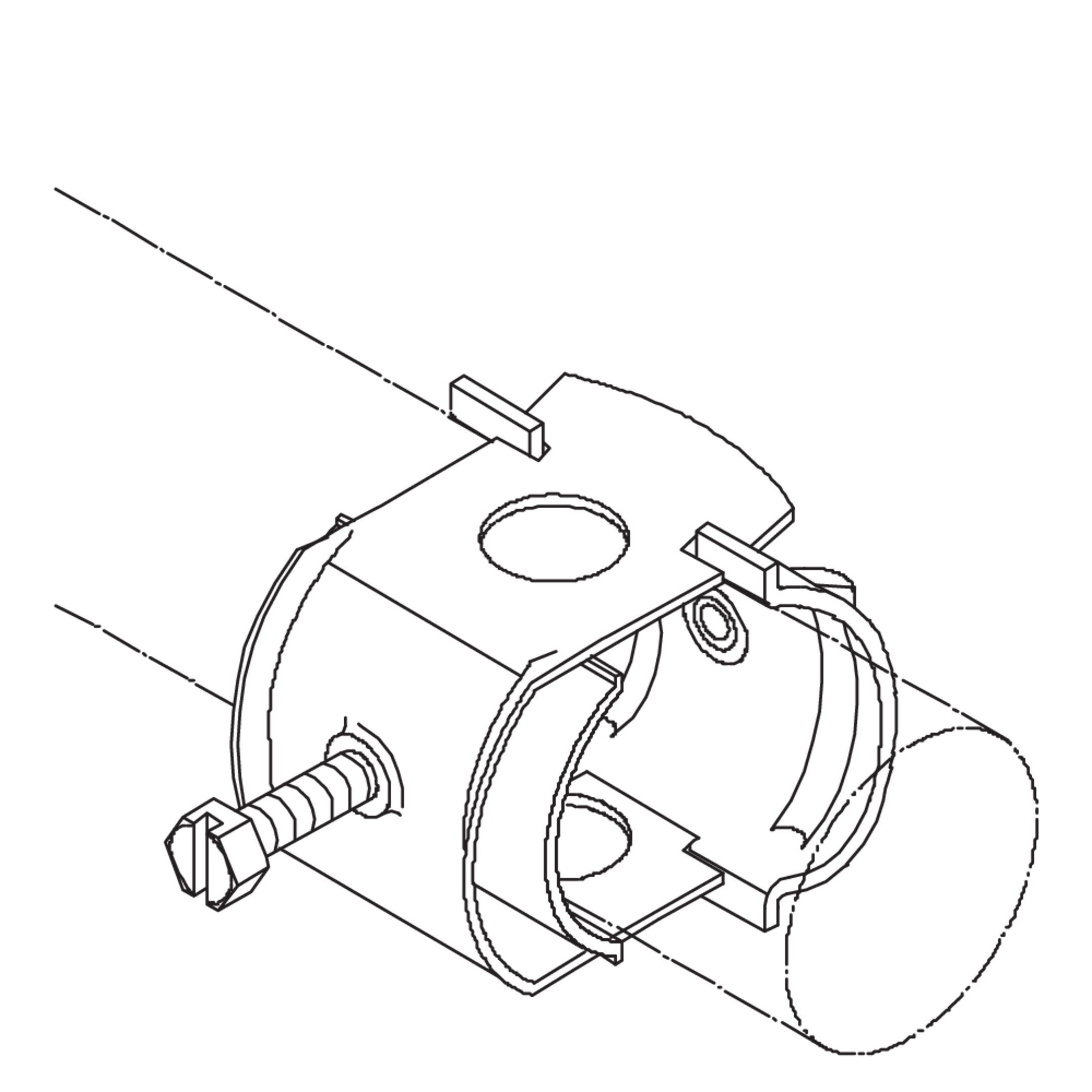

The W cable clamps are used for routing cables with a diameter of up to 60 mm. The cable clamps are fixed directly to the substrate or to tensioning straps and are made of galvanised steel.

The article is also available with lock nuts. This prevents the clamp from unintentionally coming loose. Lock nuts must be specified separately when ordering.

Get in touchDownload datasheet

Variants

steel, zinc plated

Article

D

Diameter (mm)

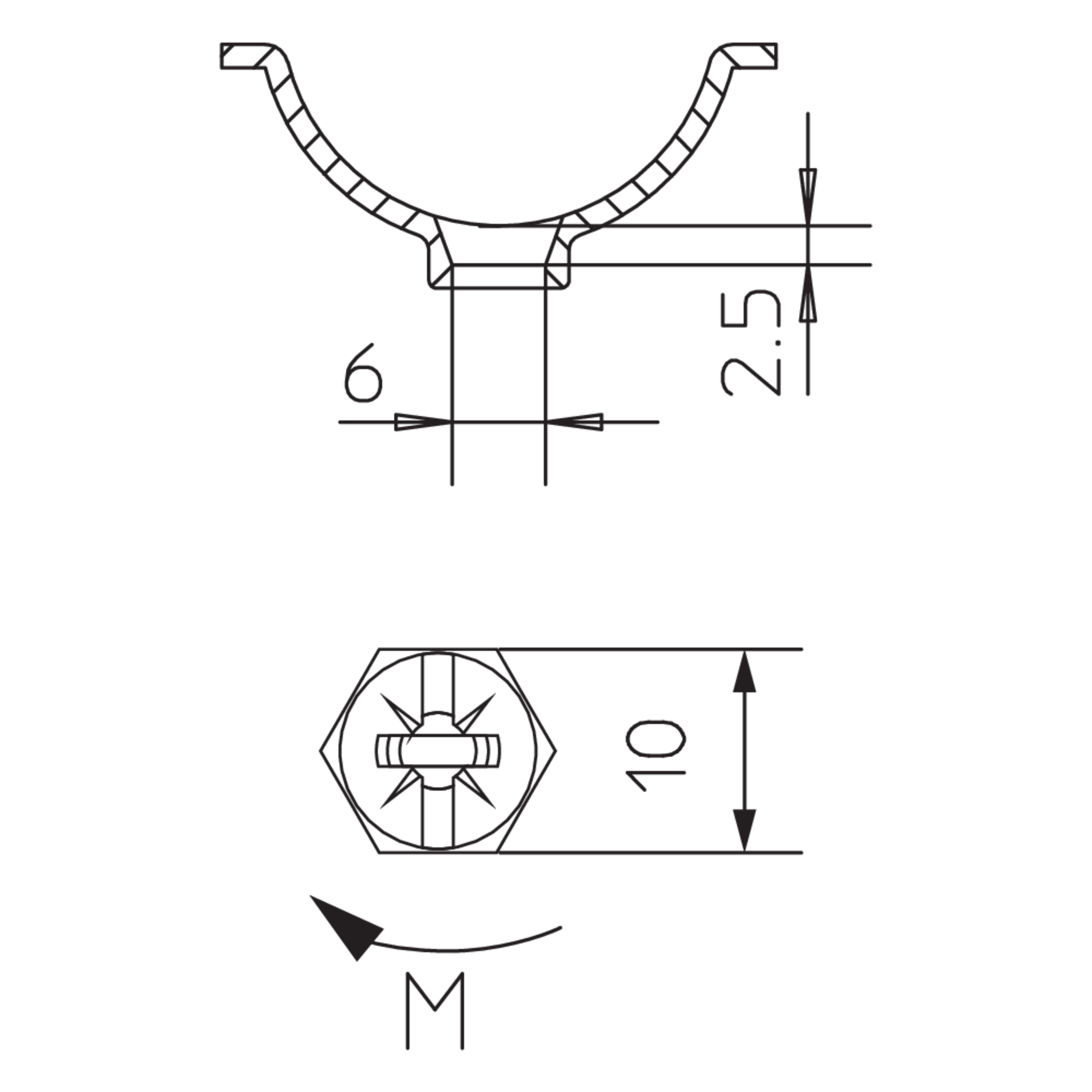

M

torque

G

Weight per storage unit

  • 16 W
    Cable clamp 16 W
    Diameter (mm)
    12-16 mm
    torque
    2 Nm
    Weight per storage unit
    0.041 kg
    More information
  • 20 W
    Cable clamp 20 W
    Diameter (mm)
    16-20 mm
    torque
    2 Nm
    Weight per storage unit
    0.050 kg
    More information
  • 24 W
    Cable clamp 24 W
    Diameter (mm)
    20-24 mm
    torque
    2 Nm
    Weight per storage unit
    0.054 kg
    More information
  • 28 W
    Cable clamp 28 W
    Diameter (mm)
    24-28 mm
    torque
    2 Nm
    Weight per storage unit
    0.060 kg
    More information
  • 32 W
    Cable clamp 32 W
    Diameter (mm)
    28-32 mm
    torque
    4 Nm
    Weight per storage unit
    0.072 kg
    More information
  • 36 W
    Cable clamp 36 W
    Diameter (mm)
    32-36 mm
    torque
    4 Nm
    Weight per storage unit
    0.080 kg
    More information
  • 44 W
    Cable clamp 44 W
    Diameter (mm)
    36-44 mm
    torque
    4 Nm
    Weight per storage unit
    0.114 kg
    More information
  • 52 W
    Cable clamp 52 W
    Diameter (mm)
    44-52 mm
    torque
    4 Nm
    Weight per storage unit
    0.135 kg
    More information
  • 60 W
    Cable clamp 60 W
    Diameter (mm)
    52-60 mm
    torque
    4 Nm
    Weight per storage unit
    0.162 kg
    More information
