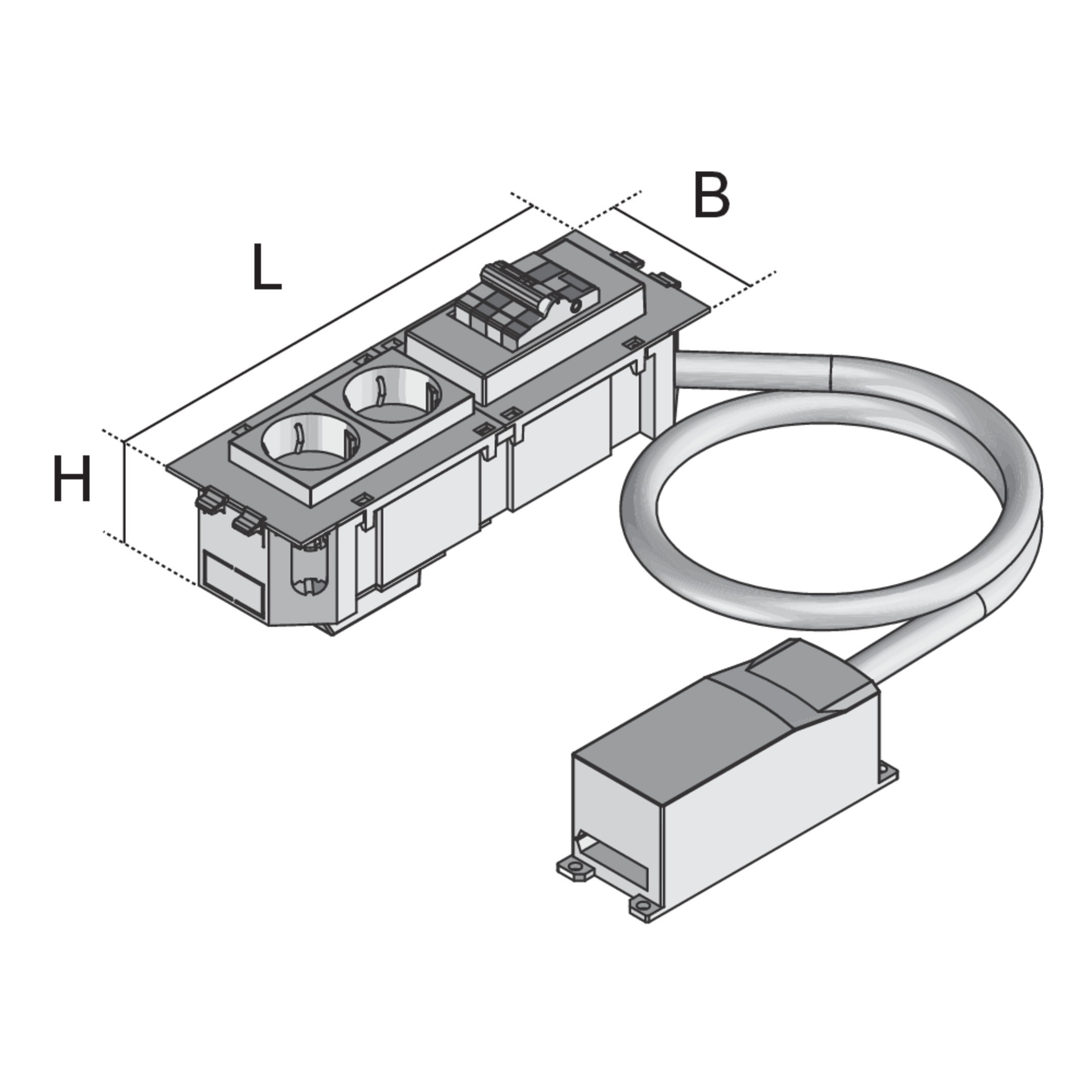

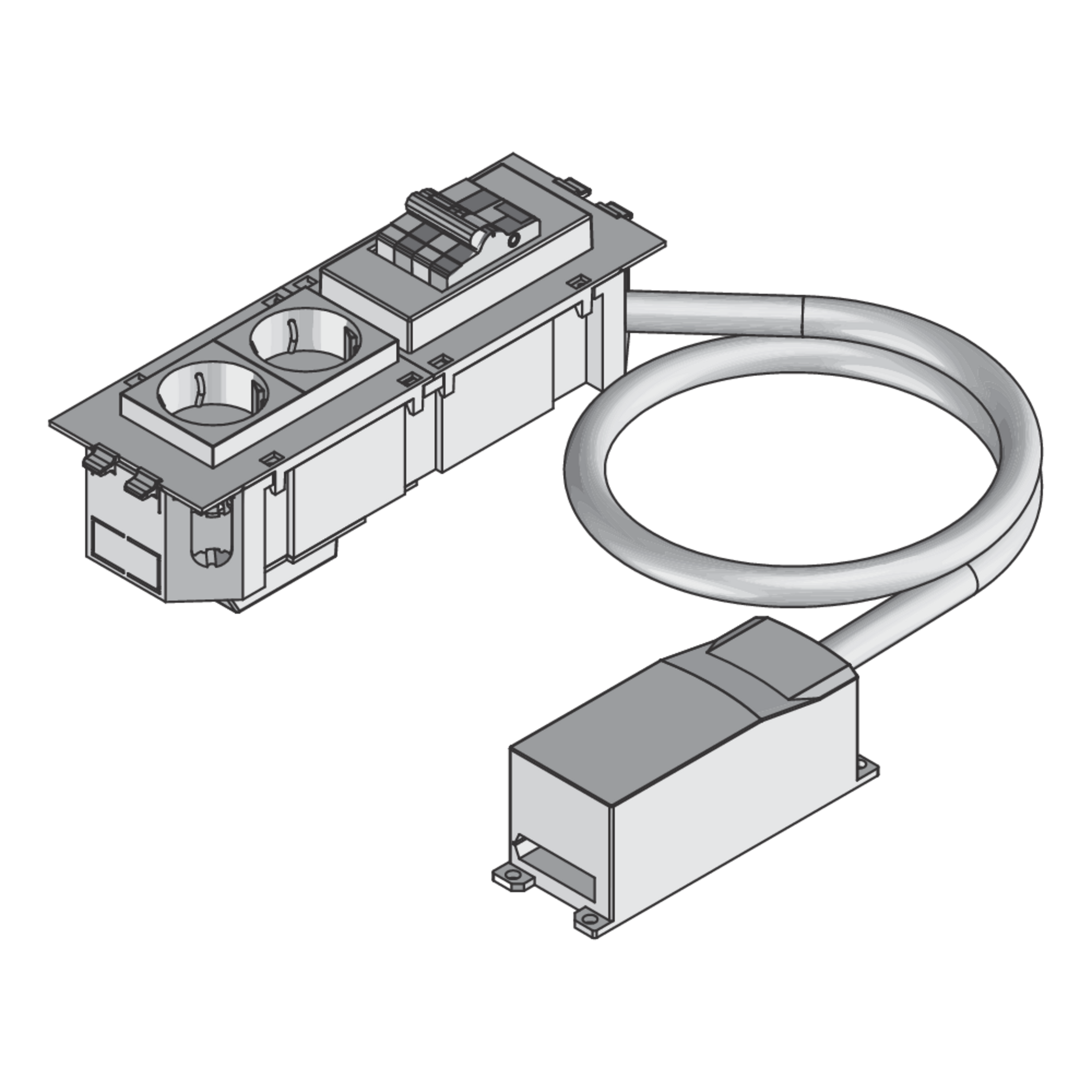

UGWIS-FILS16A

UGWIS-FILS16A components are pre-assembled mounting boxes with a type 6 KA, 1 p + N, 16 A/30 mA residual current circuit breaker. The mounting boxes are connected by a 2000 to 3000 mm long connecting cable with a 4 mm² cable cross-section and a 400 V/32 A flat cable adapter. This connects the 5G10 mm² flat cable, programmed to phase selection L1. They are completed by the addition of a 3-pin Wieland device socket under the mounting box and a 2-way socket. They are made of ABS copolymer.
