UGEA3

Snap-in ladder set for plastic unit, 3x

UGEA3 products are snap-in ladder sets from the underfloor systems range. These mounting components are used in installation units made of plastic where they serve as mounting frames for accommodating up to three mounting boxes. Using the set, mounting boxes can be mounted in the units by lowering them in stages. The snap-in ladders are made of high-quality polyamide in graphite black (RAL 9011). They are 186 mm wide and 55 mm high. Their locking range is 20 mm or 25 mm.

Get in touchDownload datasheet

Variants

Article

H

height

B

width

mounting box

maximum number of installable device casings

colour

color

RB

lock-in range

RAL

RAL-Nummer

G

Weight per storage unit

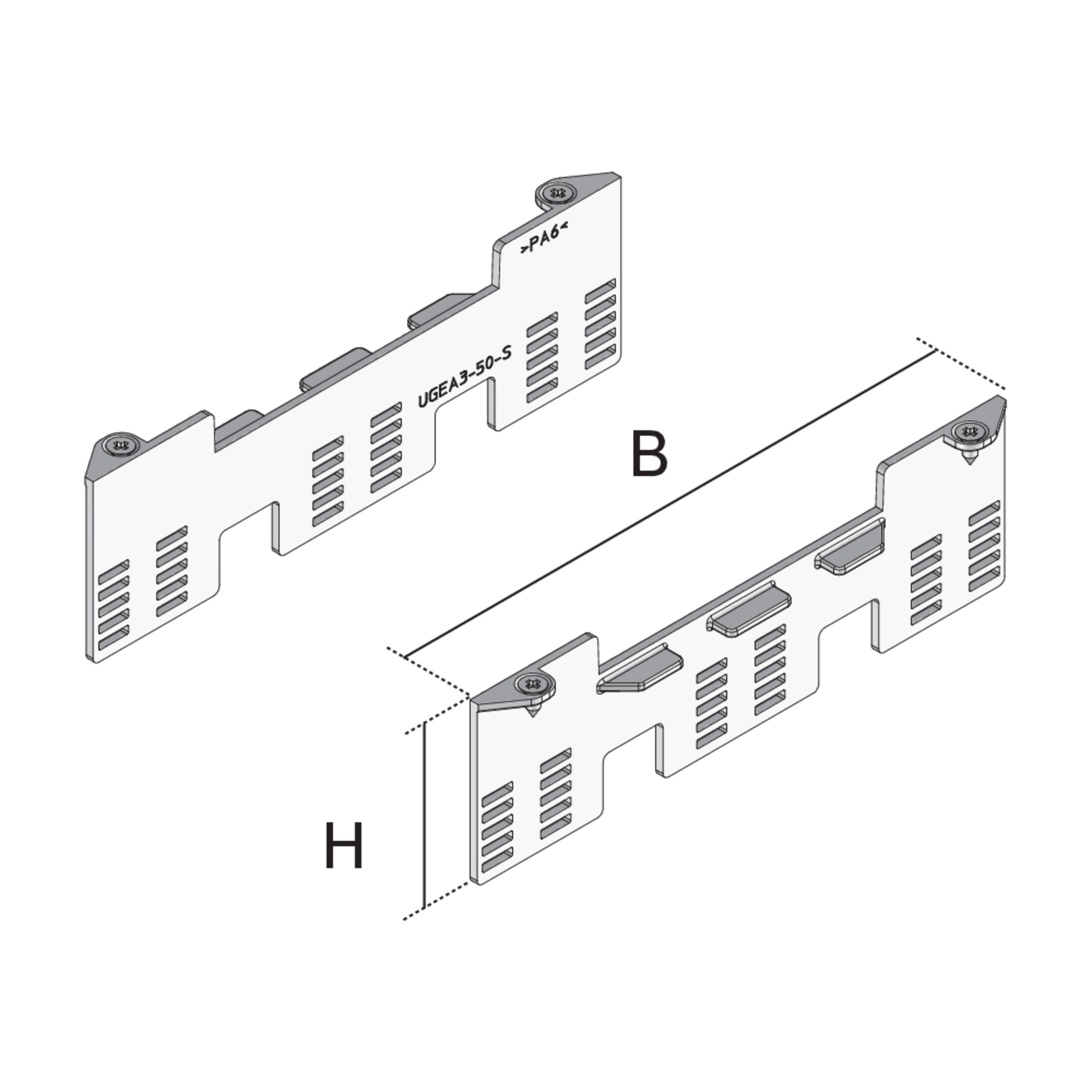

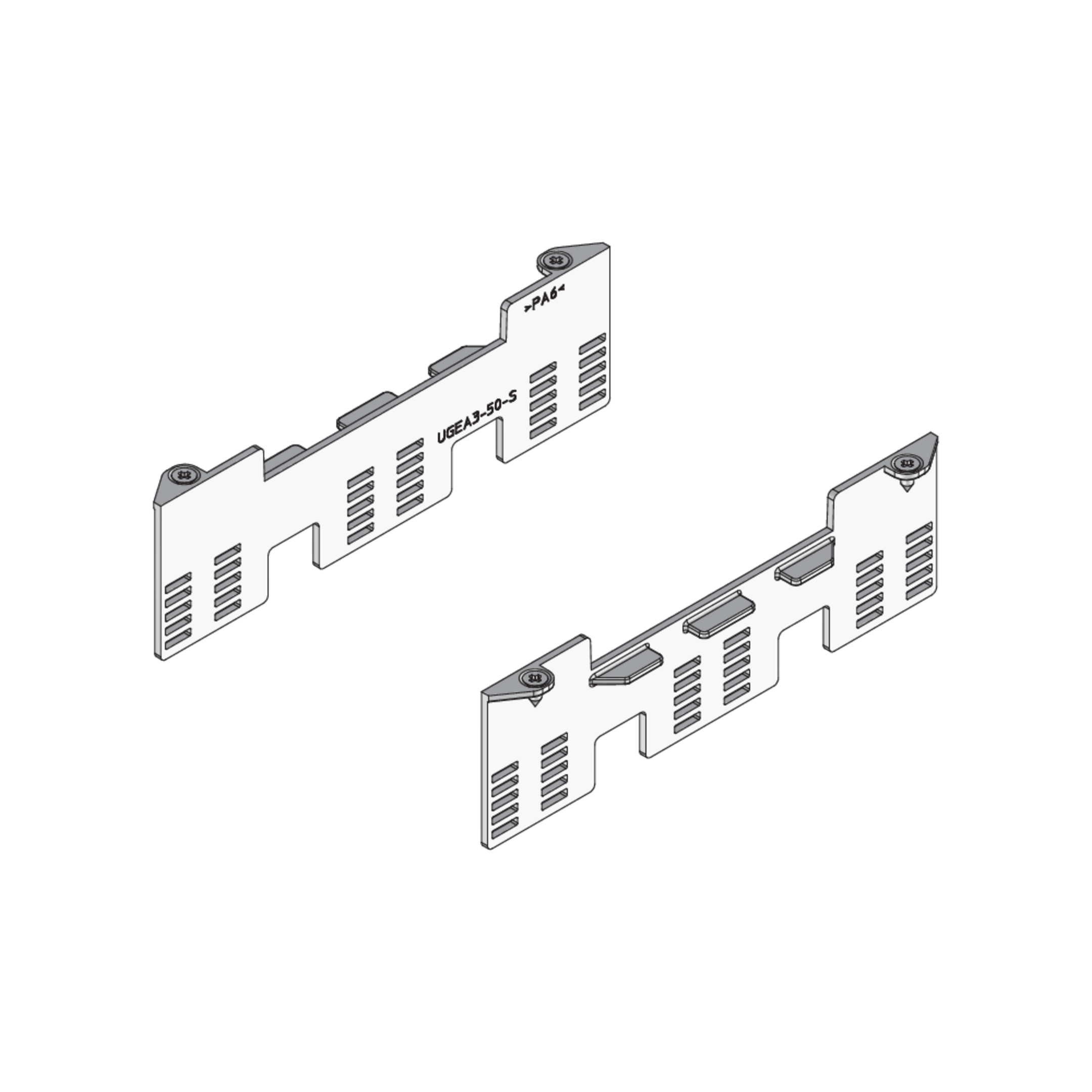

  • UGEA3-50-S
    installation frame,
    height
    56 mm
    width
    186 mm
    maximum number of installable device casings
    3
    color
    Graphite black
    lock-in range
    20 mm
    RAL-Nummer
    9011
    Weight per storage unit
    0.050 kg
    More information

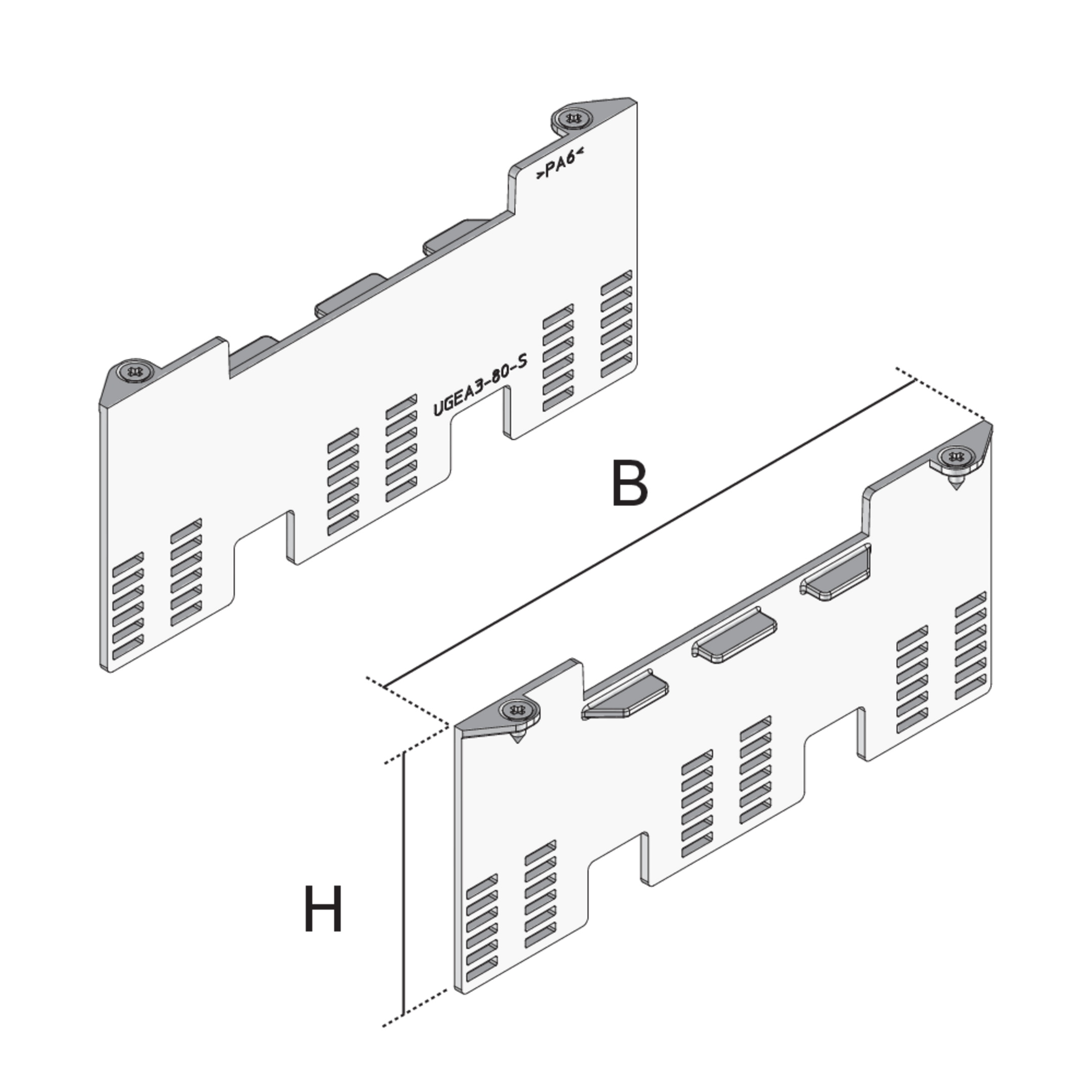

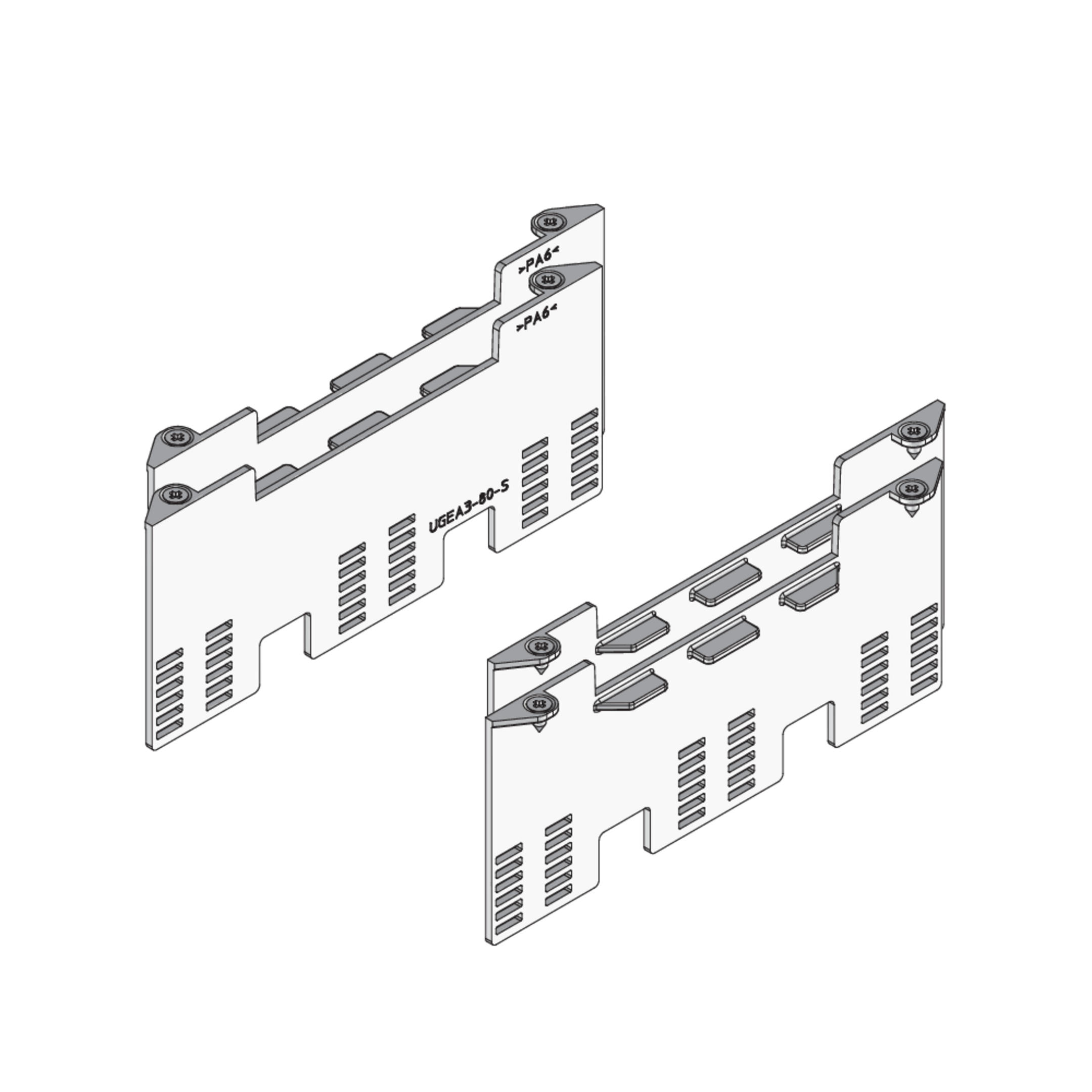

  • UGEA3-80-S
    installation frame,
    height
    81 mm
    width
    186 mm
    maximum number of installable device casings
    3
    color
    Graphite black
    lock-in range
    25 mm
    RAL-Nummer
    9011
    Weight per storage unit
    0.078 kg
