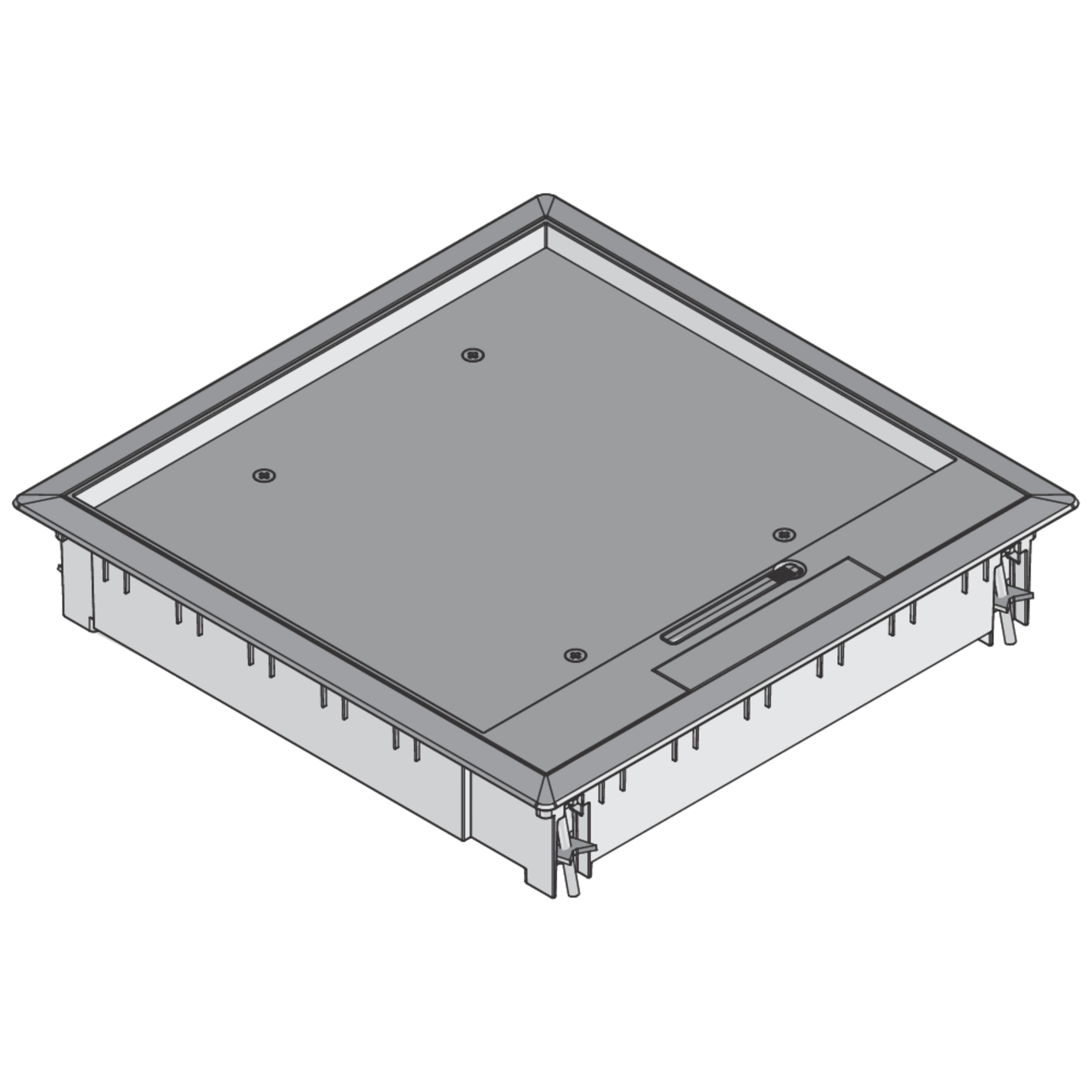

UEK3 V

Plastic hinged cover unit, 3x, angular

UEK3 V installation units are angular, plastic hinged cover units with carpet protection frames that are used in dry-cleaned rooms in assembly covers, UBDHB floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to lower three mounting boxes by max. 30 mm. The units have floor-level brush cable outlets that swivel 180°, opening levers and universal claw sets. The covers and frames are made of polyamide in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition and an IP protection rating of IP 20 when used. They have a minimum installation height of 63 mm, a maximum load of 2 kN and installation dimensions of 260 x 260 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

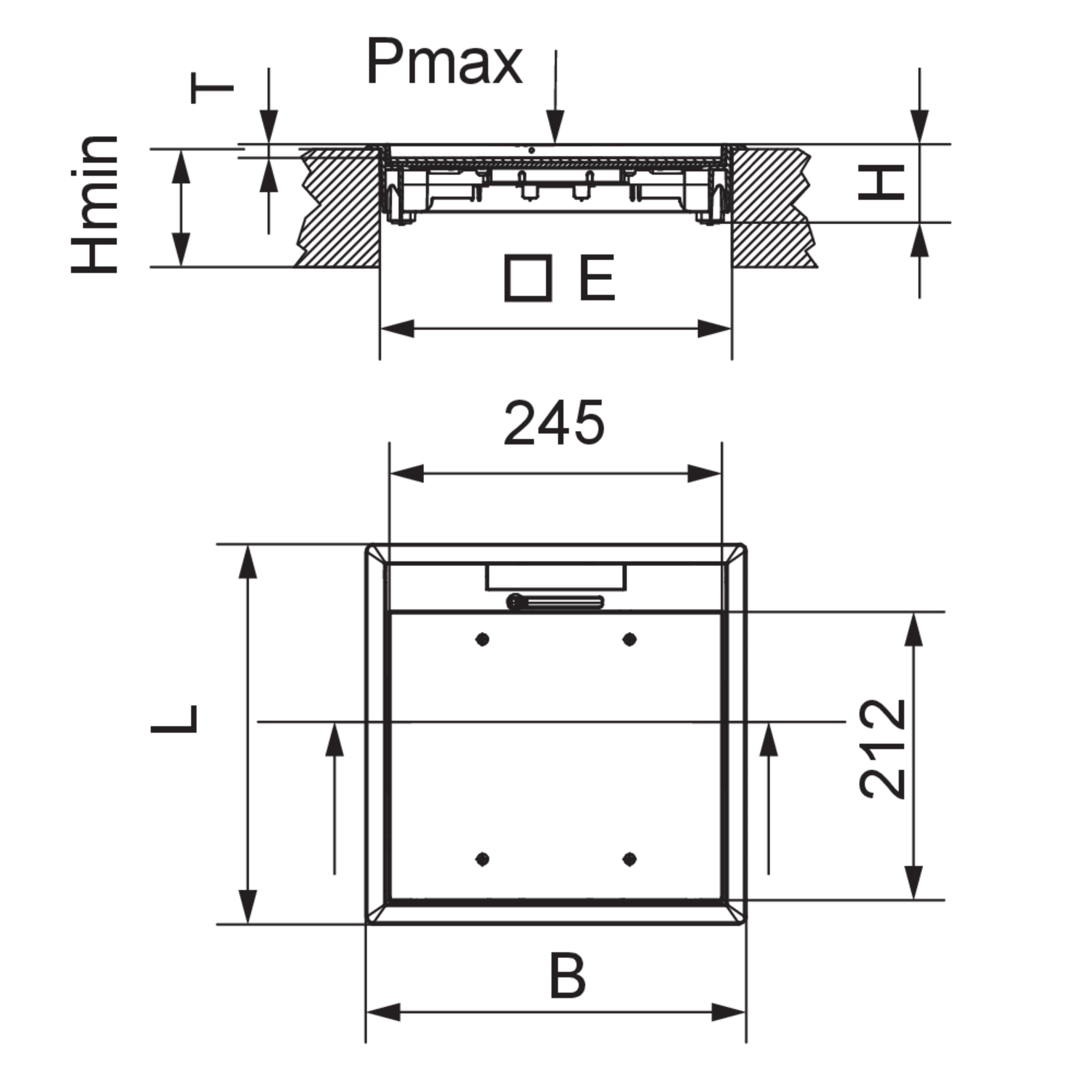

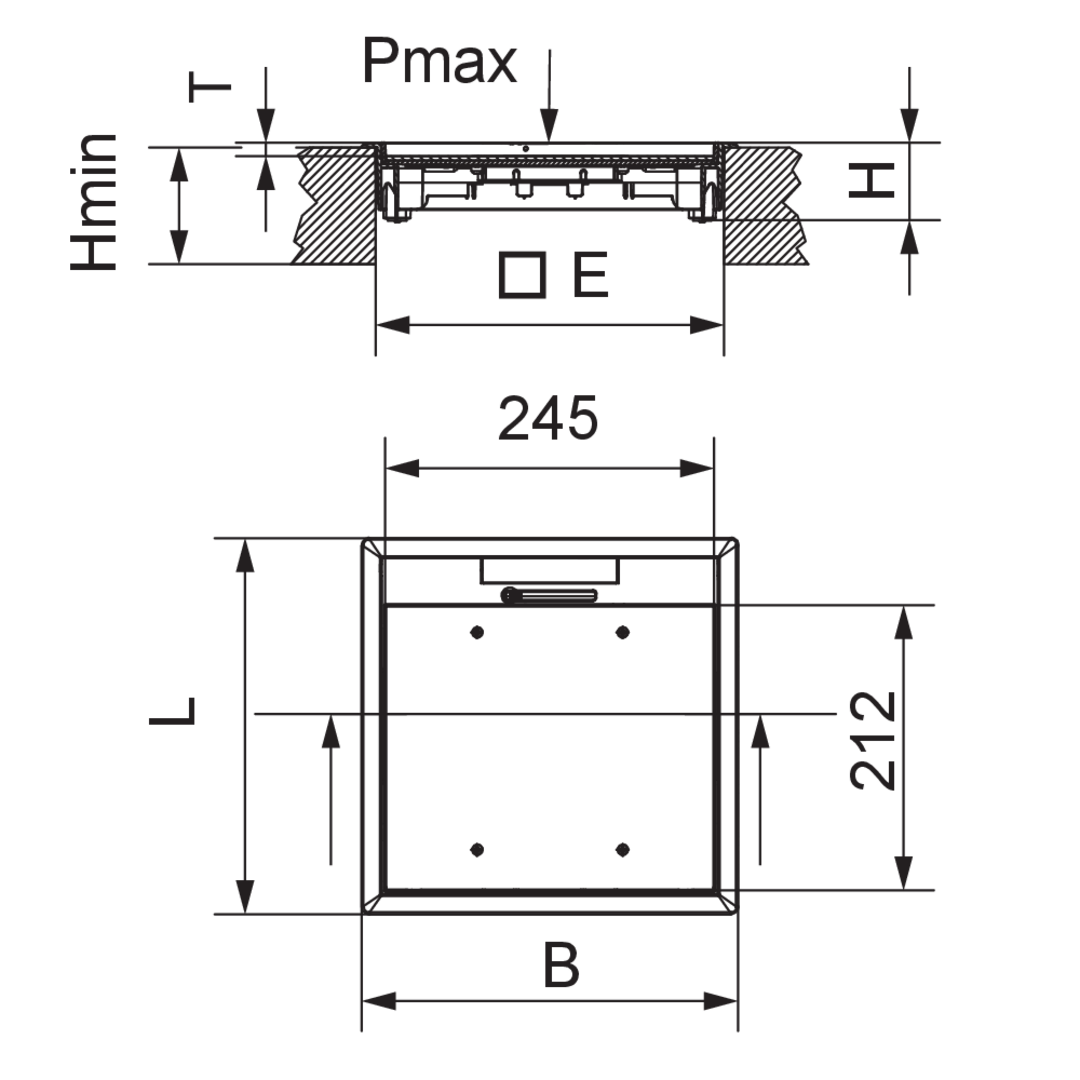

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

  • UEK3-V-G
    installation unit,
    height
    58 mm
    minimum installation height
    63 mm
    width
    280 mm
    length
    280 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    260 x 260 mm
    color
    RAL 7011 (iron gray)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    Weight per storage unit
    1.797 kg
    Included accessories
    More information
  • UEK3-V-S
    installation unit,
    height
    58 mm
    minimum installation height
    63 mm
    width
    280 mm
    length
    280 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    260 x 260 mm
    color
    RAL 9011 (graphite black)
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    Weight per storage unit
    1.797 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP, 13.12 MB

    DownloadDownload

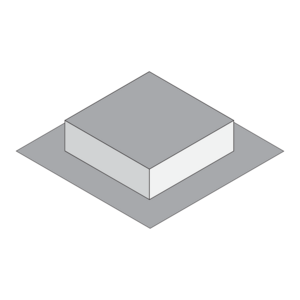

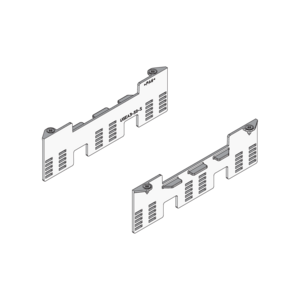

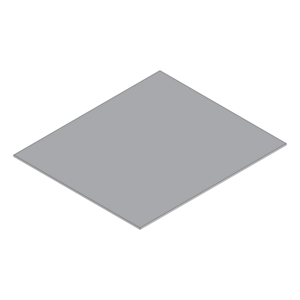

Included accessories
