UGE3 VRK

Mounting box insert, 3x, for plastic units

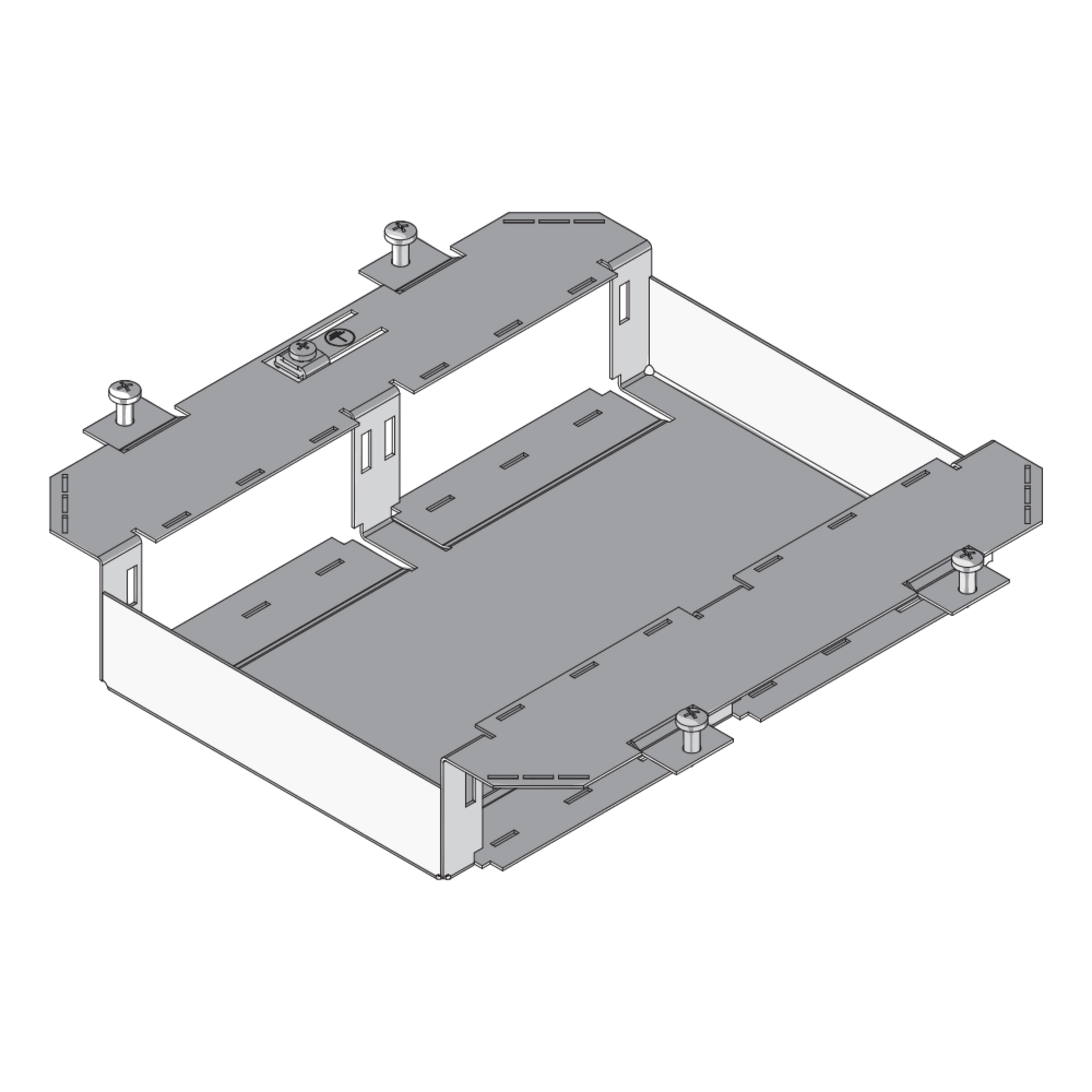

The UGE3 VRK components are service outlets with side panels that can be bolted into plastic installation units. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

data jacks

Max. number of installable data jacks

Installation devices

Max. number of installation devices

G

Weight per storage unit

Included accessories
  • UGE3-VRK 4
    device insert UGE3-VE 8, for triple
    height
    48 mm
    minimum installation height
    64 mm
    width
    222 mm
    length
    231 mm
    Max. number of installable data jacks
    6
    Max. number of installation devices
    4x 45x45 mm
    Weight per storage unit
    0.552 kg
    Included accessories
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

Included accessories
