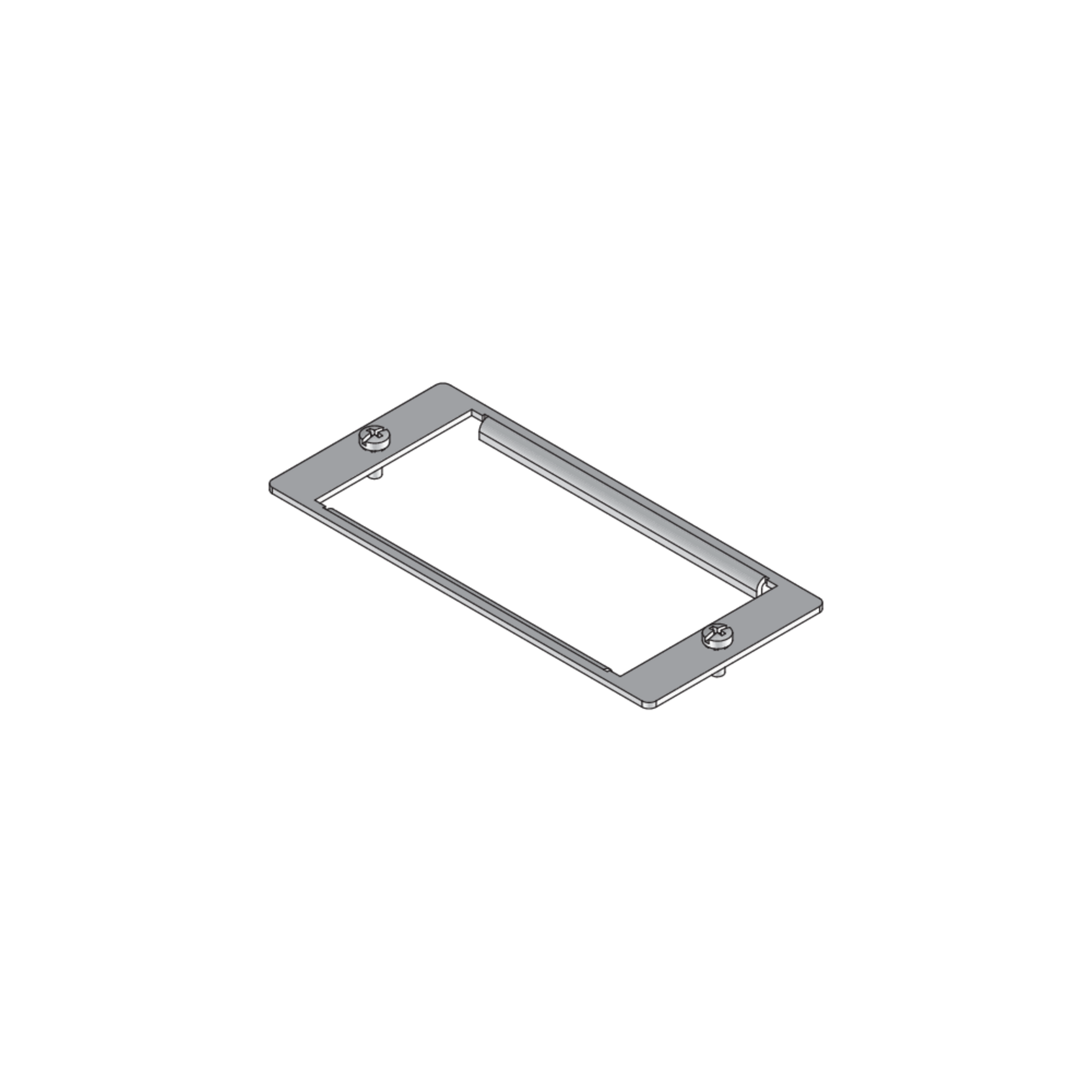

Mounting board, sockets

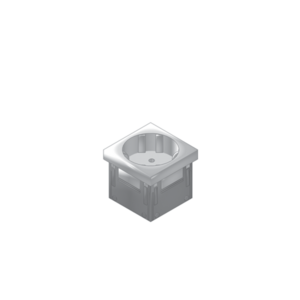

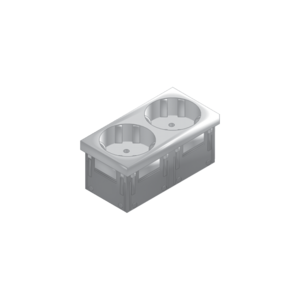

UEP160 UST components are built-in circuit boards from the underfloor system product range. These accessories are bolted into compact single outlets and used to accommodate up to two installation devices with dimensions 45x45 mm. The circuit boards are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

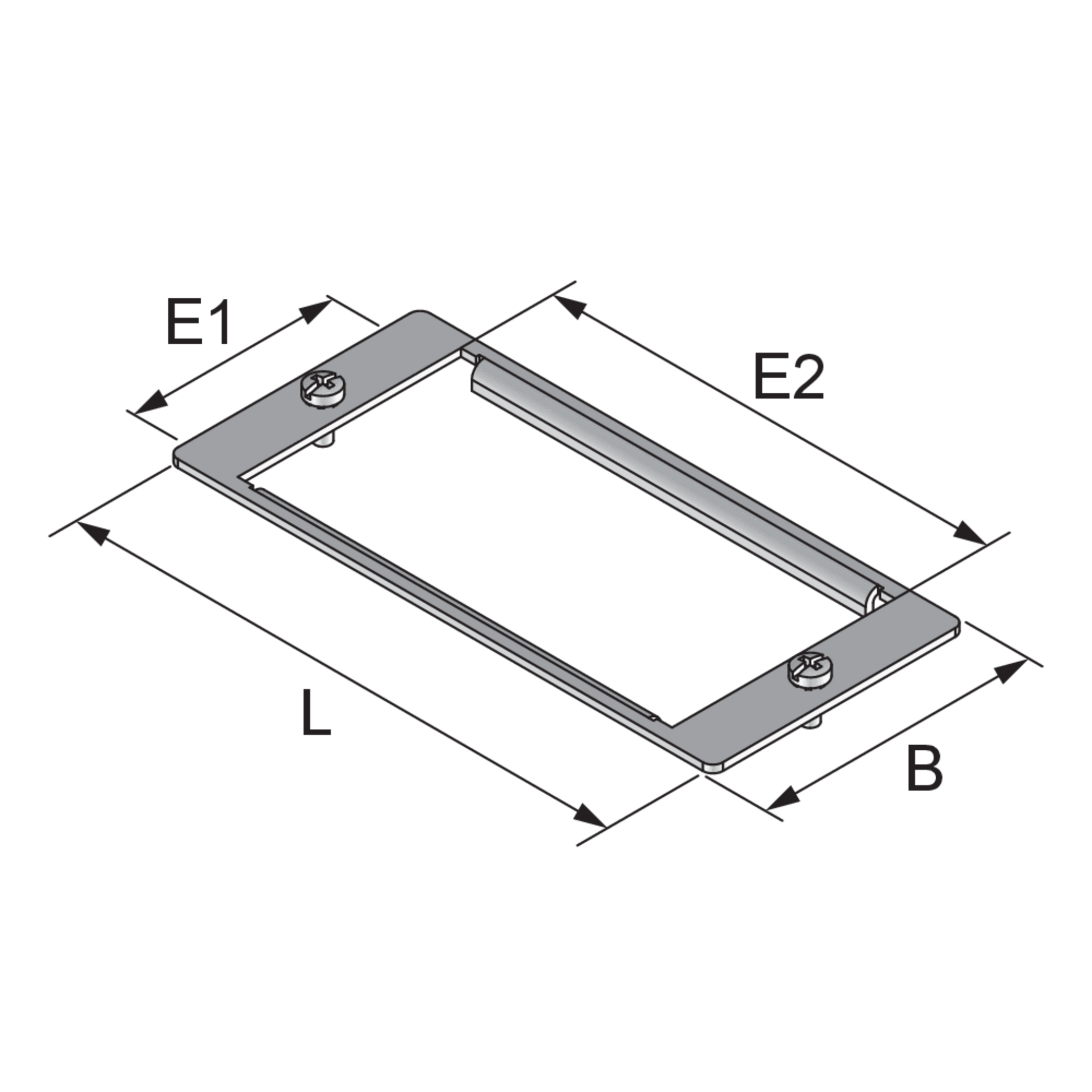

B
width
L
length
E1
fitting dimension E1
E2
fitting dimension E2
G
Weight per storage unit
