UAA B

Cover, dummy

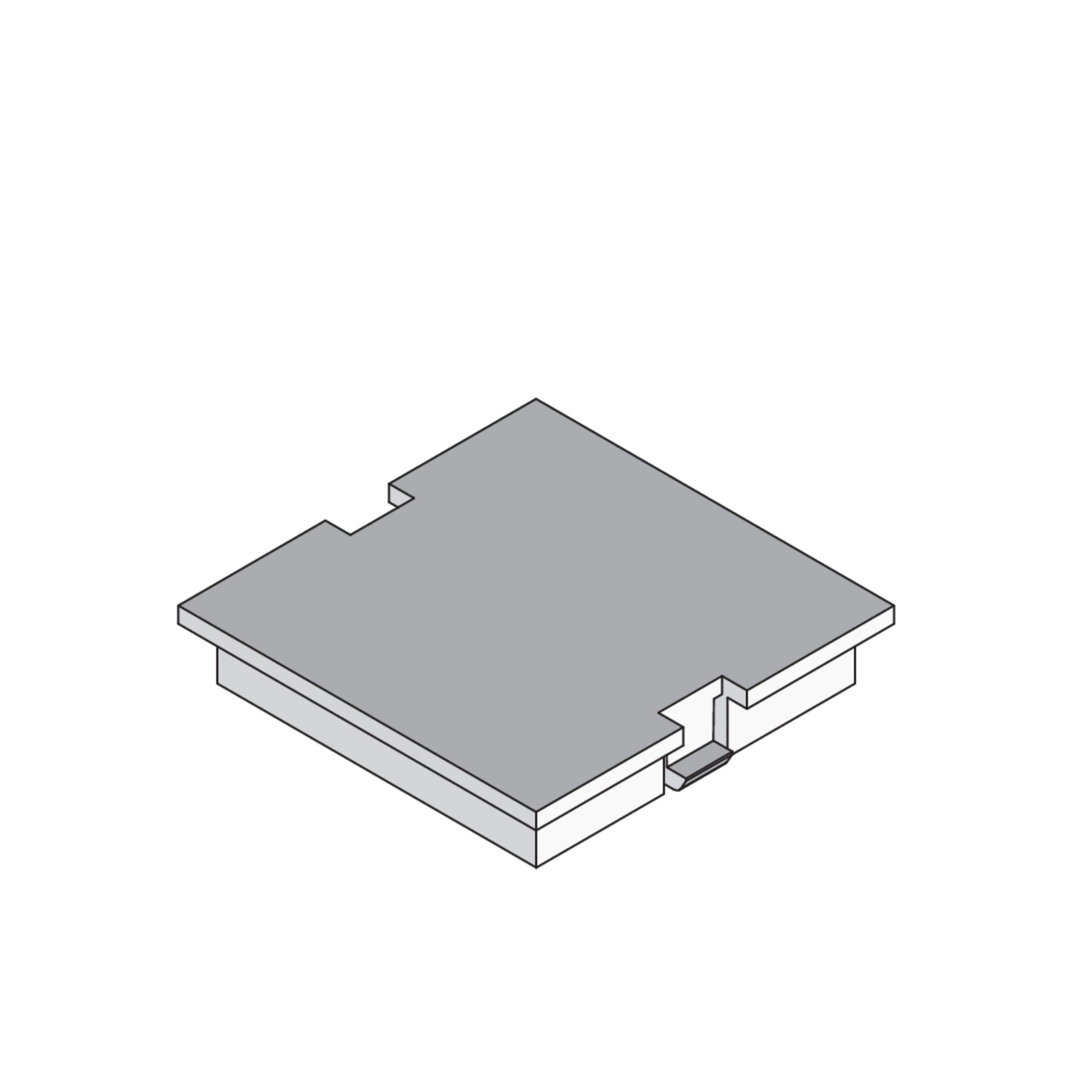

UAA B components from the underfloor systems range are one-piece dummy covers. The square covers are used to cover empty spaces in UA cover plates as long as they are not equipped with the corresponding installation devices. This could be a 45x45 mm installation device or suitable suspension bracket installation devices. The snap-on covers are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They have a matt surface and are available with various installation dimensions.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

B

width

L

length

E1

fitting dimension E1

E2

fitting dimension E2

colour

color

RAL

RAL-Nummer

G

Weight per storage unit

  • UAA-B 45
    cover UAA-B 45, dummy single
    width
    45 mm
    length
    45 mm
    fitting dimension E1
    40,5 mm
    fitting dimension E2
    40,5 mm
    color
    Graphite black
    RAL-Nummer
    9011
    Weight per storage unit
    0.008 kg
    More information
  • UAA-B 50
    cover UAA-B 50, dummy for boring
    width
    53 mm
    length
    53 mm
    fitting dimension E1
    48 mm
    fitting dimension E2
    48 mm
    color
    Graphite black
    RAL-Nummer
    9011
    Weight per storage unit
    0.008 kg
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085
