UST45 2

Socket, 2x

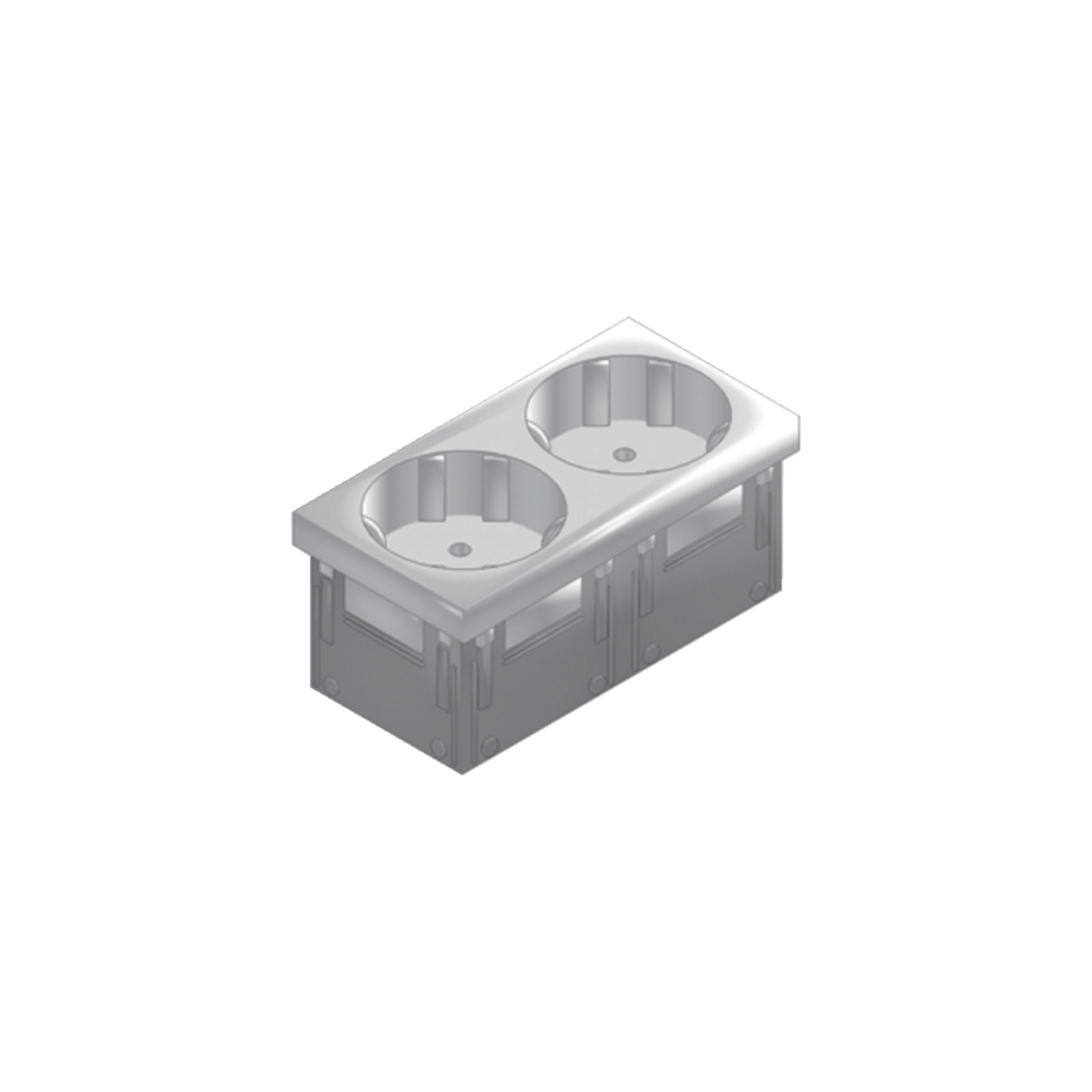

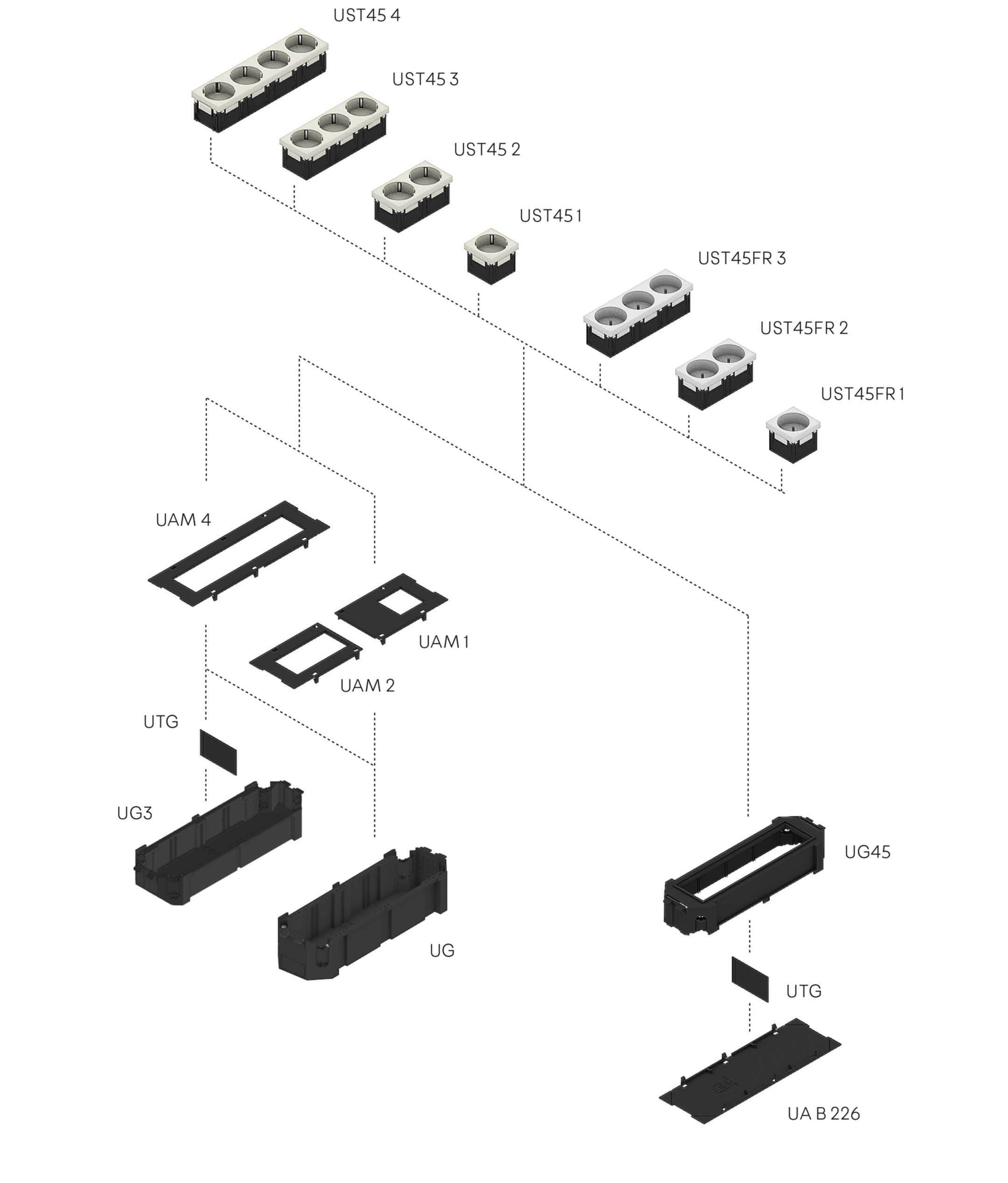

The UST45 2 components are one-piece, 2-way protective sockets in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touchDownload datasheet

Variants

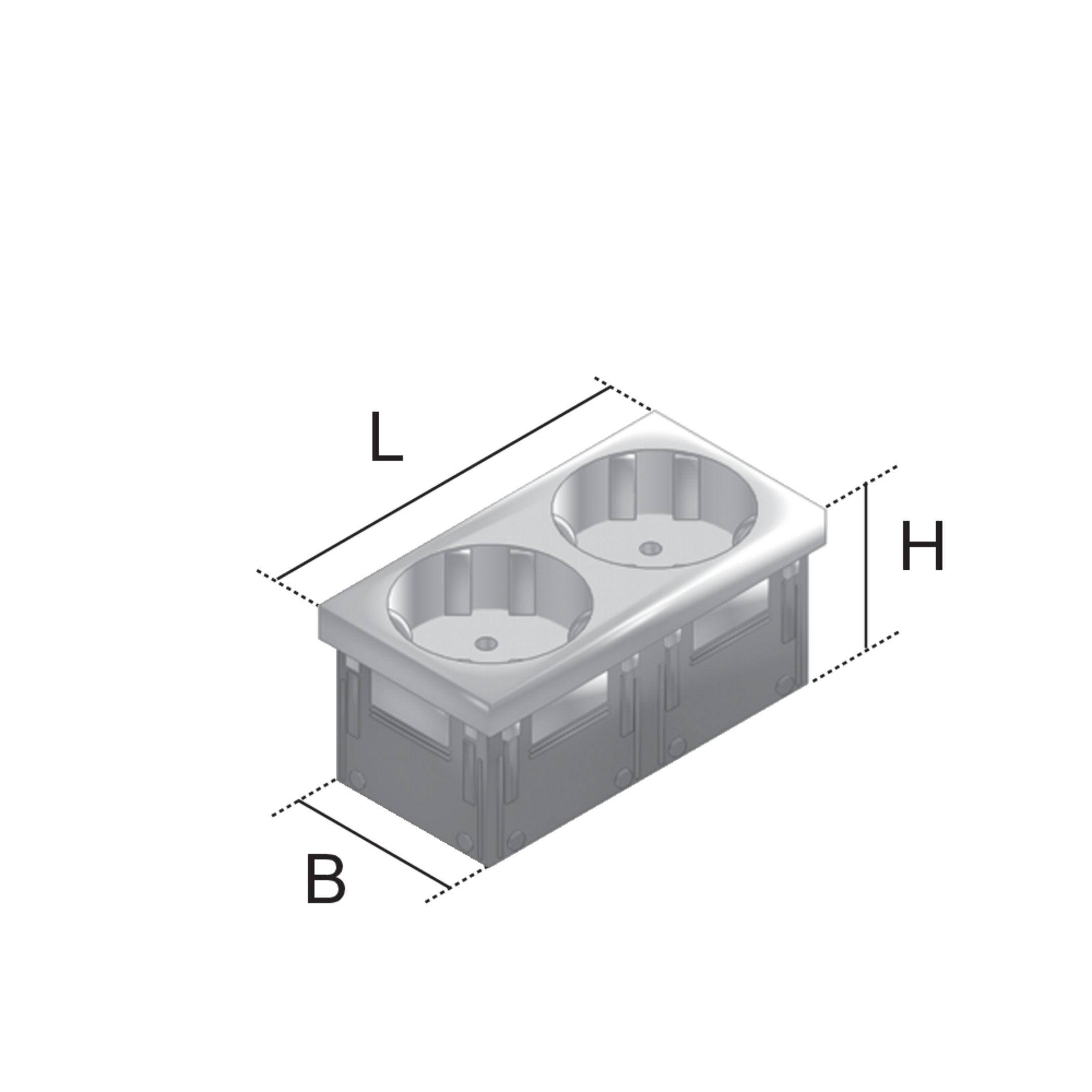

Article

H

height

B

width

L

length

colour

color

Ws

plug angle

RAL

RAL-Nummer

G

Weight per storage unit

  • UST45-G 2
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    Mint green
    plug angle
    33 °
    RAL-Nummer
    6029
    Weight per storage unit
    0.072 kg
    More information
  • UST45-O 2
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    Pure orange
    plug angle
    33 °
    RAL-Nummer
    2004
    Weight per storage unit
    0.072 kg
    More information
  • UST45-R 2
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    Ruby red
    plug angle
    33 °
    RAL-Nummer
    3003
    Weight per storage unit
    0.072 kg
    More information
  • UST45-W 2
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    Pure white
    plug angle
    33 °
    RAL-Nummer
    9010
    Weight per storage unit
    0.072 kg
    More information
