UEBDSM1-2 V WD

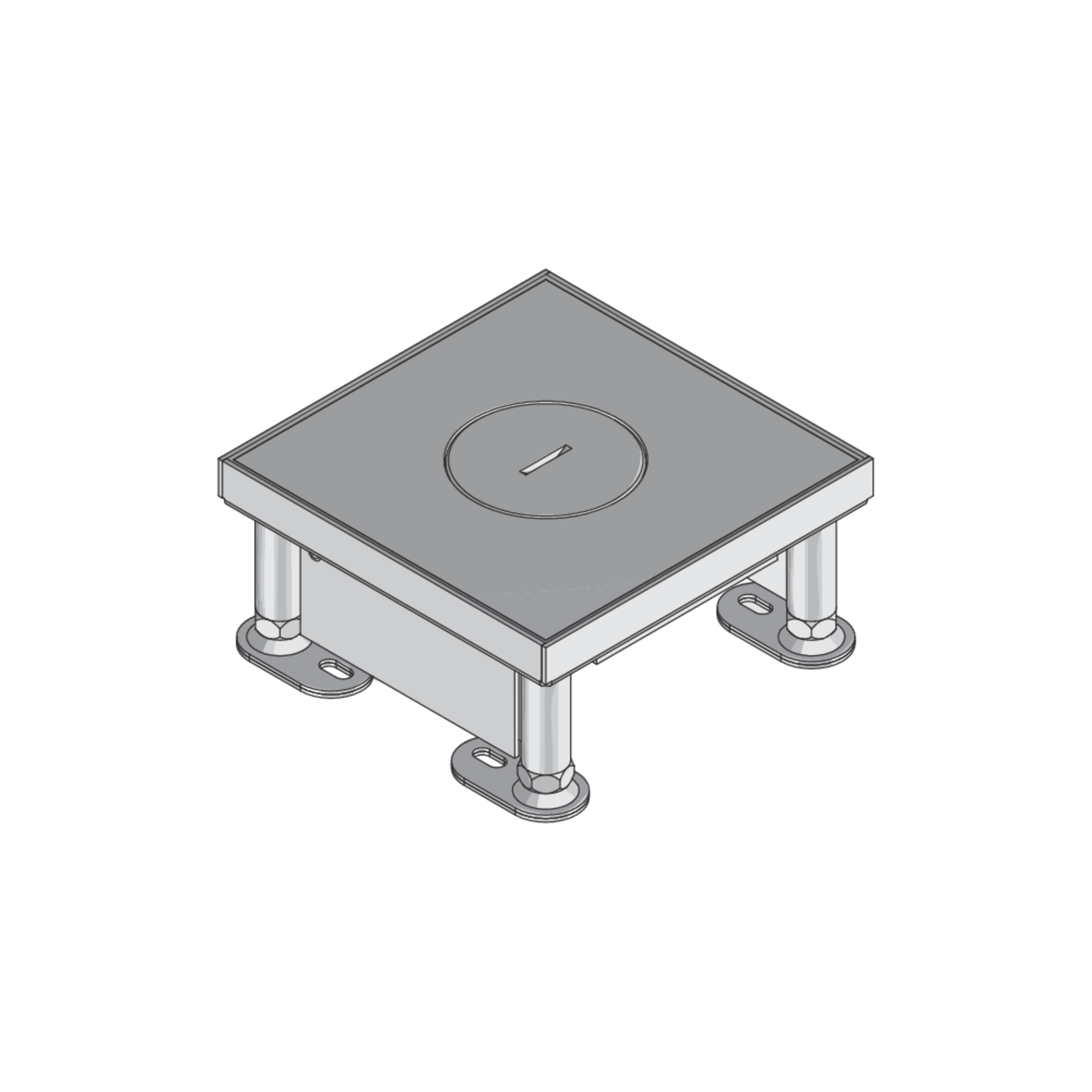

Stainless steel heavy-duty tube cover single outlet cartridge, 2x, angular

UEBDSM1-2 V WD elements are height-adjustable cartridge mounting frames with heavy-duty tube covers. The square single outlets with abutting edges are used to accommodate two installation devices. They are suitable for installation in floor sockets and raised or false floor openings in wet-cleaned rooms with office traffic loads. The cartridges and frames are made of stainless steel (V2A) and the substructures of hot-dip galvanised sheet steel. They have a flat, blasted surface. They have an IP protection rating of IP 22 when used and IP 54 in an unused condition.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

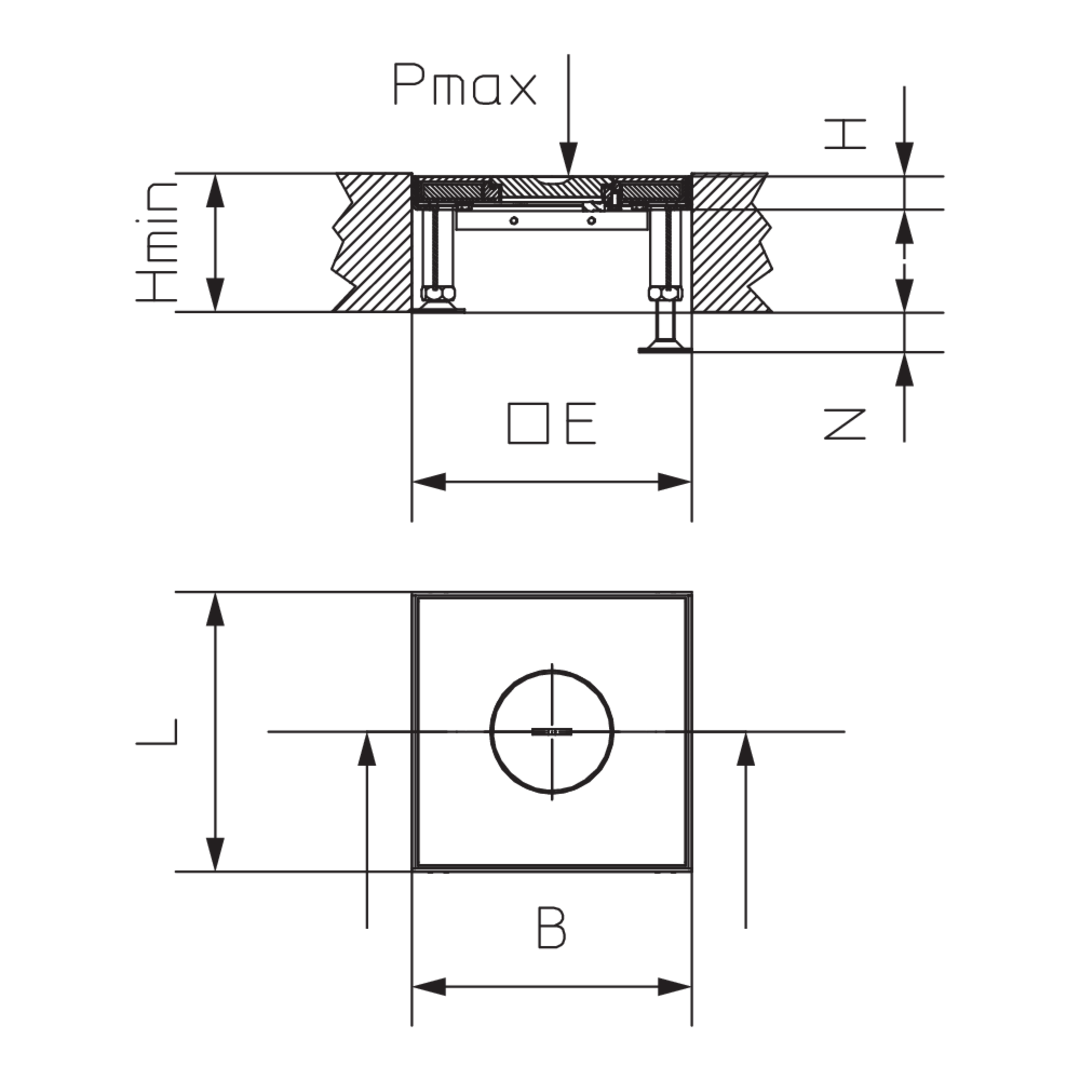

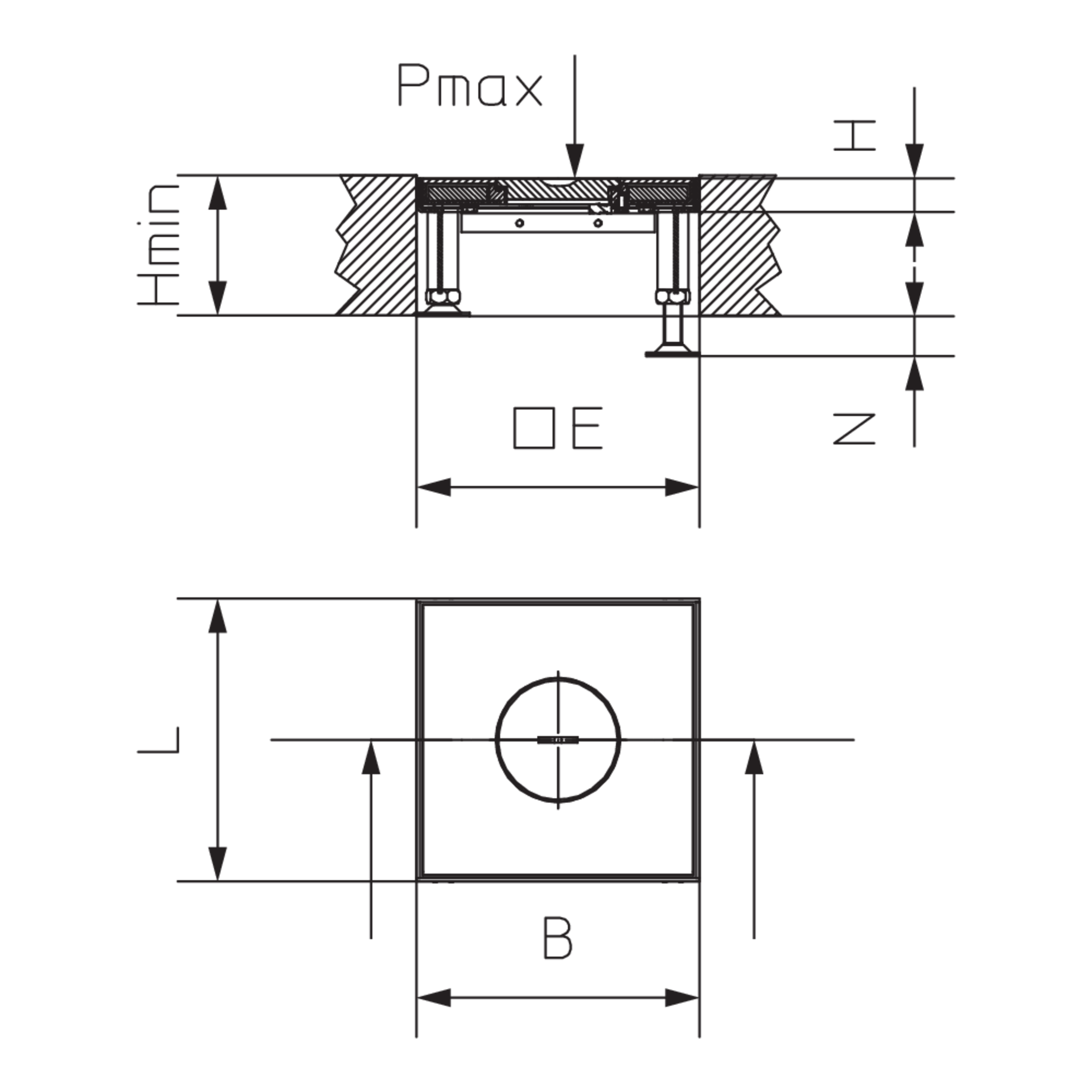

height

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • UEBDSM1-2 15-V8-WD
    heavy duty single outlet,
    height
    19 mm
    minimum installation height
    80 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    20.00 kN
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Weight per storage unit
    3.186 kg

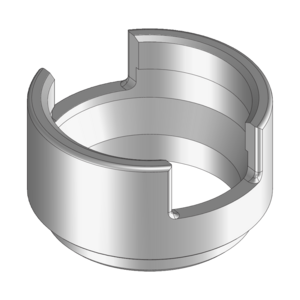

    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 130 mm: 20 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
