Stainless steel heavy-duty dummy cover unit, 3x, round

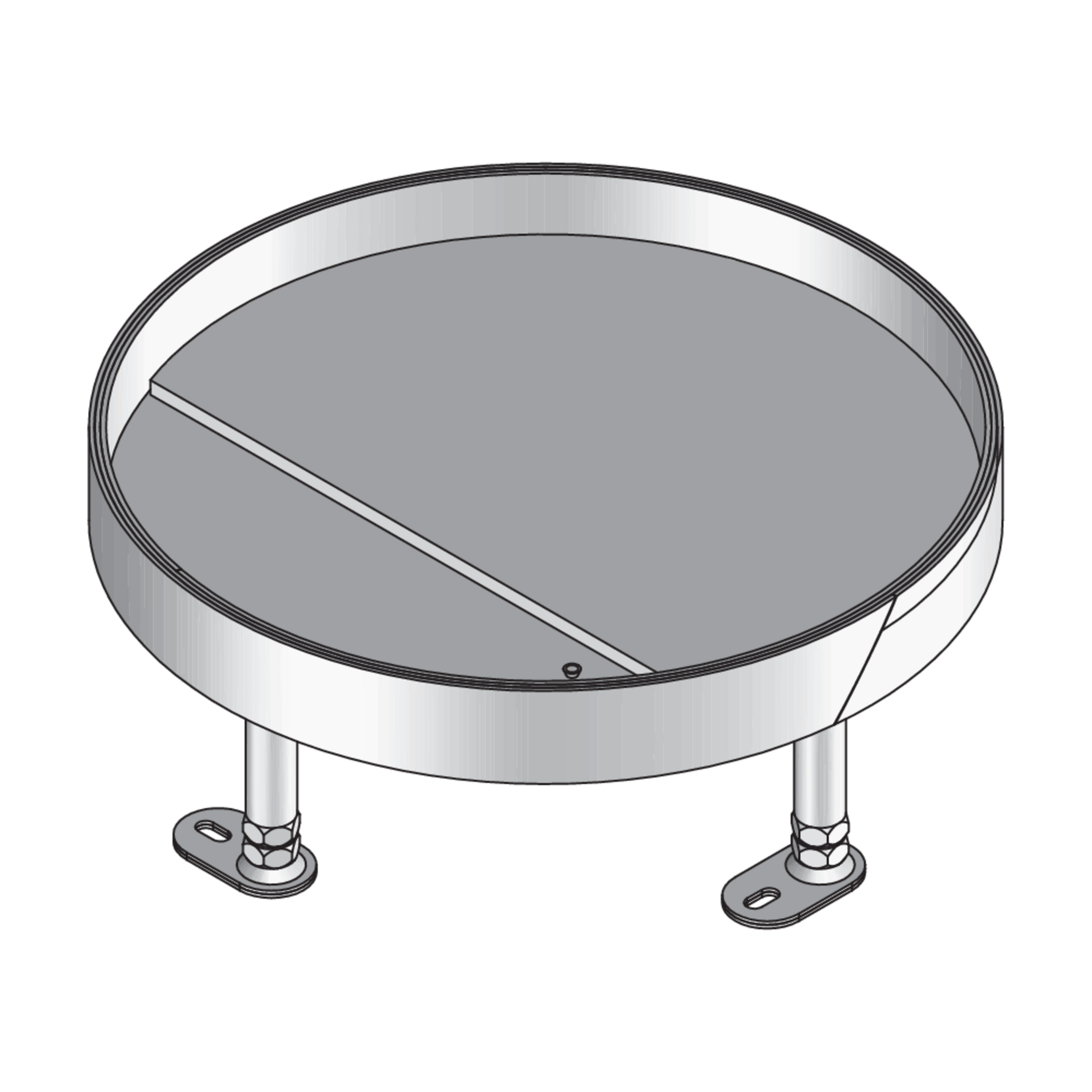

UEBDS R E installation units are round dummy cover units with abutting edges. They consist of height-adjustable mounting frames with a dummy heavy-duty cartridge, a rubber seal and the UGEAR-ELS earthing bracket. The components are suitable for use in wet-cleaned rooms with high traffic loads and are installed in assembly covers, UBDHB floor sockets and raised or false floor openings.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

Hmin

minimum installation height

N

levelling range

D

diameter

Pmax

maximum load

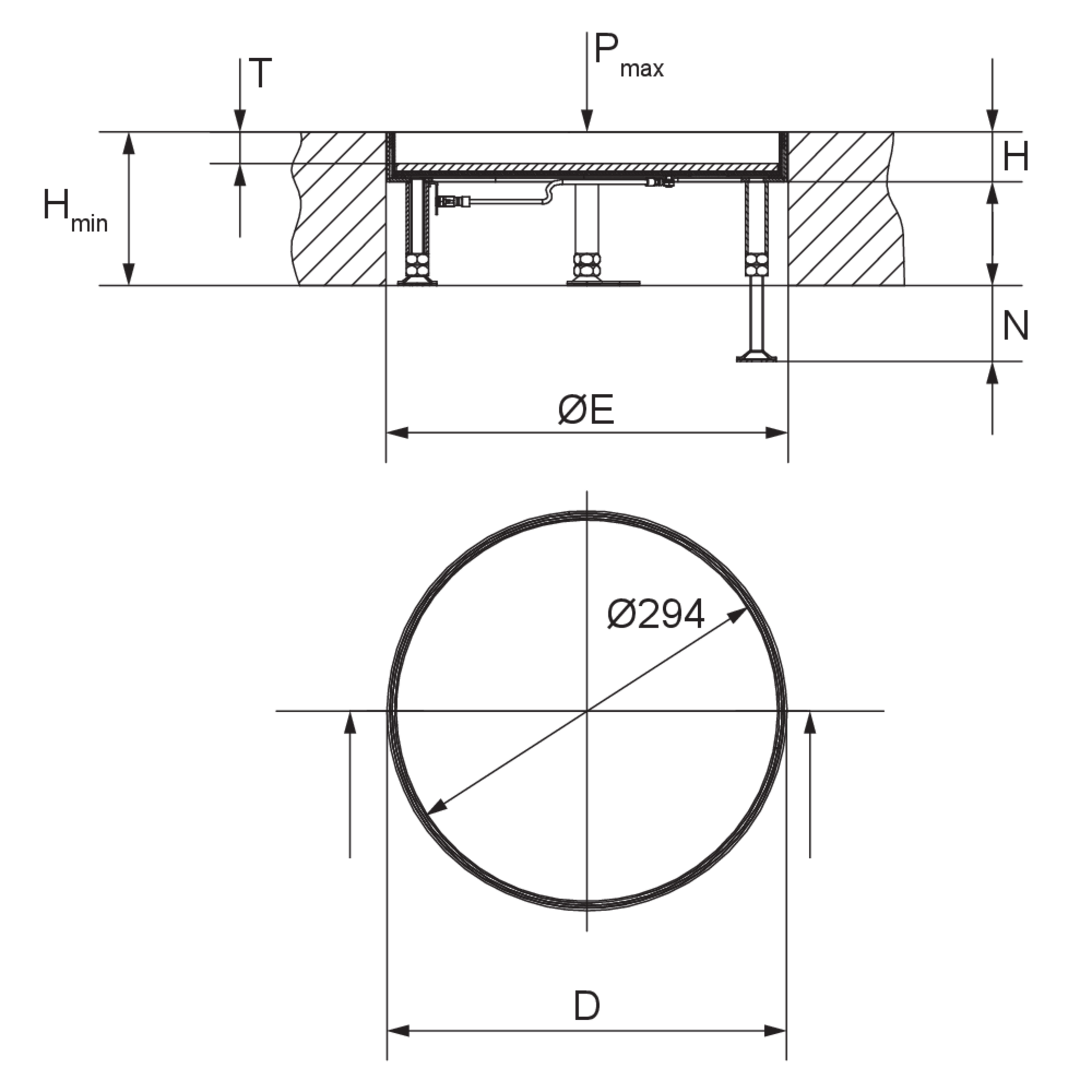

ØE

fitting dimension round

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDS 25-R6 E
    Heavy duty cassette unit,
    height
    29 mm
    minimum installation height
    110 mm
    levelling range
    55 mm
    diameter
    307 mm
    maximum load
    20.00 kN
    fitting dimension round
    304 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    16 mm
    Weight per storage unit
    5.862 kg
    Included accessories
    More information
  • UEBDS 35-R6 E
    heavy duty cartridge unit,
    height
    38 mm
    minimum installation height
    117 mm
    levelling range
    55 mm
    diameter
    305 mm
    maximum load
    20.00 kN
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    24 mm
    Weight per storage unit
    7.161 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 130 mm: 20 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP (13.12 MB)

    DownloadDownload
