SRF

Foot attachment

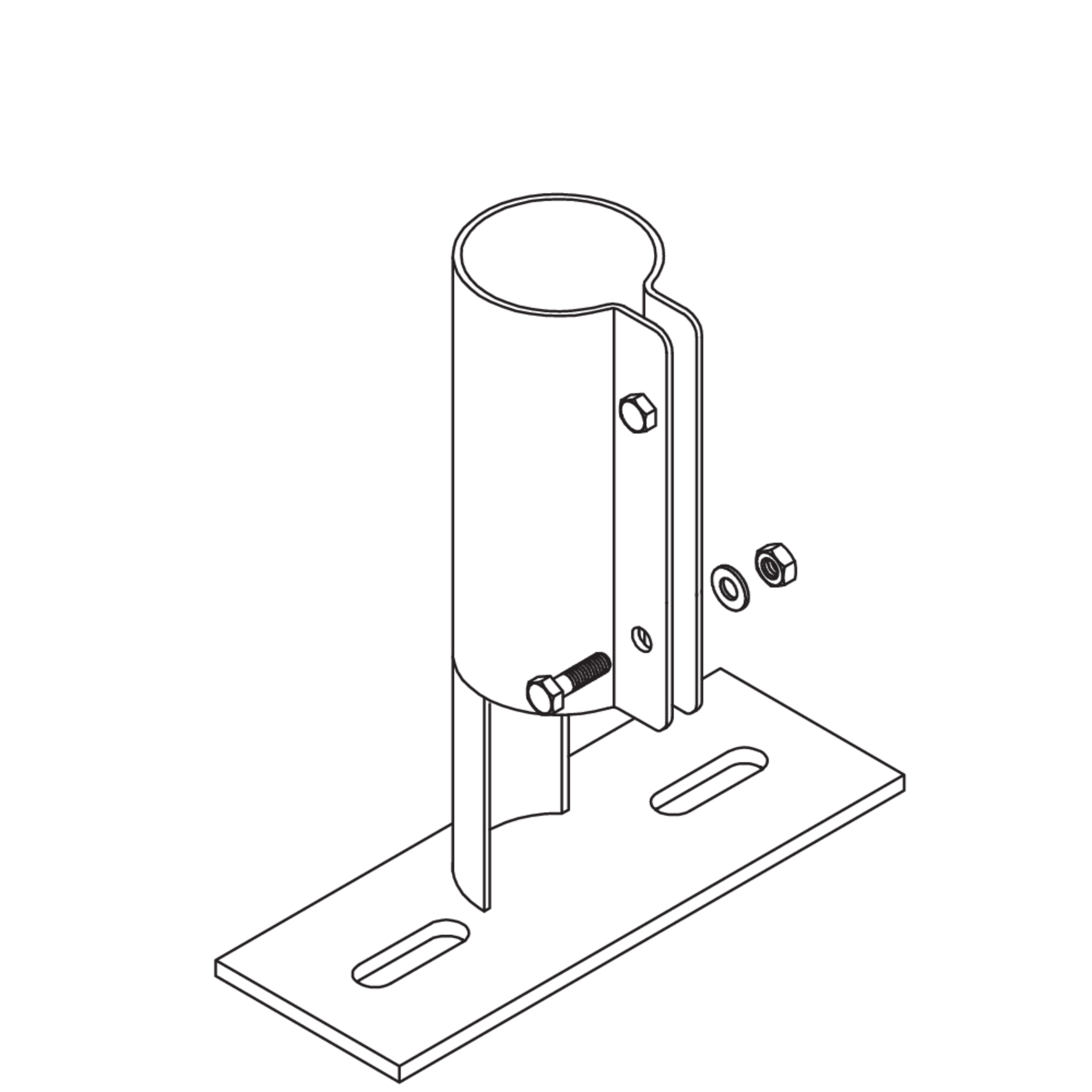

The base bracket SRF with slots is used to fasten the protective tube system to the building structure for safely routing cables in and out. It is available in diameters of 30 or 60 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

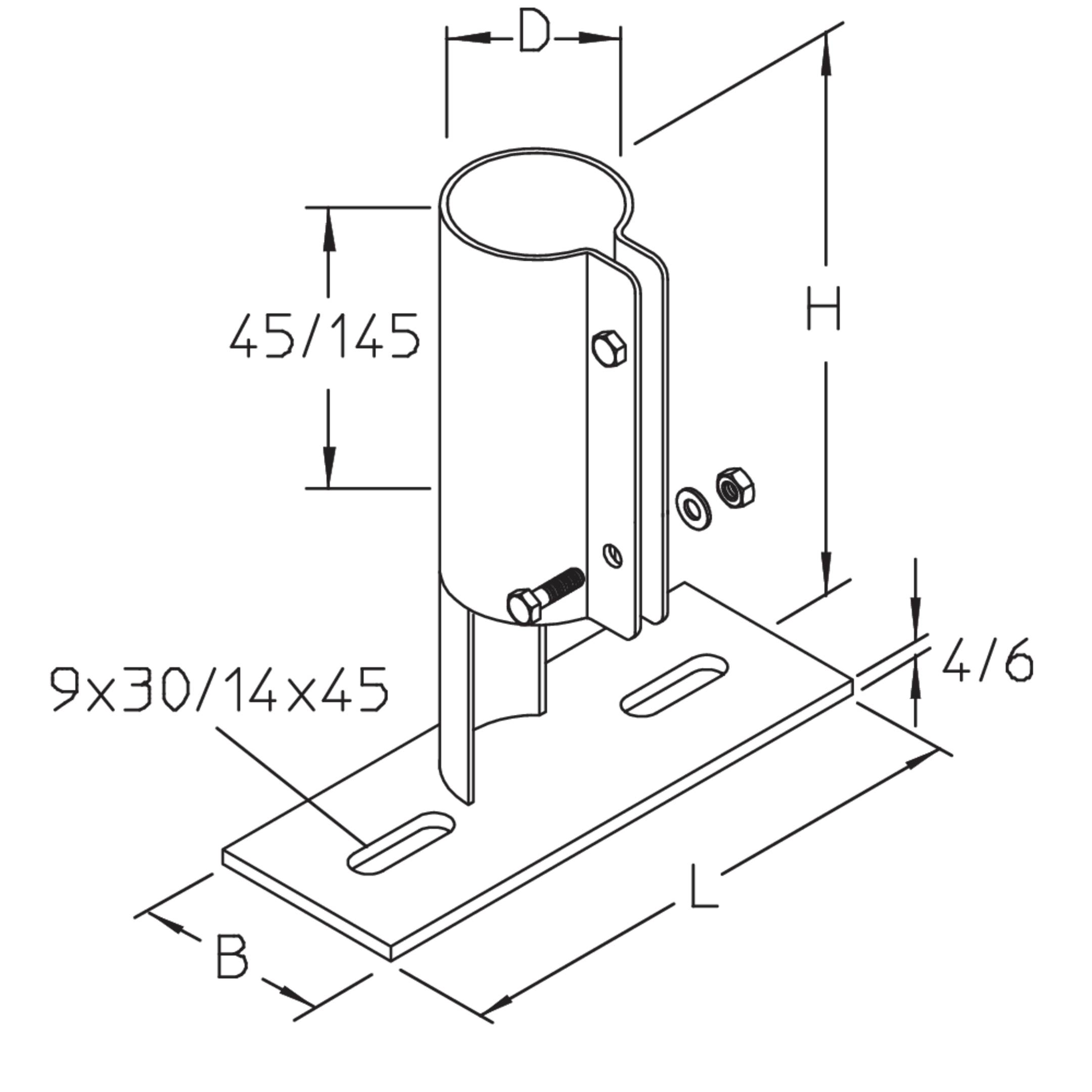

Article

H

height

B

width

L

length

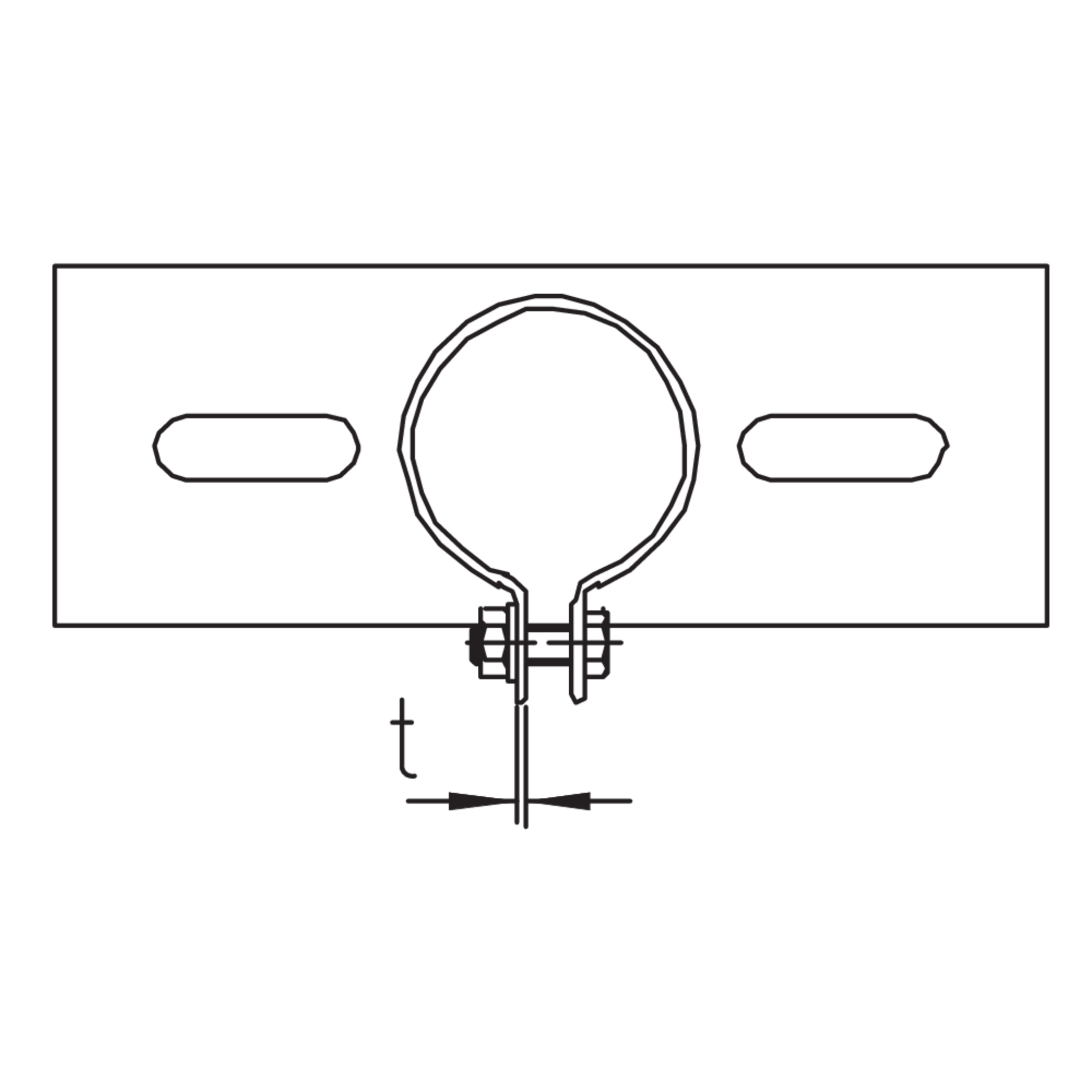

t

material thickness

D

Diameter (mm)

G

Weight per storage unit

  • SRF 30F
    floor fastening system SRF 30F
    height
    130 mm
    width
    40 mm
    length
    130 mm
    material thickness
    1.50 mm
    Diameter (mm)
    31 mm
    Weight per storage unit
    0.280 kg
    More information
  • SRF 60F
    floor fastening system SRF 60F
    height
    230 mm
    width
    80 mm
    length
    220 mm
    material thickness
    2.50 mm
    Diameter (mm)
    61 mm
    Weight per storage unit
    1.750 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

D

Diameter (mm)

G

Weight per storage unit

  • SRF 30E
    floor fastening system SRF 30E
    height
    130 mm
    width
    40 mm
    length
    130 mm
    material thickness
    1.50 mm
    Diameter (mm)
    31 mm
    Weight per storage unit
    0.280 kg
    More information
  • SRF 60E
    floor fastening system SRF 60E
    height
    230 mm
    width
    80 mm
    length
    220 mm
    material thickness
    2.50 mm
    Diameter (mm)
    61 mm
    Weight per storage unit
    1.750 kg
    More information
