Art.-Nr. SRB 45-60E

tube bow SRB 45-60E

Bend, 45°

The tube bend SRB 45 is used for routing cables round bends of 45° safely and gently. It is available in diameters of 30 or 60 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.
SRB 45-60E
height
350 mm
width
100 mm
material thickness
2.00 mm
Diameter (mm)
60 mm
radius
150 mm
Angle
45°
Weight per storage unit
1.050 kg
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

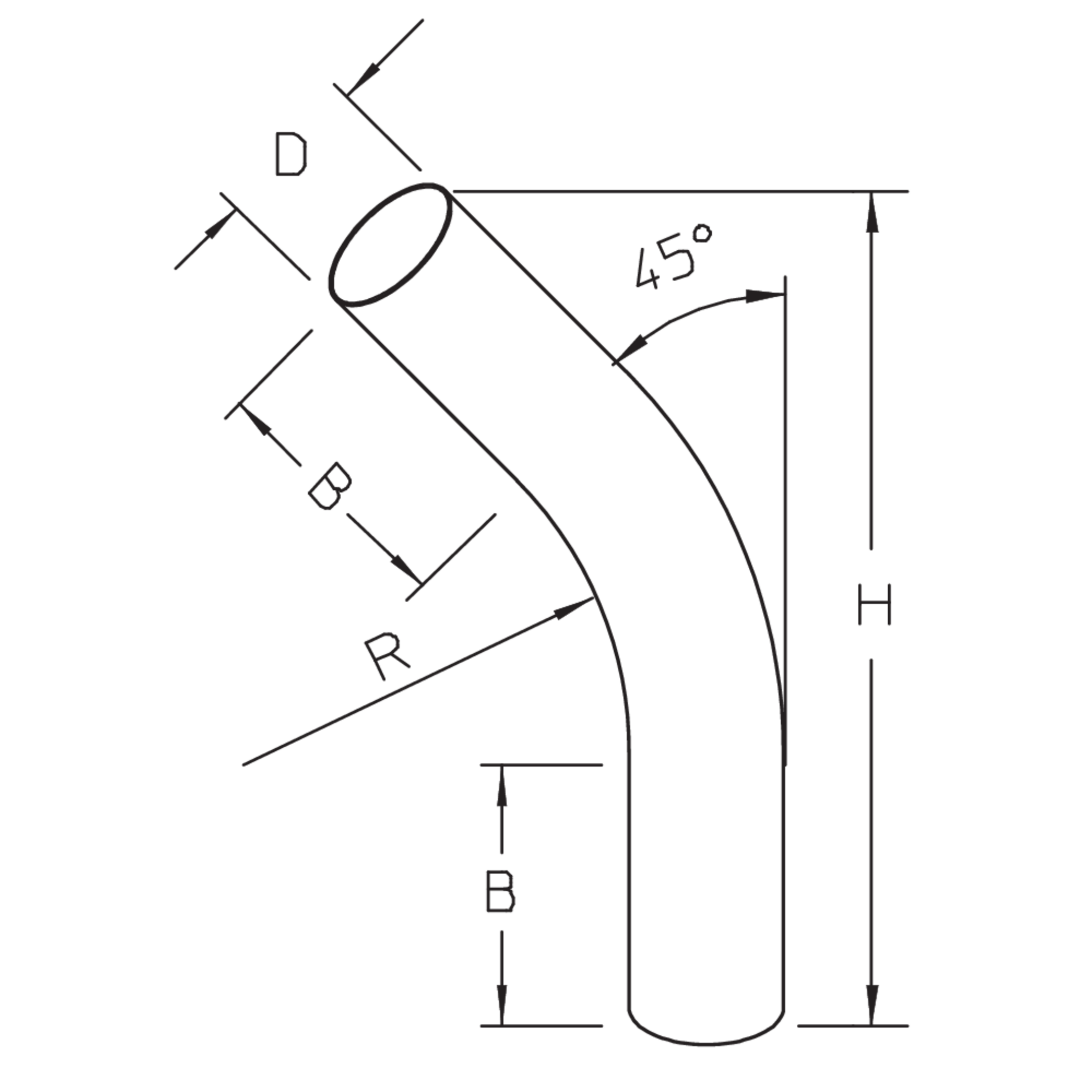

Article

H

height

B

width

t

material thickness

D

Diameter (mm)

R

radius

W

Angle

G

Weight per storage unit

  • SRB 45-30F
    tube bow SRB 45-30F
    height
    270 mm
    width
    100 mm
    material thickness
    1.50 mm
    Diameter (mm)
    30 mm
    radius
    140 mm
    Angle
    45°
    Weight per storage unit
    0.300 kg
    More information
  • SRB 45-60F
    tube bow SRB 45-60F
    height
    350 mm
    width
    100 mm
    material thickness
    2.00 mm
    Diameter (mm)
    60 mm
    radius
    150 mm
    Angle
    45°
    Weight per storage unit
    1.050 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

t

material thickness

D

Diameter (mm)

R

radius

W

Angle

G

Weight per storage unit

  • SRB 45-30E
    tube bow SRB 45-30E
    height
    270 mm
    width
    100 mm
    material thickness
    1.50 mm
    Diameter (mm)
    30 mm
    radius
    140 mm
    Angle
    45°
    Weight per storage unit
    0.300 kg
    More information
  • SRB 45-60E
    tube bow SRB 45-60E
    height
    350 mm
    width
    100 mm
    material thickness
    2.00 mm
    Diameter (mm)
    60 mm
    radius
    150 mm
    Angle
    45°
    Weight per storage unit
    1.050 kg
    More information
