SKL A

Beam clamp set

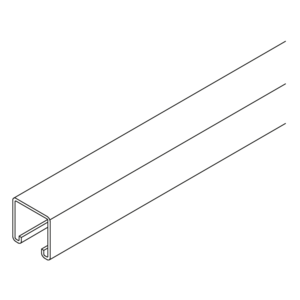

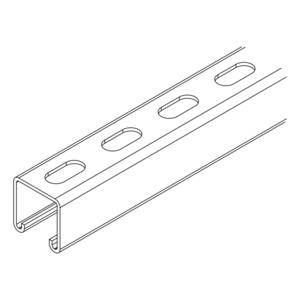

The beam clamp set SKL A can be combined with mounting channels A 41 or KHA/KHAL 41. It is used to fix KDU and KDI bracket supports to steel beams. The set can be loaded up to 10 kN. The clamping range extends from 5 - 25 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKL AF
    Beam clamps SKL AF
    maximum load
    10.00 kN
    torque
    35 Nm
    clamping range
    5 - 25 mm
    Weight per storage unit
    0.499 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKL AE4
    Beam clamps SKL AF
    maximum load
    10.00 kN
    torque
    35 Nm
    clamping range
    5 - 25 mm
    Weight per storage unit
    0.487 kg
    Included accessories
    More information
