SINTON® Z

For prefabricated staircases

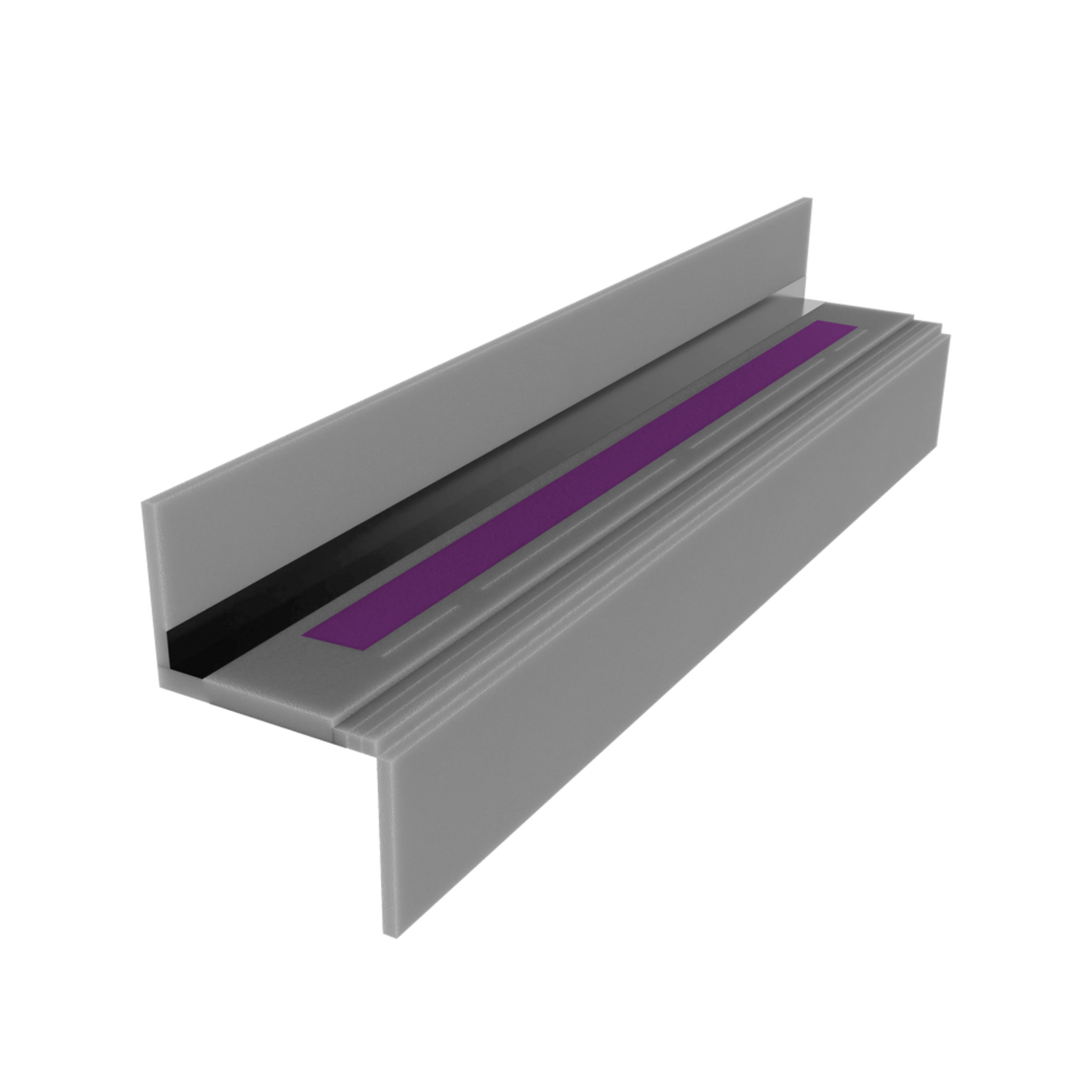

With SINTON® Z impact sound insulation elements, prefabricated stairs in stairwells are decoupled from landings and thus from living and working areas in terms of impact sound. The elements consist of an insulation board with an integrated sound insulation bearing for the transmission of positive transverse forces.

SINTON® Z has been tested in accordance with DIN 7396 and meets the requirements for increased sound insulation in accordance with DIN 4109-5.

Get in touchDownload datasheet

Variants

Type: Z1

Article

Element lenght

G

Weight per storage unit

  • 430100026328
    Sinton Z V1 L800
    Element lenght
    800 mm
    Weight per storage unit
    0.308 kg
    More information
  • 430100026329
    Sinton Z V1 L1000
    Element lenght
    1000 mm
    Weight per storage unit
    0.383 kg
    More information
  • 430100026330
    Sinton Z V1 L1100
    Element lenght
    1100 mm
    Weight per storage unit
    0.424 kg
    More information
  • 430100026331
    Sinton Z V1 L1200
    Element lenght
    1200 mm
    Weight per storage unit
    0.458 kg
    More information
  • 430100026332
    Sinton Z V1 L1300
    Element lenght
    1300 mm
    Weight per storage unit
    0.499 kg
    More information
  • 430100026333
    Sinton Z V1 L1500
    Element lenght
    1500 mm
    Weight per storage unit
    0.582 kg
    More information

Type: Z2

Article

Element lenght

G

Weight per storage unit

  • 430100026334
    Sinton Z V2 L800
    Element lenght
    800 mm
    Weight per storage unit
    0.372 kg
    More information
  • 430100026335
    Sinton Z V2 L1000
    Element lenght
    1000 mm
    Weight per storage unit
    0.462 kg
    More information
  • 430100026336
    Sinton Z V2 L1100
    Element lenght
    1100 mm
    Weight per storage unit
    0.424 kg
    More information
  • 430100026337
    Sinton Z V2 L1200
    Element lenght
    1200 mm
    Weight per storage unit
    0.458 kg
    More information
  • 430100026338
    Sinton Z V2 L1300
    Element lenght
    1300 mm
    Weight per storage unit
    0.499 kg
    More information
  • 430100026339
    Sinton Z V2 L1500
    Element lenght
    1500 mm
    Weight per storage unit
    0.582 kg
    More information

Type: Z3

Article

Element lenght

G

Weight per storage unit

  • 430100026340
    Sinton Z V3 L800
    Element lenght
    800 mm
    Weight per storage unit
    0.436 kg
    More information
  • 430100026341
    Sinton Z V3 L1000
    Element lenght
    1000 mm
    Weight per storage unit
    0.540 kg
    More information
  • 430100026342
    Sinton Z V3 L1100
    Element lenght
    1100 mm
    Weight per storage unit
    0.600 kg
    More information
  • 430100026343
    Sinton Z V3 L1200
    Element lenght
    1200 mm
    Weight per storage unit
    0.645 kg
    More information
  • 430100026344
    Sinton Z V3 L1300
    Element lenght
    1300 mm
    Weight per storage unit
    0.705 kg
    More information
  • 430100026345
    Sinton Z V3 L1500
    Element lenght
    1500 mm
    Weight per storage unit
    0.817 kg
    More information

Details

  • Impact sound level difference ΔL*w up to 28 dB
  • No influence on the fire resistance class of the connecting components
  • For prefabricated staircases
  • Meets requirements for increased sound insulation according to DIN 4109-5
  • Acoustic testing in accordance with DIN 7396 and EN 17823

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Technical Information SINTON®

    Technical Information

    PDF

    Choose languageChoose language

    Technical Information SINTON®

    Choose language to download

    • de

    Installation instructions Sinton® Z, ZB, D

    Installation instructions

    PDF (96.30 KB)

    DownloadDownload

    • de

    Acoustic testing in accordance with EN 17823 SINTON® Z / ZB 1 + 3

    Expert Report

    PDF (3.30 MB)

    DownloadDownload

    • de

    Acoustic testing in accordance with DIN 7396 SINTON® Z / ZB 1 + 2

    Expert Report

    PDF (8.89 MB)

    DownloadDownload

    • de

    Statement DIN 7396 / EN 17823 on the measurement of stair decoupling elements

    Expert Report

    PDF (321.06 KB)

    DownloadDownload

    • de

    • en

    Price list 2026 Shell construction / facade

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Shell construction / facade

    Choose language to download

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
