Cable clamp with additional insulating tray for fastening to angle profiles

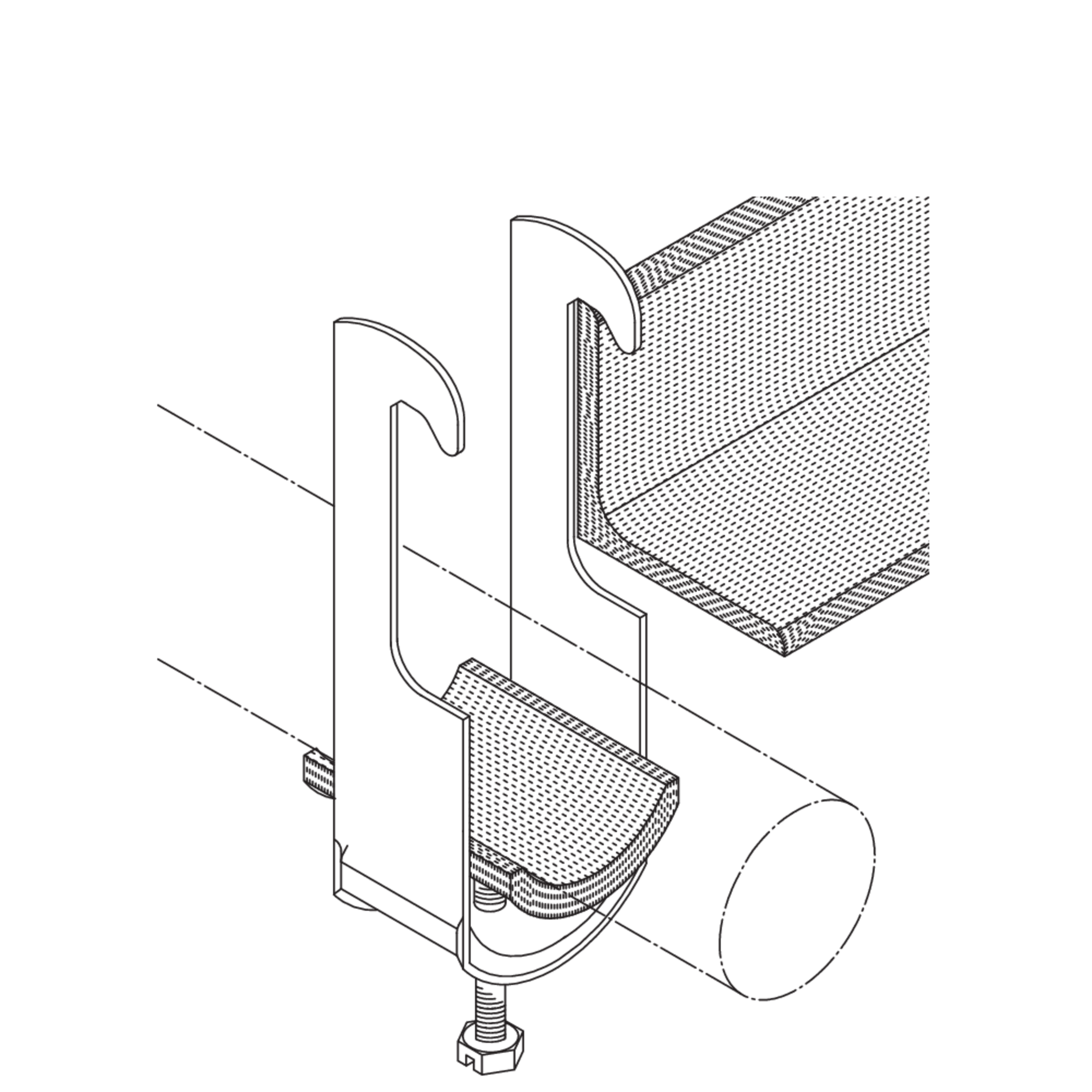

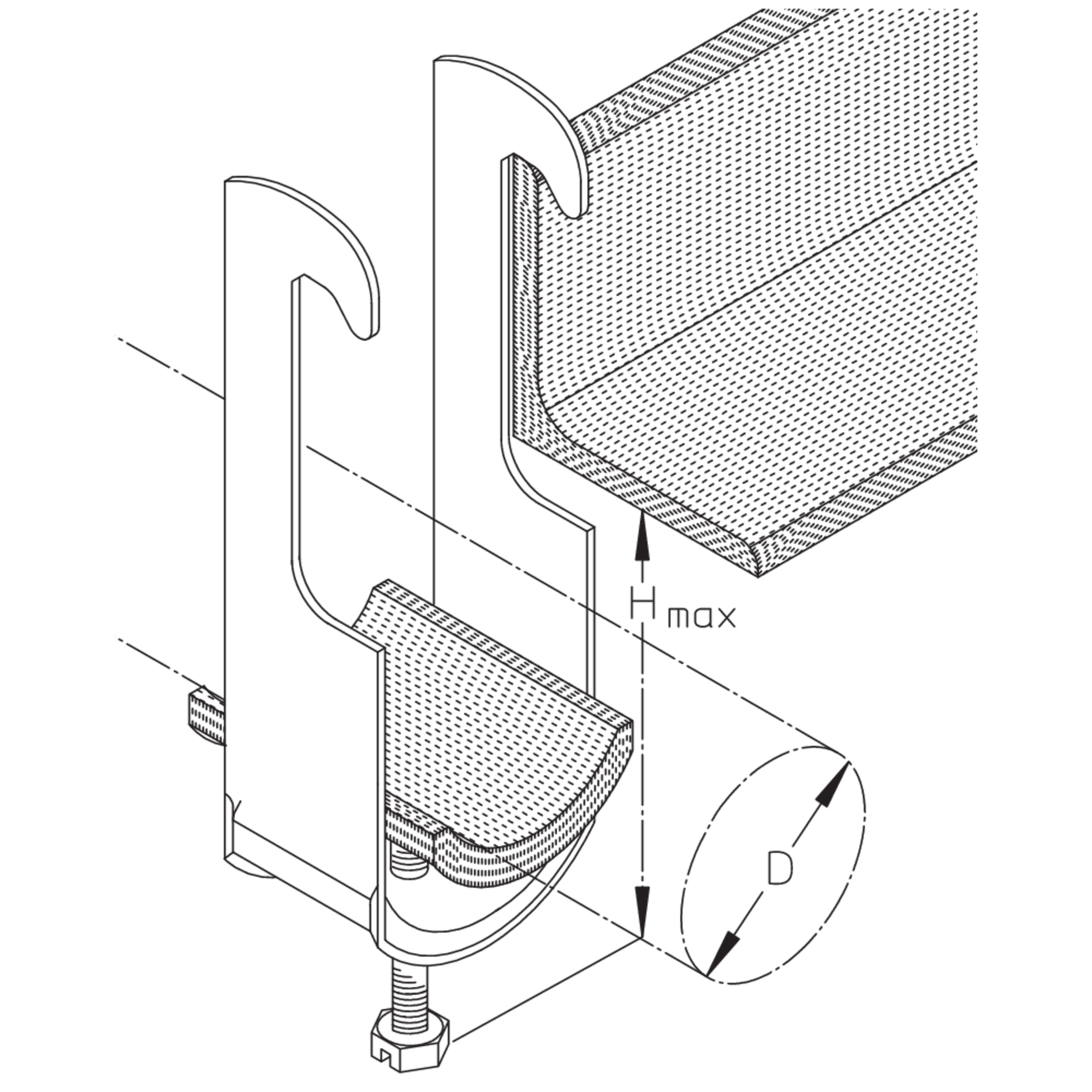

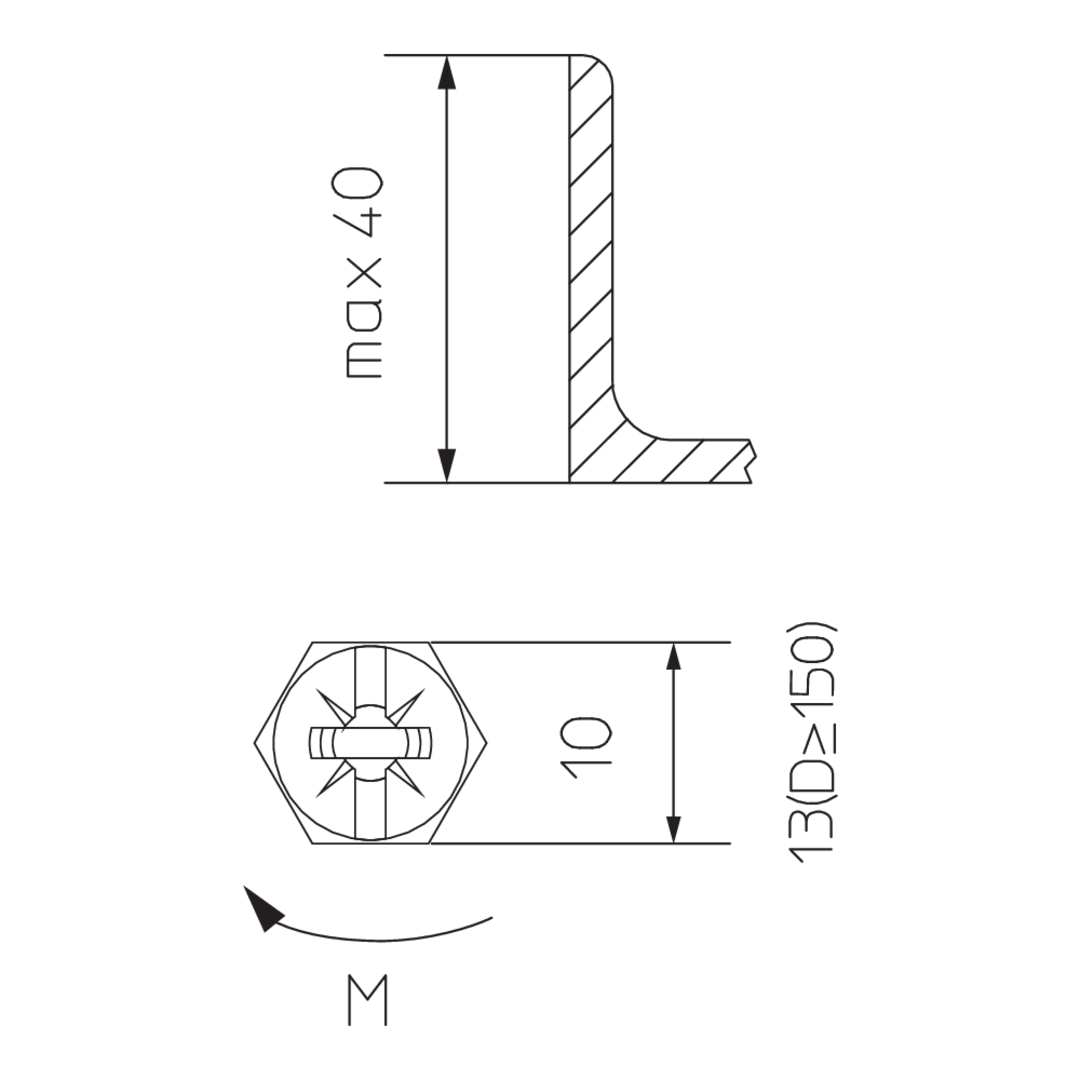

The S-IW cable clamp with a full-surface pressure trough and an additional insulating trough made of polystyrene can route cables with a maximum diameter of 70 mm. It is suitable for attachment to angle profiles and U profiles with a leg length of 40 mm. On request, a GW counter trough can be fitted for improved cable support.
The article is also available with lock nuts. This prevents the clamp from unintentionally coming loose. Lock nuts must be specified separately when ordering.
The S-IW cable clamp is made of galvanised steel. Items with a diameter of 12 to 52 mm are also available in aluminium or stainless steel with material no. 1.4301 (V2A) and 1.4571/1.4404 (V4A).
