KUNEX® ABS Construction Joint A-V

Formwork element with construction joint tape (interlocking joint)

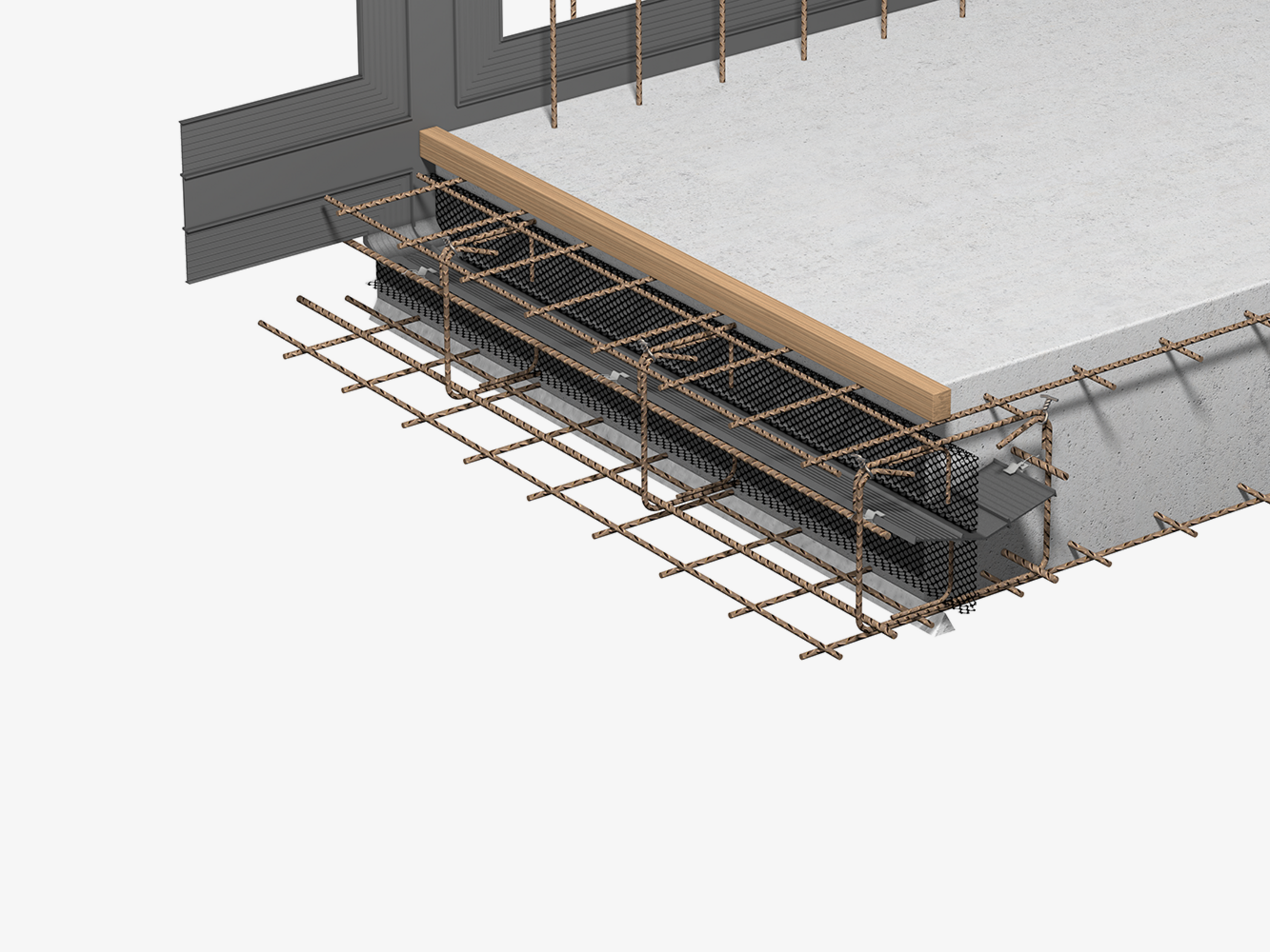

The component KUNEX® ABS Construction Joint A-V is a formwork element used to install internal KUNEX® joint tapes in waterproof construction joints in reinforced concrete structures. The product is a combination of a cage to hold the joint tape and a KUNEX® joint tape. The design of the formwork element is suitable for forming interlocked joints according to DIN EN 1992-1-1/NA (EC2) with an installation height of 150 to 500 mm. The KUNEX® ABS Construction Joint A-V is made of steel DC04 and is 2400 mm long. Other dimensions are also available on request.

General building authority test certificate: P-5143/478/13 MPA BS
Get in touch Download datasheet

Variants

Article

H

installation height

for KUNEX Type

G

Weight per storage unit
  • 121800013932
    Kunex ABS V A240 BD 150 300
    installation height
    150-300 mm
    for KUNEX Type
    A240
    Weight per storage unit
    4.650 kg
    More information
  • 121800013933
    Kunex ABS V A240 BD 310 500
    installation height
    310-500 mm
    for KUNEX Type
    A240
    Weight per storage unit
    6.820 kg
    More information
  • 121800013934
    Kunex ABS V A320 BD 150 300
    installation height
    150-300 mm
    for KUNEX Type
    A320
    Weight per storage unit
    4.750 kg
    More information
  • 121800013935
    Kunex ABS V A320 BD 310 500
    installation height
    310-500 mm
    for KUNEX Type
    A320
    Weight per storage unit
    6.950 kg
    More information

Details

  • General building authority test certificate: P-5143/478/13 MPA BS

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • Technical Information KUNEX®

    Technical information for KUNEX® PVC-P Joint tapes, TPE joint tapes, ABS construction joints, ABS expansion joints, clamp joints, star tubes, puddle flanges and formed parts and accessories

    PDF, 5 MB

    de en
