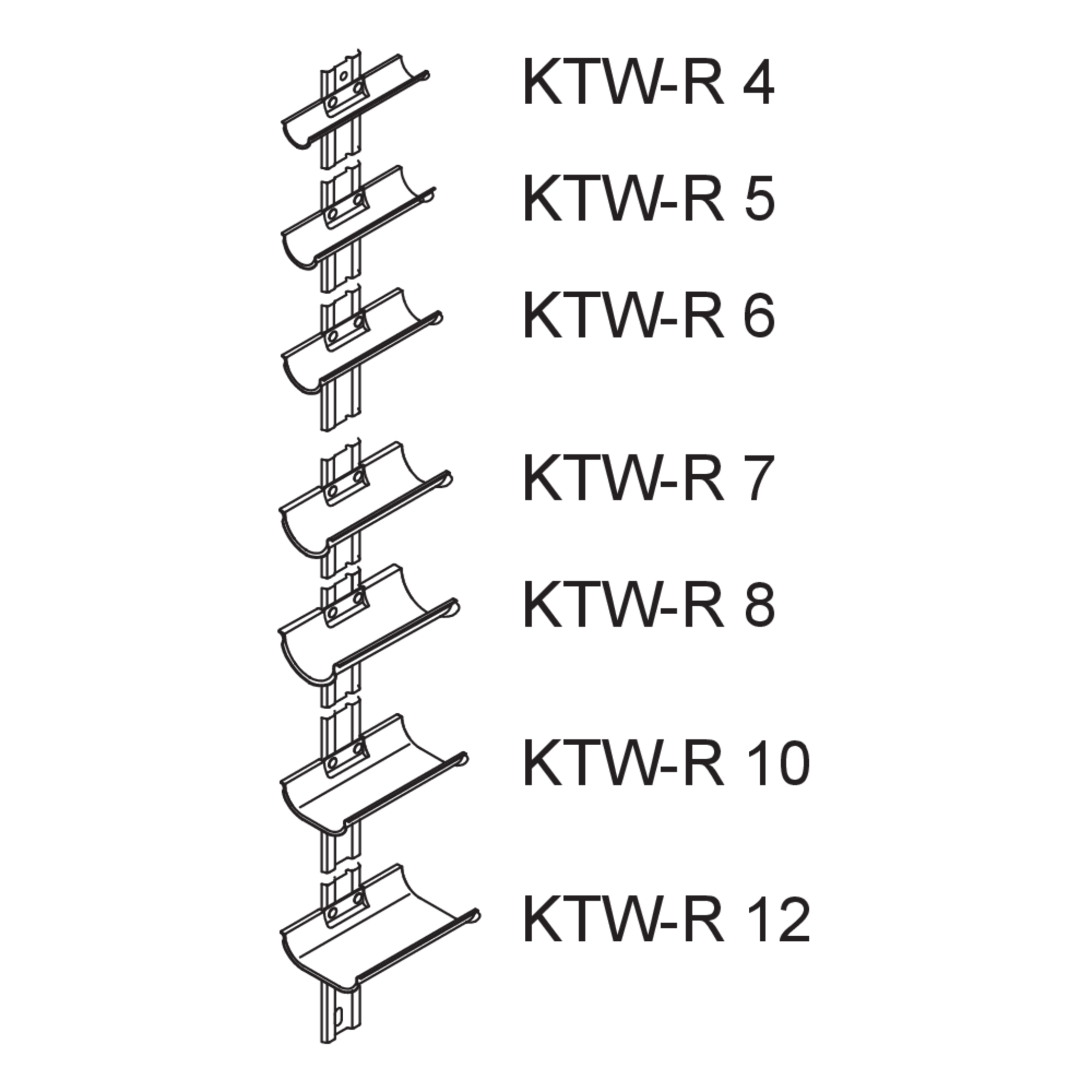

Variants
Article
B1
width 1
- KTW-R 4/2-10width 156 mm
- KTW-R 5/2-10width 166 mm
- KTW-R 6/2-10width 176 mm
- KTW-R 7/2-10width 186 mm
- KTW-R 8/2-10width 197 mm
- KTW-R 12/2-10width 1138 mm
KTW-R 4-12
cable support trough, Ø 40-120 mm

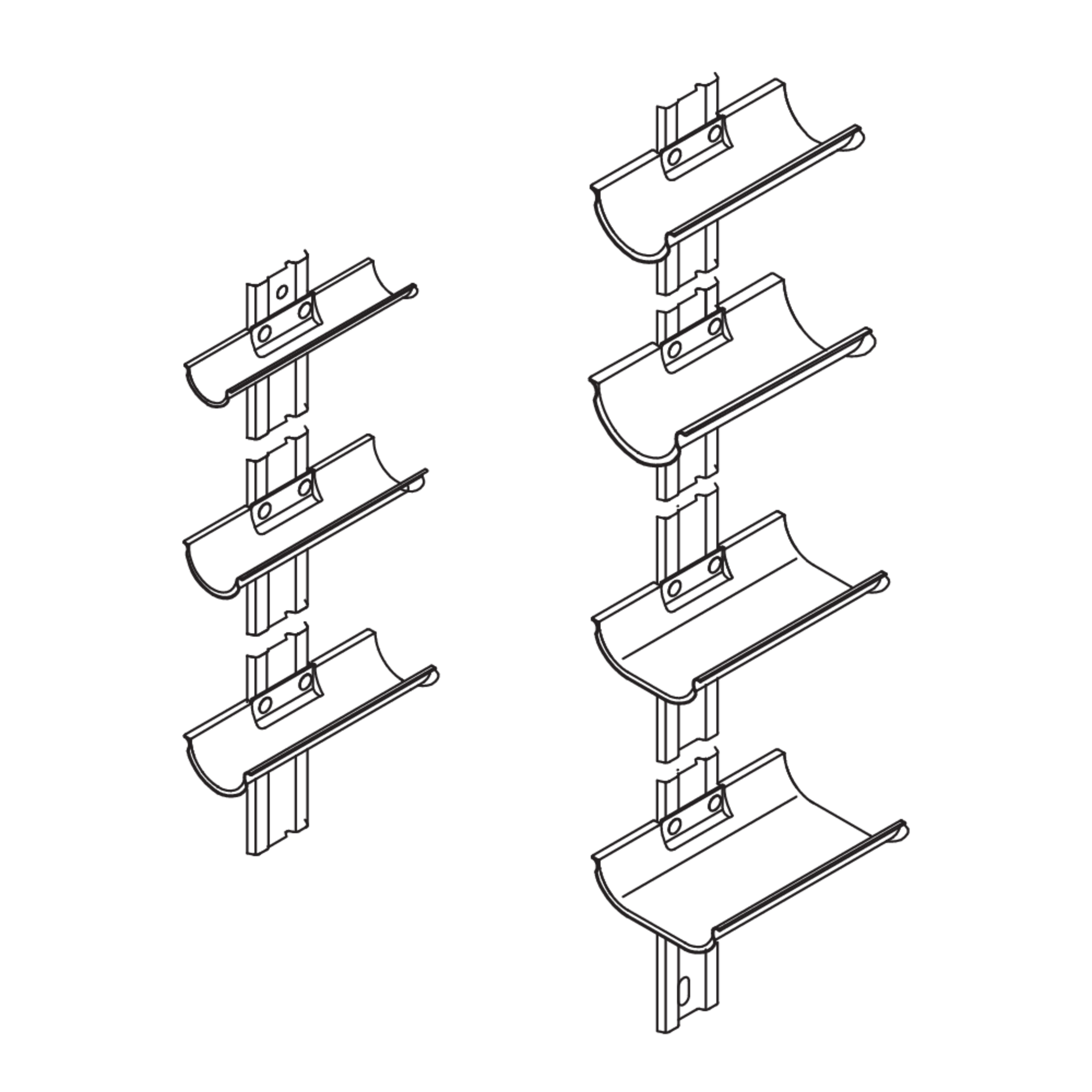

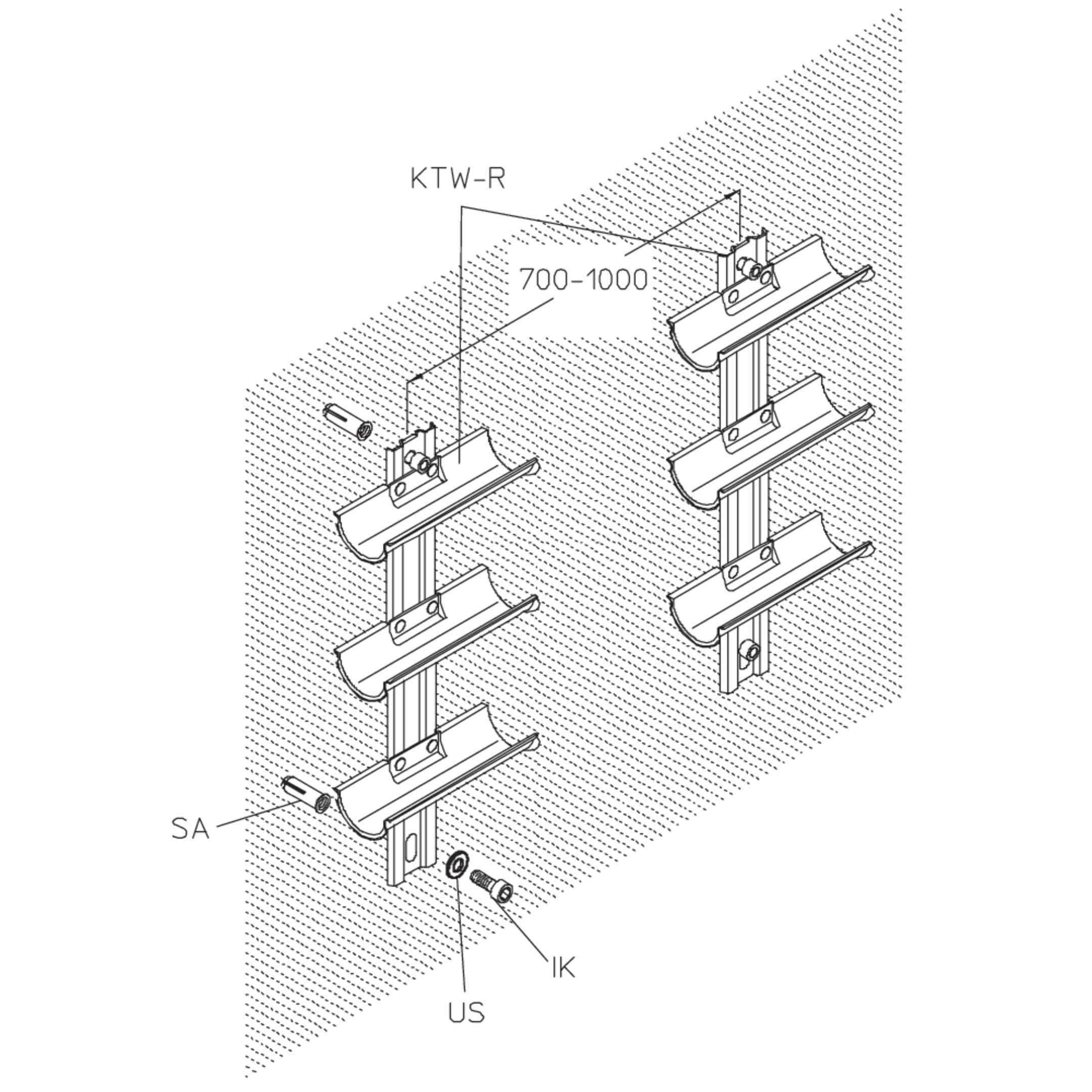

The KTW-R 4-12 cable support tray with riveted back rail is used for routing cables on walls in a space-saving manner. It is available in widths from 56 to 138 mm and allowing for cable diameters from 40 to 120 mm. The back rail is available in lengths from 237 to 973 mm. It can be installed in one or more tiers. It is dowelled directly to the wall, but can also be attached to profile rails. Support intervals of 700 to 1000 mm must be observed when routing the cables. The cable support tray KTW-R 4-12 is made of hot-dip galvanised steel.
Details
Tender texts
Downloads
de
en
es
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Included accessories
Anzahl:
