JXA PC W 38/23

Anchor channel, hot-rolled, toothed, ribbed anchor with large undercut profile

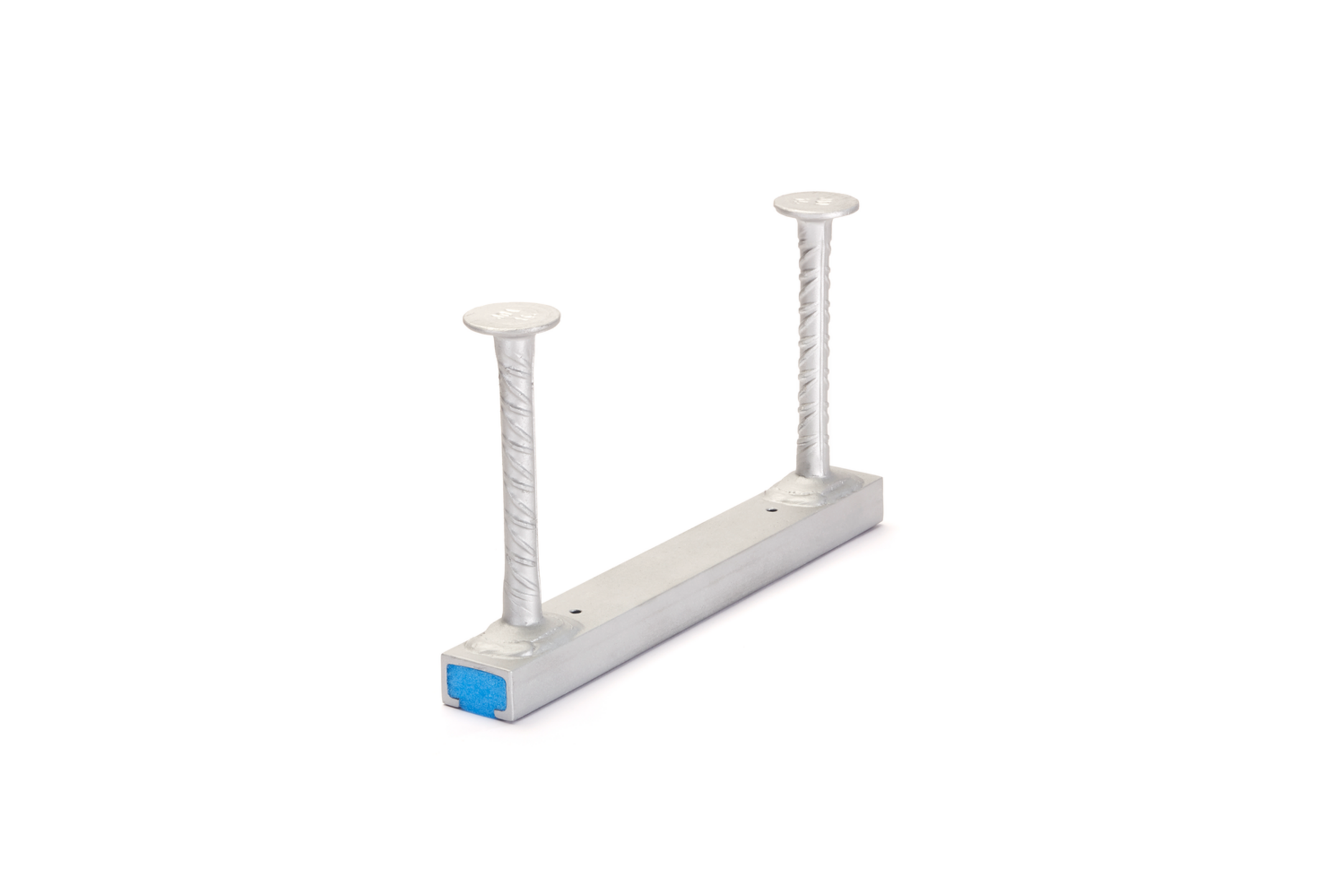

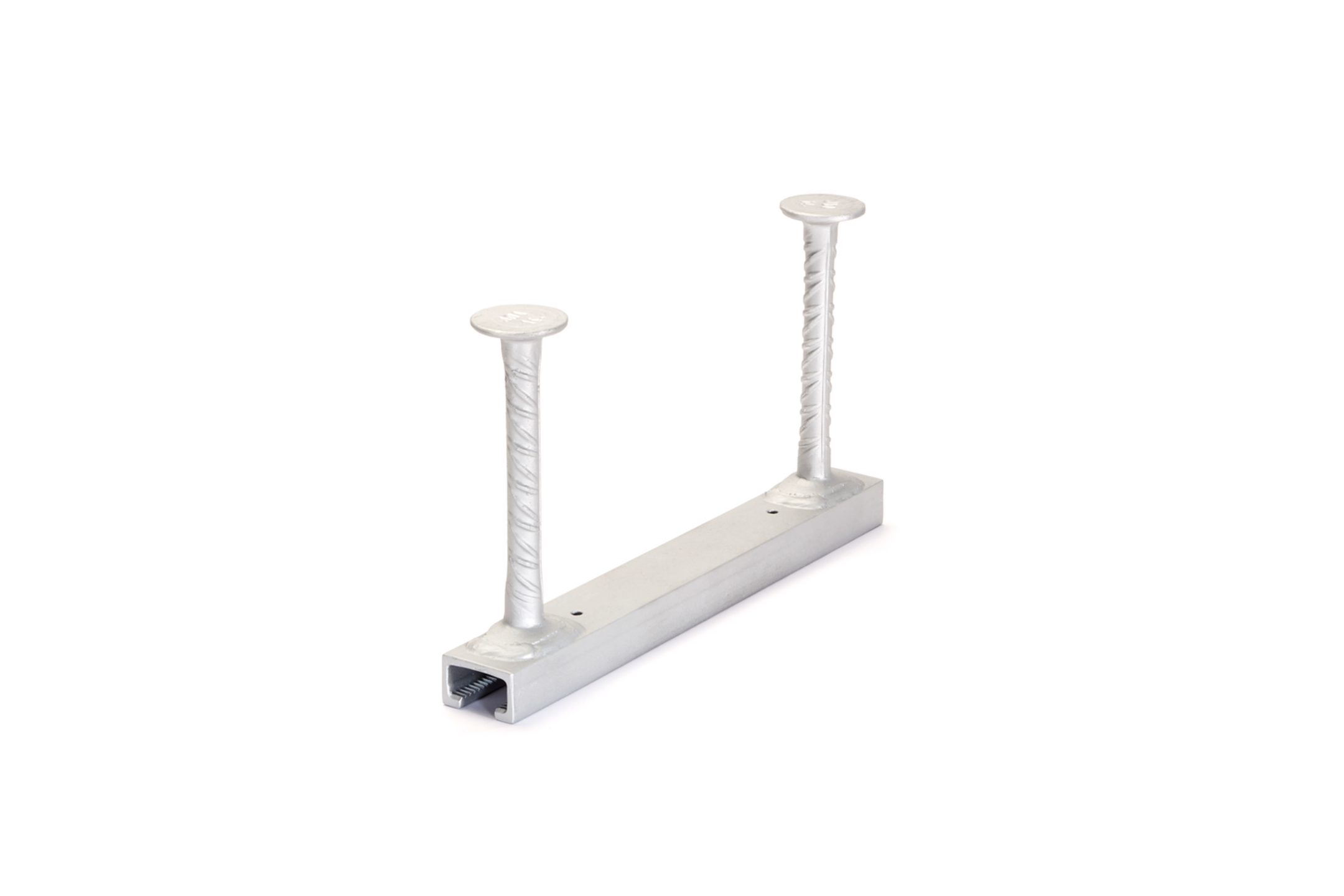

The anchor channel JXA PC W 38/23 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 3 mm thick and it can be supplied in any desired length up to a maximum of 6 m. It is paired with the bolts JXH M12 - JXH M16. The profile is 38 mm wide and 23 mm high. The filling is made of polyethylene (PE).

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • JXAPCW3823-0150-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    150 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.984 kg
    More information
  • JXAPCW3823-0200-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    200 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.117 kg
    More information
  • JXAPCW3823-0250-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    250 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.250 kg
    More information
  • JXAPCW3823-0300-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    300 mm
    Material strength profile
    3 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.383 kg
    More information
  • JXAPCW3823-0350-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    350 mm
    Material strength profile
    3 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.809 kg
    More information
  • JXAPCW3823-0400-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    400 mm
    Material strength profile
    3 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.942 kg
    More information
  • JXAPCW3823-0550-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    550 mm
    Material strength profile
    3 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    2.341 kg
    More information
  • JXAPCW3823-0800-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    800 mm
    Material strength profile
    3 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    3.299 kg
    More information
  • JXAPCW3823-1050-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    1050 mm
    Material strength profile
    3 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    4.256 kg
    More information
  • JXAPCW3823-3000-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    3000 mm
    Material strength profile
    3 mm
    Number of anchors
    13 pcs
    Weight per storage unit
    11.786 kg
    More information
  • JXAPCW3823-6000-FVK
    JORDAHL anchor channel toothed PC W38/23
    installation height
    170 mm
    profile height
    23 mm
    profile width
    38 mm
    length
    6000 mm
    Material strength profile
    3 mm
    Number of anchors
    25 pcs
    Weight per storage unit
    3.880 kg
    More information
