JDSDQ

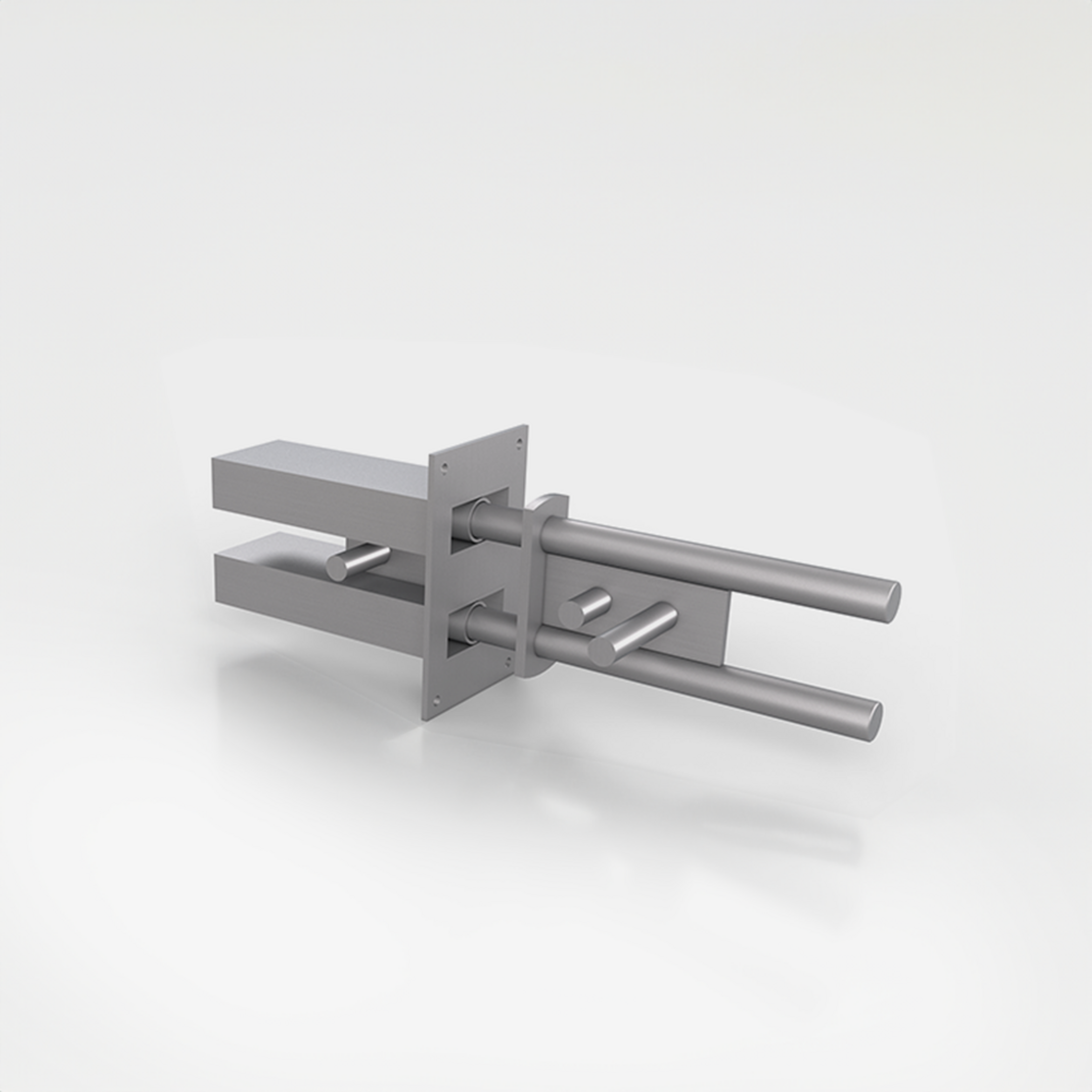

Double shear connector for the dynamic connection of concrete components

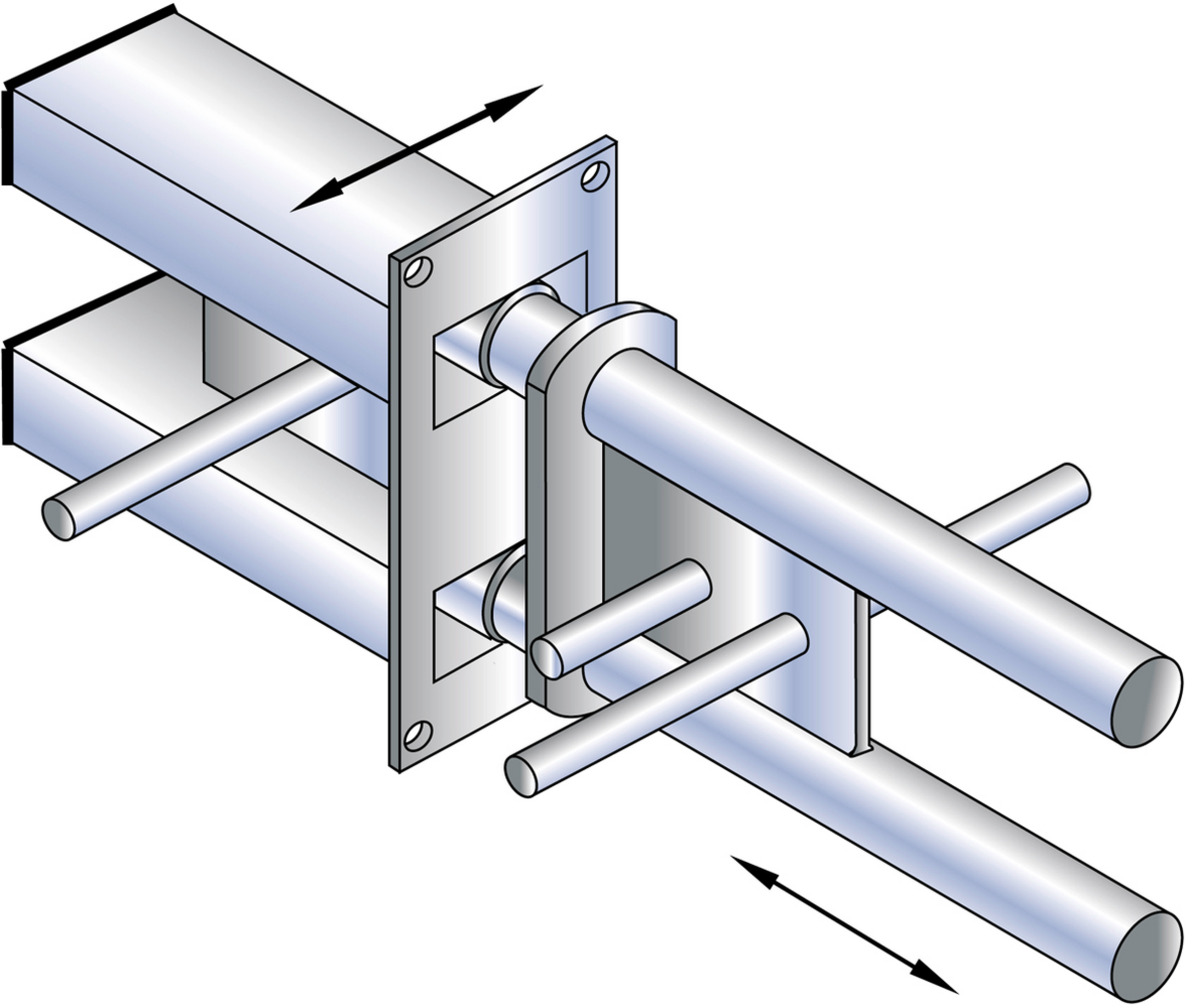

The dowels are guided transversely in rectangular sleeves in the double shear connector JDSDQ. This allows transverse movements and twisting – in addition to movements in the longitudinal direction of the dowel. Double shear connectors JDSDQ are often used in the area of corners and recesses on concrete slabs. The double shear connector JDSDQ has general building authority approval and is available in various sizes. For example, it absorbs rated resistances in relation to the steel load-bearing capacity of up to 896.8 kN for joint widths ≤ 20 mm. It is suitable for joint widths up to 60 mm and resistant to high corrosion loads, e.g. from chlorides or seawater.

Fire protection
General building approval: Z-15.7-237
Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit

  • JDSDQ120HF
    JORDAHL double shear dowel
    height
    160 mm
    width
    170 mm
    length
    400 mm
    Weight per storage unit
    9.500 kg
    More information
  • JDSDQ130
    JORDAHL double shear dowel
    height
    180 mm
    width
    170 mm
    length
    470 mm
    Weight per storage unit
    13.200 kg
    More information
  • JDSDQ150
    JORDAHL double shear dowel
    height
    200 mm
    width
    210 mm
    length
    550 mm
    Weight per storage unit
    19.900 kg
    More information
  • JDSDQ25HF
    JORDAHL double shear dowel
    height
    70 mm
    width
    110 mm
    length
    250 mm
    Weight per storage unit
    2.000 kg
    More information
  • JDSDQ30HF
    JORDAHL double shear dowel
    height
    80 mm
    width
    110 mm
    length
    260 mm
    Weight per storage unit
    2.400 kg
    More information
  • JDSDQ400
    JORDAHL double shear dowel
    height
    80 mm
    width
    130 mm
    length
    280 mm
    Weight per storage unit
    32.600 kg
    More information
  • JDSDQ450
    JORDAHL double shear dowel
    height
    250 mm
    width
    300 mm
    length
    660 mm
    Weight per storage unit
    49.600 kg
    More information
  • JDSDQ45HF
    JORDAHL double shear dowel
    height
    280 mm
    width
    300 mm
    length
    690 mm
    Weight per storage unit
    3.300 kg
    More information
  • JDSDQ60HF
    JORDAHL double shear dowel
    height
    105 mm
    width
    130 mm
    length
    300 mm
    Weight per storage unit
    4.100 kg
    More information
  • JDSDQ90HF
    JORDAHL double shear dowel
    height
    115 mm
    width
    150 mm
    length
    340 mm
    Weight per storage unit
    5.718 kg
    More information

Details

  • Fire protection
  • General building approval: Z-15.7-237
  • General building authority approval

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Shell construction / facade

    Choose language to download

    • de

    Expert Report Fire Protection JDSD and HED

    Expert Report

    PDF, 635.62 KB

    DownloadDownload

    • de

    • en

    Technical Information Double Shear Dowels JDSD

    Technical Information

    PDF

    Choose languageChoose language

    Technical Information Double Shear Dowels JDSD

    Choose language to download

    • de

    Certificate of Conformity JDSD/JDSDQ

    Certificate

    PDF, 103.10 KB

    DownloadDownload

    • de

    General building approval Double Shear Dowels JDSD/JDSDQ

    Approval

    PDF, 1.74 MB

    DownloadDownload

    • de

    Installation Instruction Double Shear Dowel JDSD

    Assembly Instructions

    PDF, 177.50 KB

    DownloadDownload

BIM- und CAD-Data

    CAD Details Double Shear Dowels JDSD

    CAD Data

    ZIP, 2.10 MB

    DownloadDownload

    BIM Data Double Shear Dowels JDSD

    BIM Data

    ZIP, 652.46 KB

    DownloadDownload
