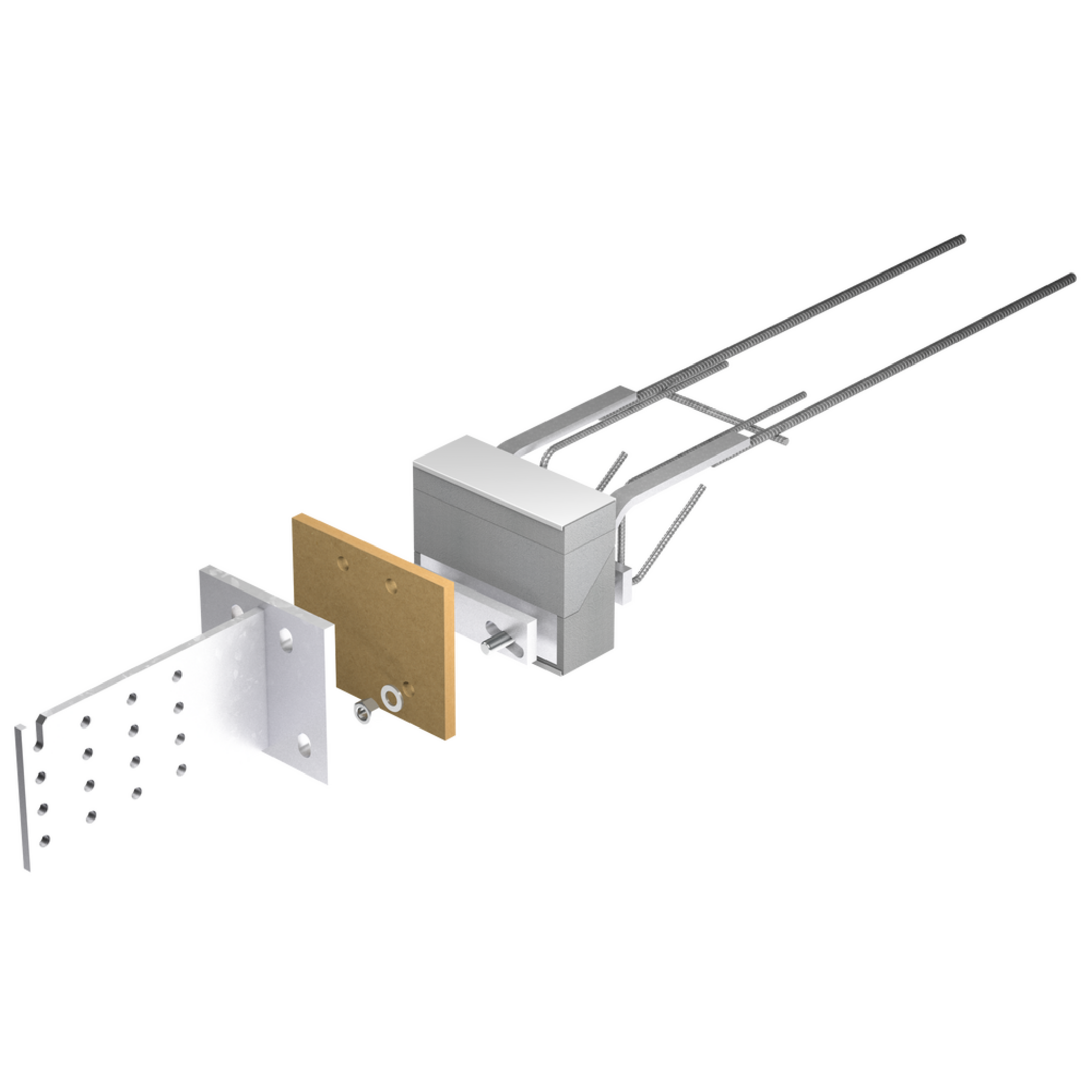

ISOPRO® HQ is a thermally insulated connection with an 80 mm insulating body for connecting supported timber structures with reinforced concrete components. It is suitable for transmitting positive shear forces and horizontal forces. The element consists of an EPS insulating body with extremely low thermal conductivity and a structurally effective framework made of stainless steel. The elements are installed in the shell over the course of the reinforcement and casting work. The wooden construction will be assembled by a carpenter at a later date. Please specify the load-bearing capacity and element height when ordering.
Element lenght
Height
de
en
Technical Information
Installation Instructions
PDF (625.85 KB)
DownloadDownload
de
Approval
PDF (1.78 MB)
DownloadDownload
de
en
Valid from February 1st, 2026
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
