HK 30-70

Cable hook

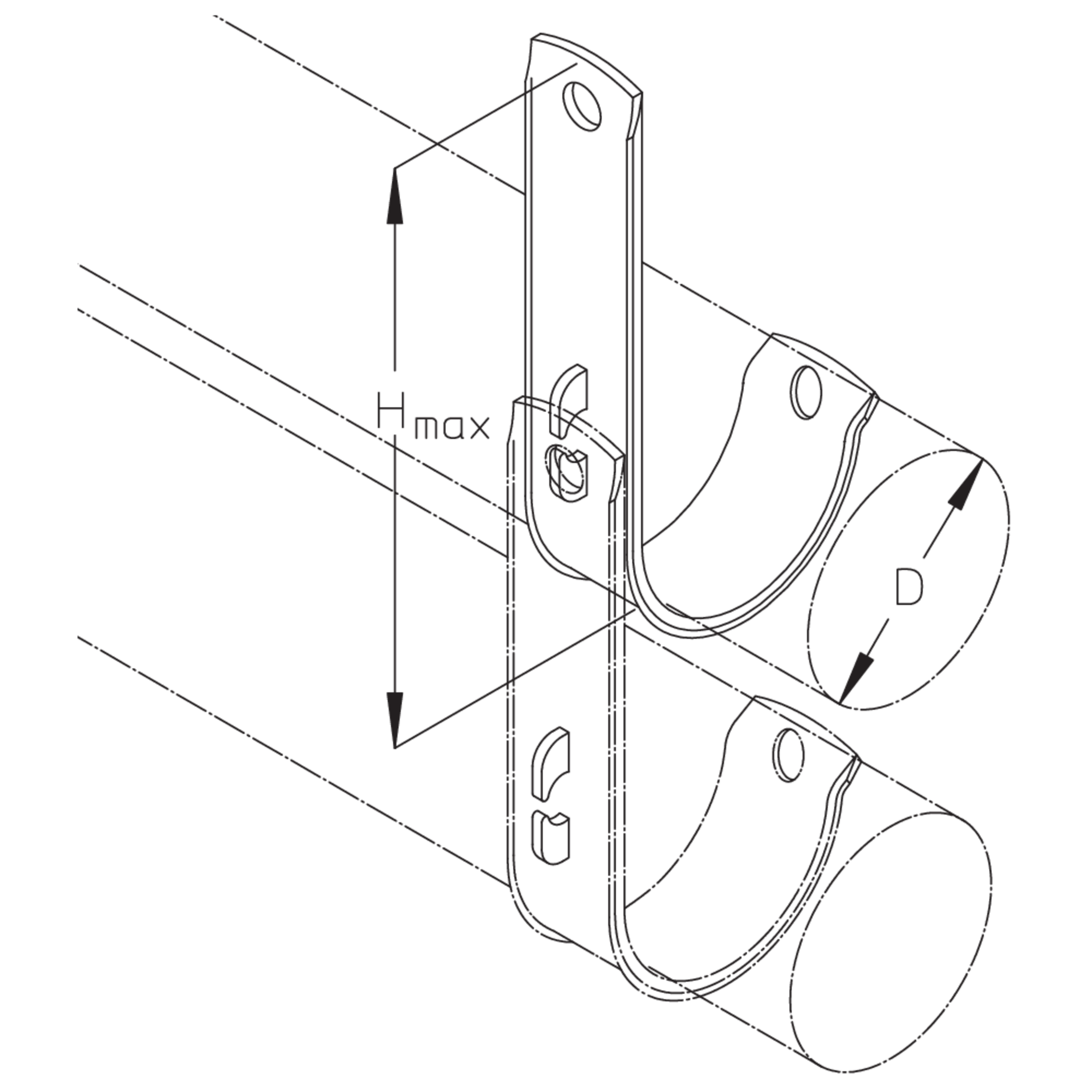

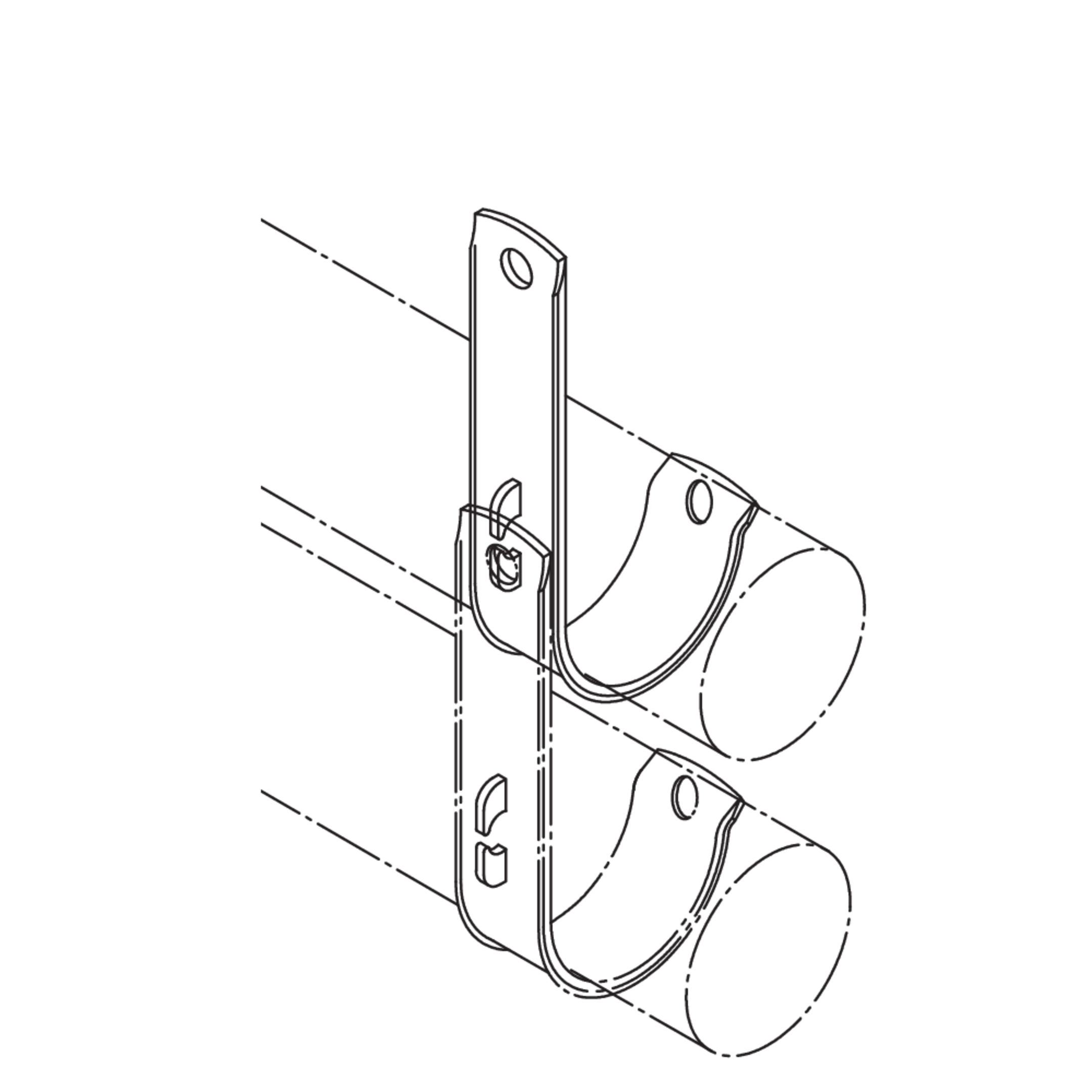

HK 30-70 cable hooks are used for the temporary routing of cables with a diameter of up to 70 mm. The cable hooks are attached directly to the wall and can be mounted in max. 3 tiers on top of each other thanks to the hooking lock (max. 20 kg per layer). They are made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

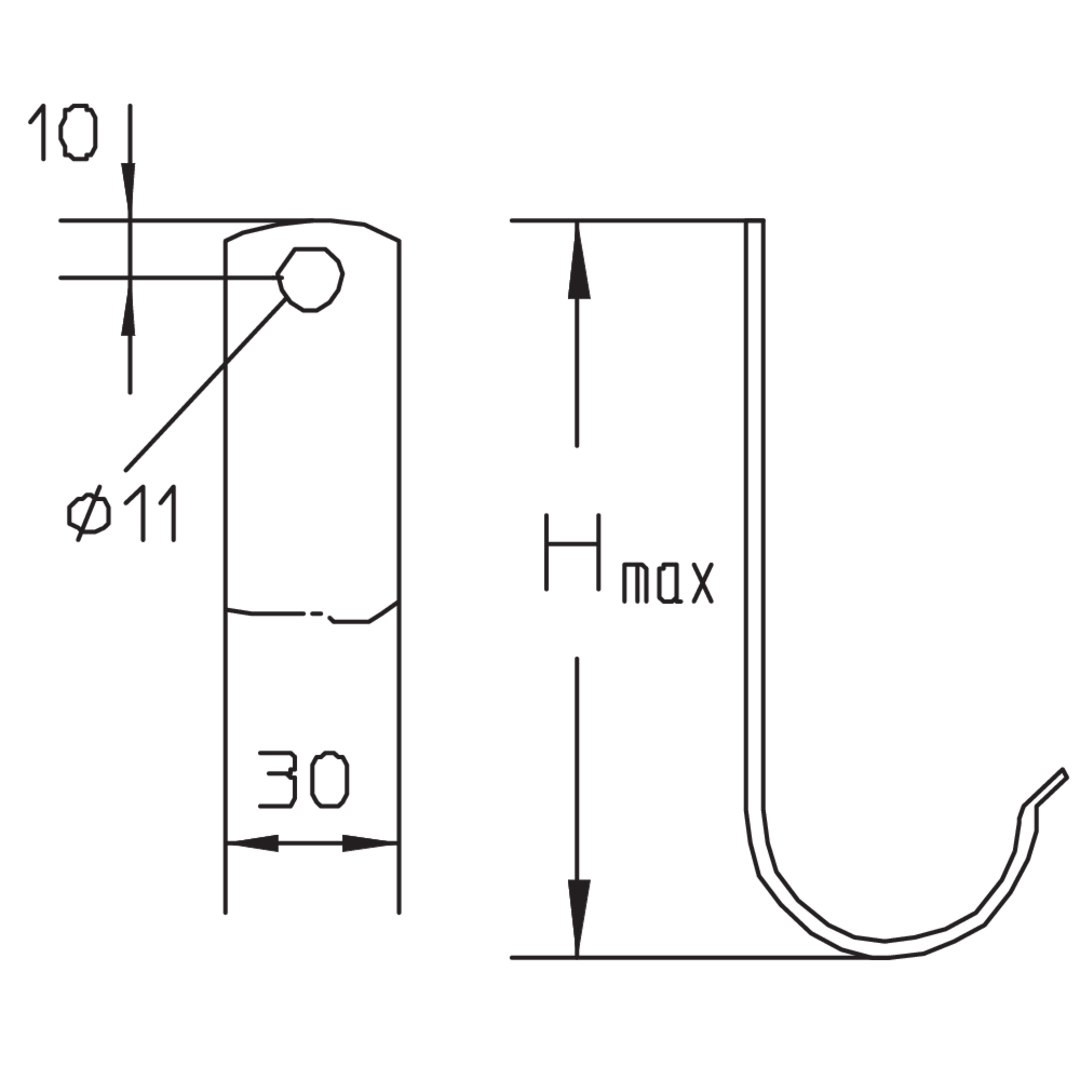

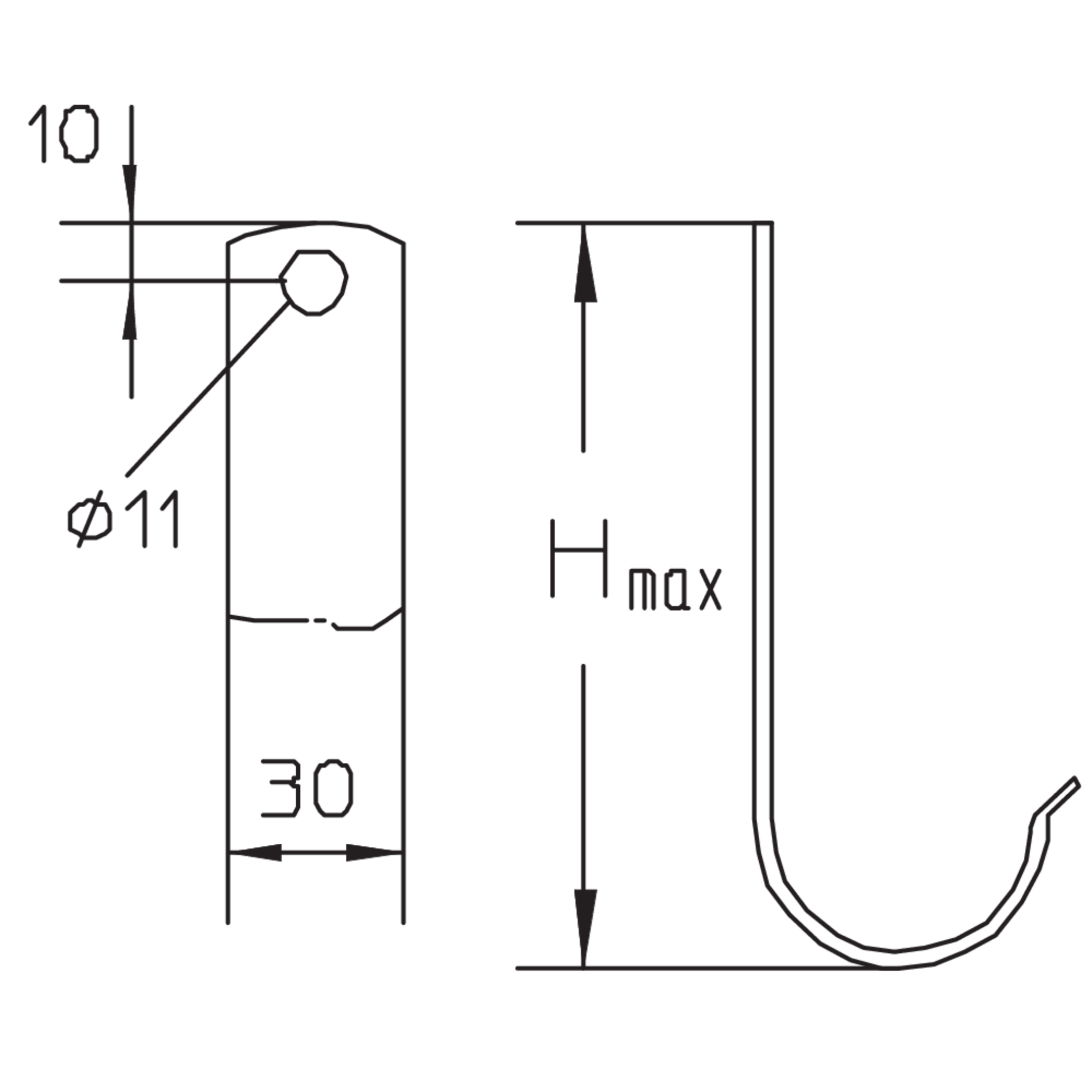

Hmax

maximum height

D

Diameter (mm)

cables

max. number of cables

G

Weight per storage unit

  • HK 30
    Cable hook HK 30
    maximum height
    105 mm
    Diameter (mm)
    ≤ 30 mm
    max. number of cables
    1
    Weight per storage unit
    0.095 kg
    More information
  • HK 40
    Cable hook HK 40
    maximum height
    110 mm
    Diameter (mm)
    ≤ 40 mm
    max. number of cables
    1
    Weight per storage unit
    0.099 kg
    More information
  • HK 50
    Cable hook HK 50
    maximum height
    130 mm
    Diameter (mm)
    ≤ 50 mm
    max. number of cables
    1
    Weight per storage unit
    0.121 kg
    More information
  • HK 60
    Cable hook HK 60
    maximum height
    150 mm
    Diameter (mm)
    ≤ 60 mm
    max. number of cables
    1
    Weight per storage unit
    0.143 kg
    More information
  • HK 70
    Cable hook HK 70
    maximum height
    170 mm
    Diameter (mm)
    ≤ 70 mm
    max. number of cables
    1
    Weight per storage unit
    0.149 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Building extension

    Choose language to download

    • de

    • en

    • es

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    PDF

    Choose languageChoose language

    Cable support systems - Complete catalogue

    Choose language to download

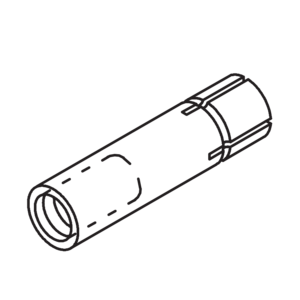

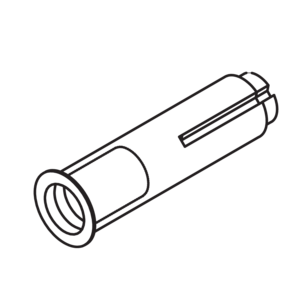

Included accessories
