Art.-Nr. BODO NA-L

single outlet,

Cable outlet, dummy

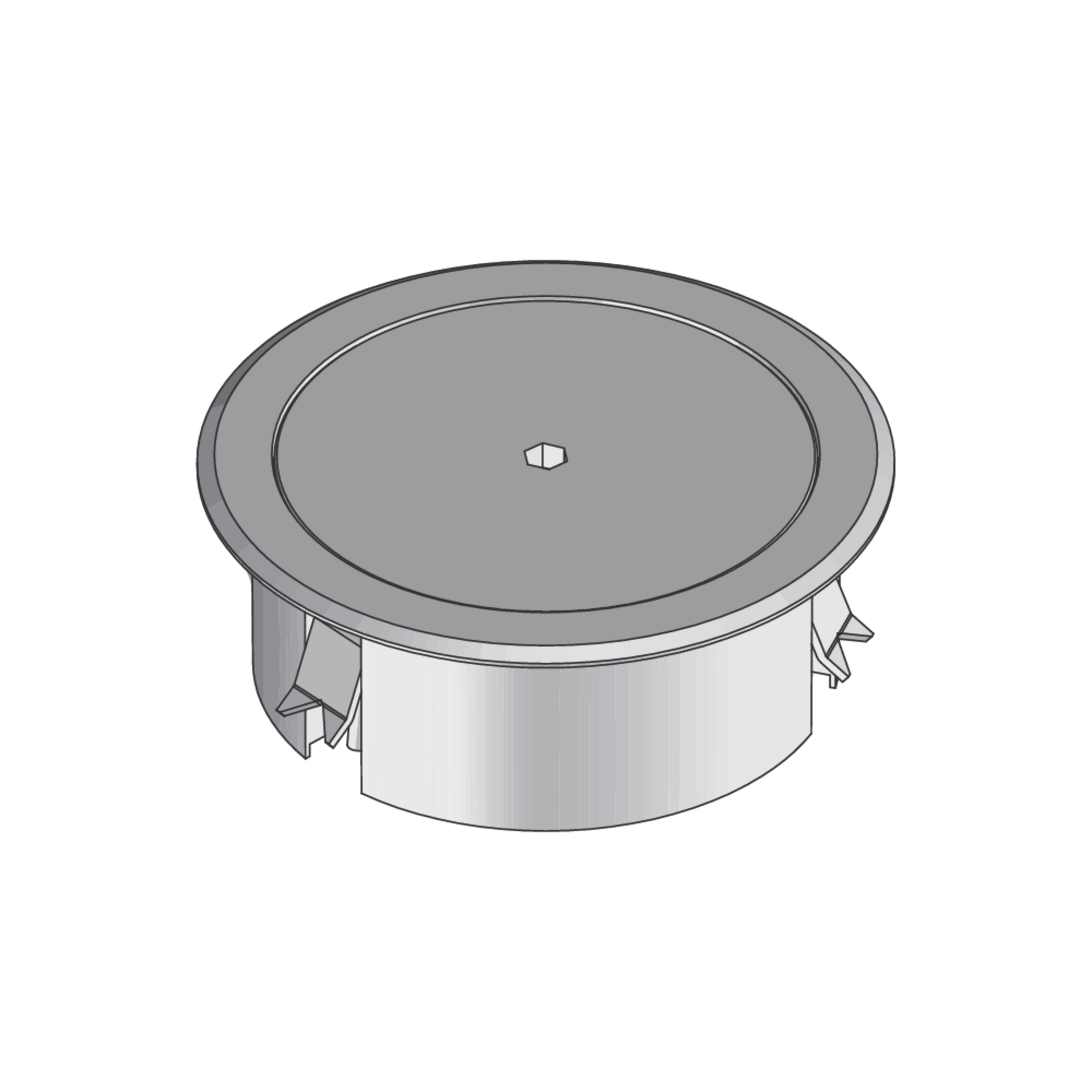

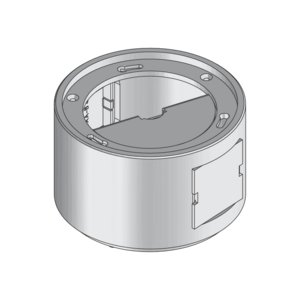

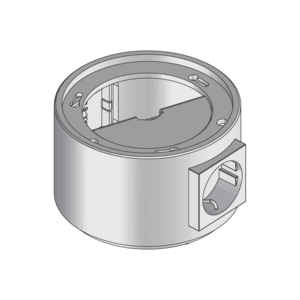

BODO NA components are round dummy cable outlets with floor covering protection frame and cover that can be closed using a bayonet catch. The BODO NA components can be supplemented with a tube outlet and are suitable for installation in screed and raised or false floor openings in wet-cleaned or dry-cleaned rooms with high traffic loads. The cover of the cable outlets is made of aluminium with an aluminium finish and the frames are made of plastic. The IP protection rating of the outlets is IP 66 in an unused condition and IP 20 when used. They have installation dimensions of 122 mm and a minimum installation height of 87 mm.

Art.-Nr.
BODO NA-L
height
51 mm
minimum installation height
78 mm
Diameter (mm)
120 mm
maximum load
15.00 kN
fitting dimension round
122 mm
color
aluminium
IP protection level in used condition
IP 20
IP protection level in unused condition
IP 66
Weight per storage unit
0.295 kg
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

aluminium

Article

H

height

Hmin

minimum installation height

D

Diameter (mm)

Pmax

maximum load

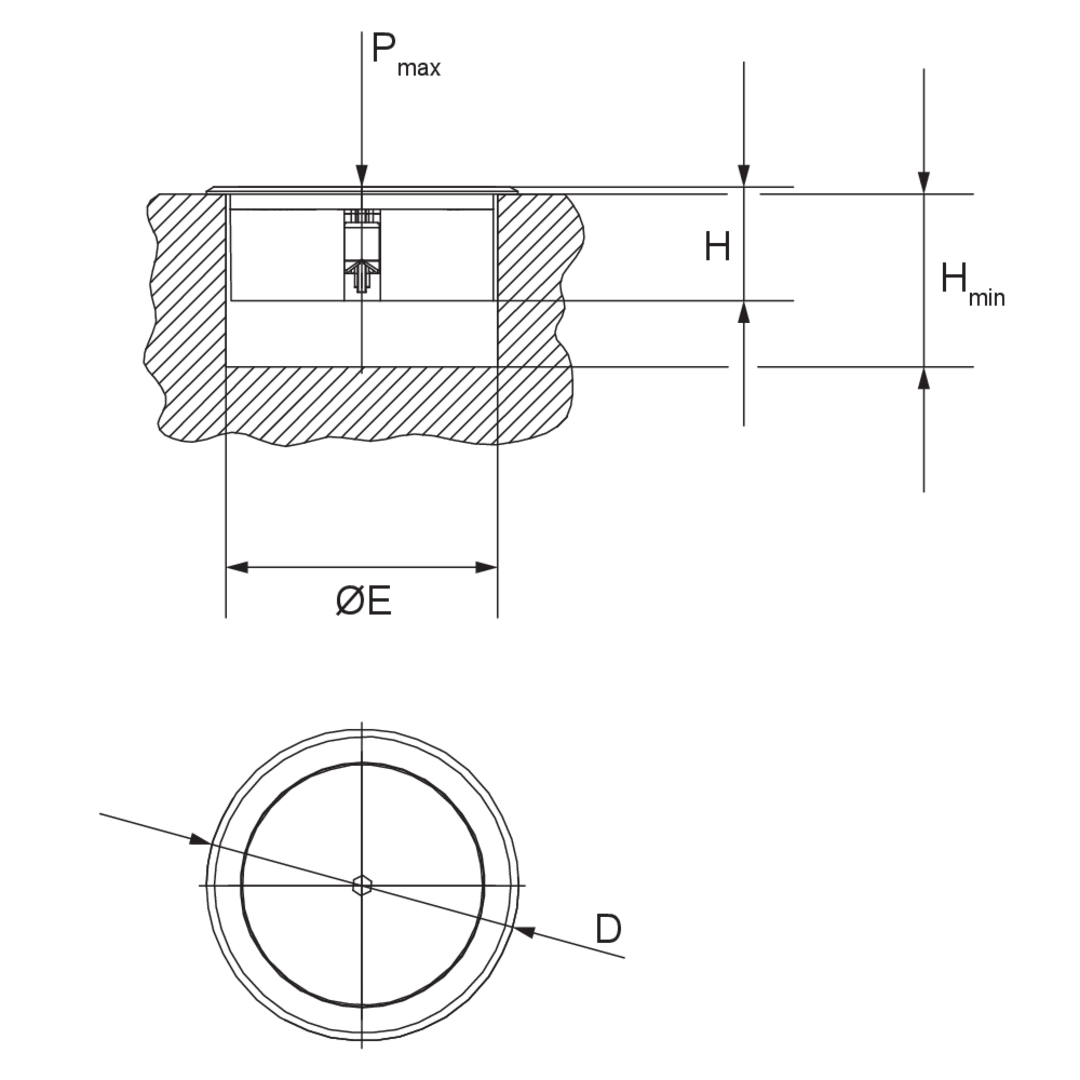

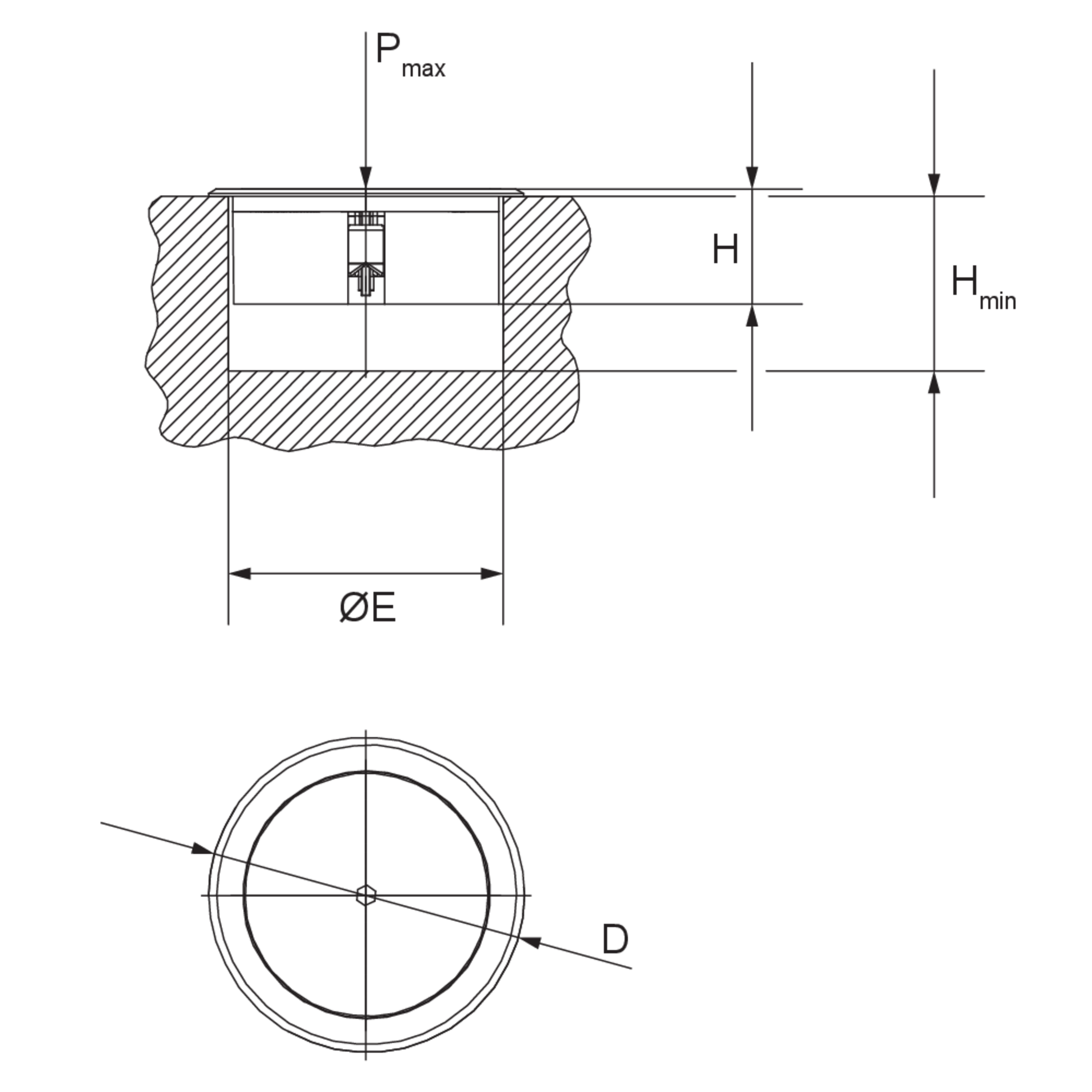

ØE

fitting dimension round

colour

color

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • BODO NA-L
    single outlet,
    height
    51 mm
    minimum installation height
    78 mm
    Diameter (mm)
    120 mm
    maximum load
    15.00 kN
    fitting dimension round
    122 mm
    color
    aluminium
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 66
    Weight per storage unit
    0.295 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With test stamp dia. 130 mm: 15 kN
