BKBGDR

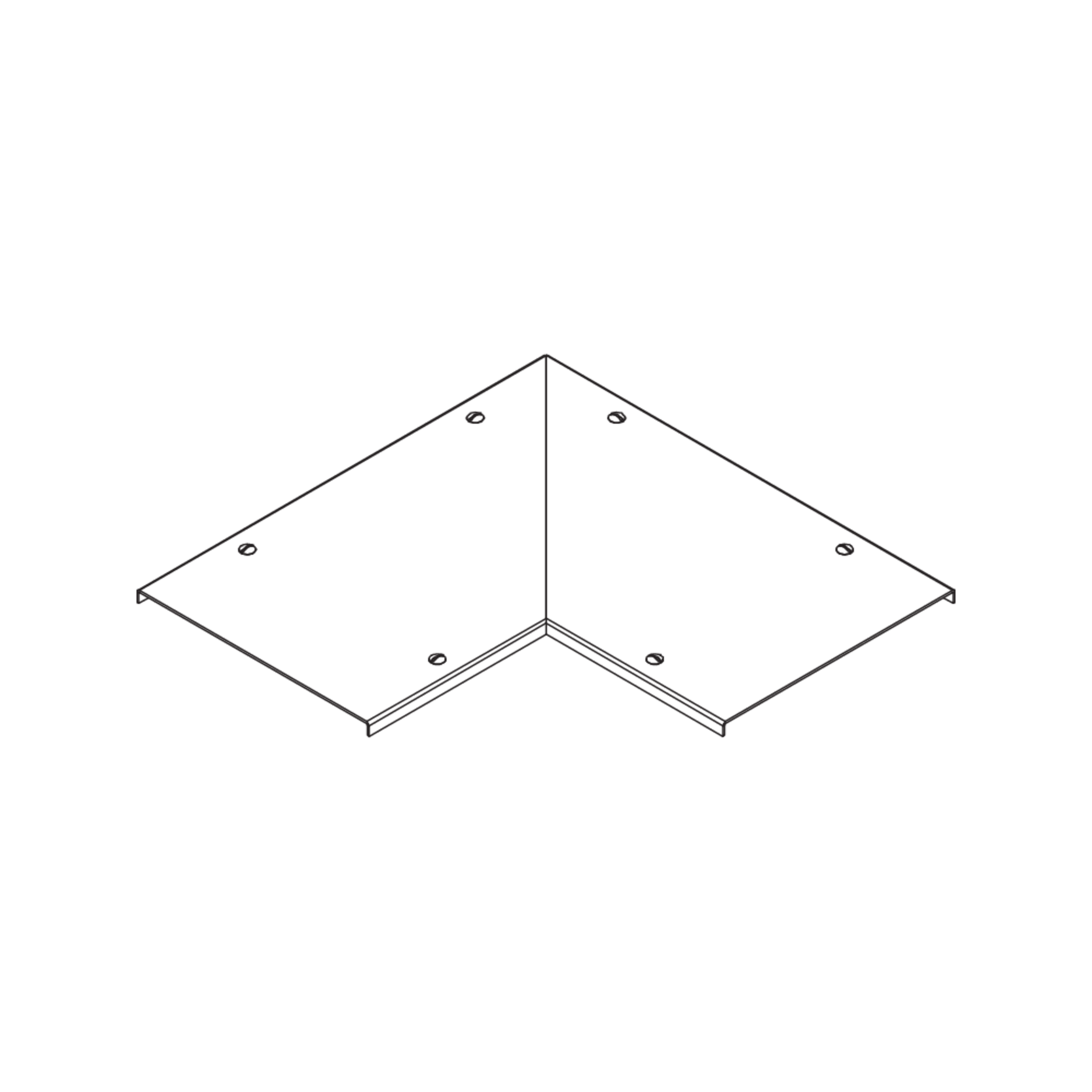

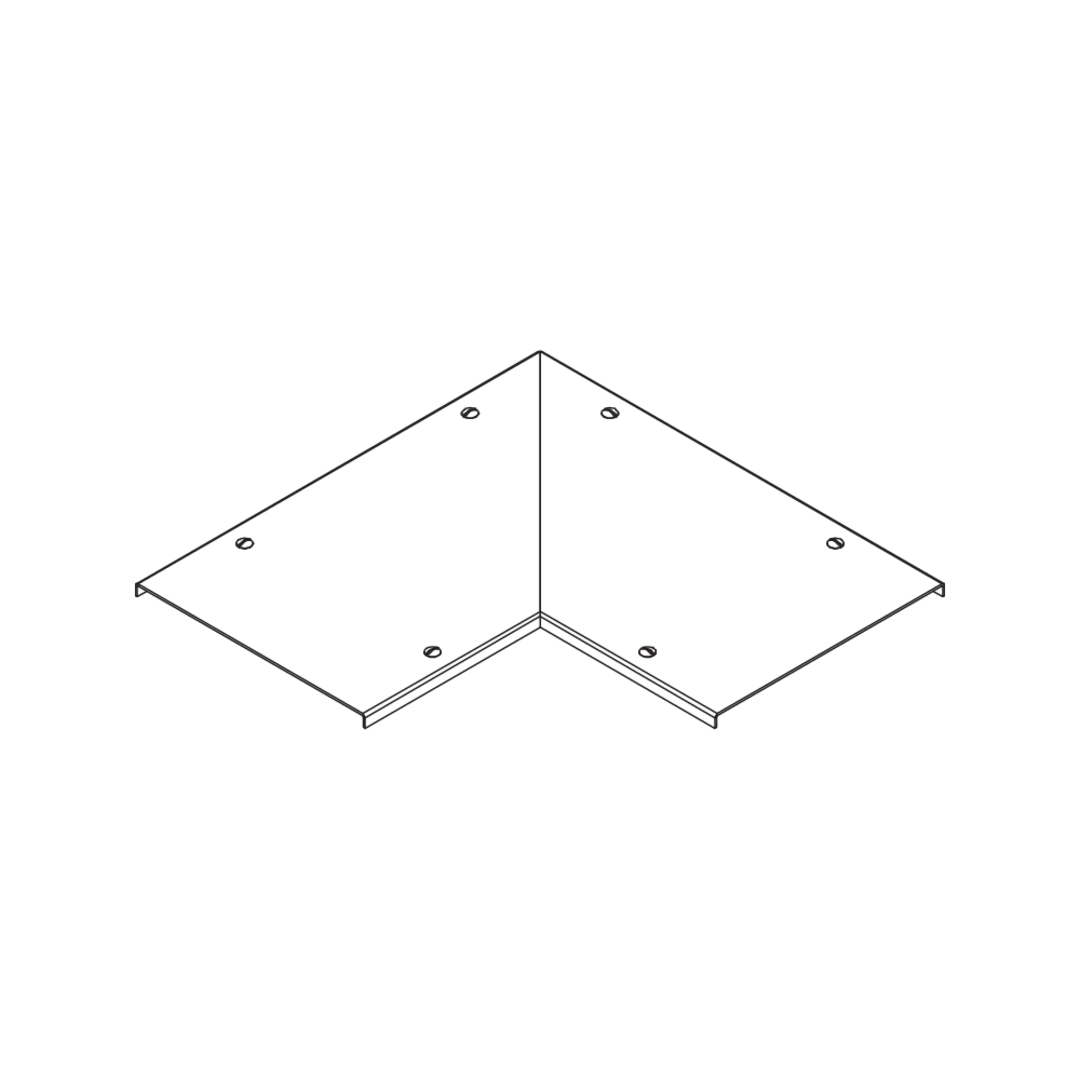

Floor duct bend cover with mitre cut and turnbuckles

The BKBGDR floor duct bend cover with mitre cut is placed on top of the BKBG floor duct bend and protects cables and supply lines from flying sparks and other mechanical influences. It is 100 to 600 mm wide corresponding to the bend. The floor duct bend cover is made of sendzimir hot-dip galvanised steel and is not embossed. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. They come with pre-assembled turning bolts.

Load requirements according to: EN 50085-2-2
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

t

material thickness

Pmax

maximum load

direction

Direction change

W

Angle

G

Weight per storage unit

Geeignet für Funktionserhalt

  • BKBGDR 10S
    Floor duct bend cover with mitre
    width
    100 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    1.264 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 15S
    Floor duct bend cover with mitre
    width
    150 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    1.860 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 20S
    Floor duct bend cover with mitre
    width
    200 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.523 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 30S
    Floor duct bend cover with mitre
    width
    300 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    4.080 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 40S
    Floor duct bend cover with mitre
    width
    400 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.980 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 50S
    Floor duct bend cover with mitre
    width
    500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    8.180 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • BKBGDR 60S
    Floor duct bend cover with mitre
    width
    600 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    10.700 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Loadable up to 5 kN
  • Easy assembly

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
