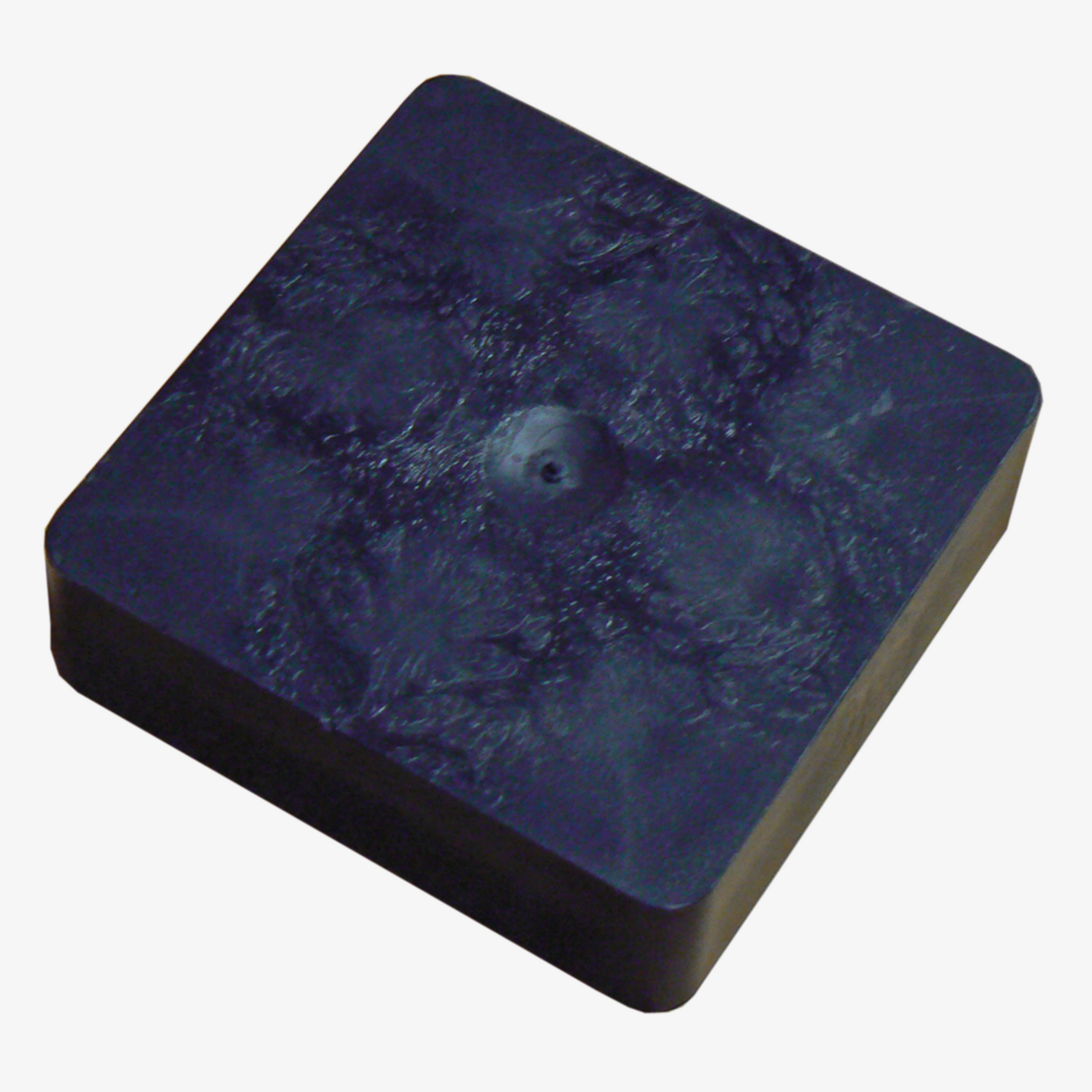

Base Plates Type V

Mounting aid

Pressure-resistant Base Plates Type V are used as assembly aids for aligning and erecting e.g. precast concrete elements. They are 70 mm across and 2 to 30 mm thick. Starting from a thickness of 10 mm, these are no longer solid panels.

Get in touchDownload datasheet

Variants

Article

G

Gewicht je Lagermengeneinheit

  • 730200005403
    Unterlagsplatten V 10
    Gewicht je Lagermengeneinheit
    0.048 kg
    More information
  • 730200005404
    Unterlagsplatten V 15
    Gewicht je Lagermengeneinheit
    0.072 kg
    More information
  • 730200005405
    Unterlagsplatten V 02
    Gewicht je Lagermengeneinheit
    0.009 kg
    More information
  • 730200005406
    Unterlagsplatten V 20
    Gewicht je Lagermengeneinheit
    0.096 kg
    More information
  • 730200005407
    Unterlagsplatten V 25
    Gewicht je Lagermengeneinheit
    0.125 kg
    More information
  • 730200005408
    Unterlagsplatten V 03
    Gewicht je Lagermengeneinheit
    0.014 kg
    More information
  • 730200005409
    Unterlagsplatten V 30
    Gewicht je Lagermengeneinheit
    0.144 kg
    More information
  • 730200005410
    Unterlagsplatten V 04
    Gewicht je Lagermengeneinheit
    0.020 kg
    More information
  • 730200005411
    Unterlagsplatten V 05
    Gewicht je Lagermengeneinheit
    0.024 kg
    More information
  • 730200005412
    Unterlagsplatten V 06
    Gewicht je Lagermengeneinheit
    0.030 kg
    More information
  • 730200005413
    Unterlagsplatten V 07
    Gewicht je Lagermengeneinheit
    0.033 kg
    More information
  • 730200005414
    Unterlagsplatten V 08
    Gewicht je Lagermengeneinheit
    0.038 kg
    More information
  • 730200005415
    Unterlagsplatten V 09
    Gewicht je Lagermengeneinheit
    0.043 kg
    More information
