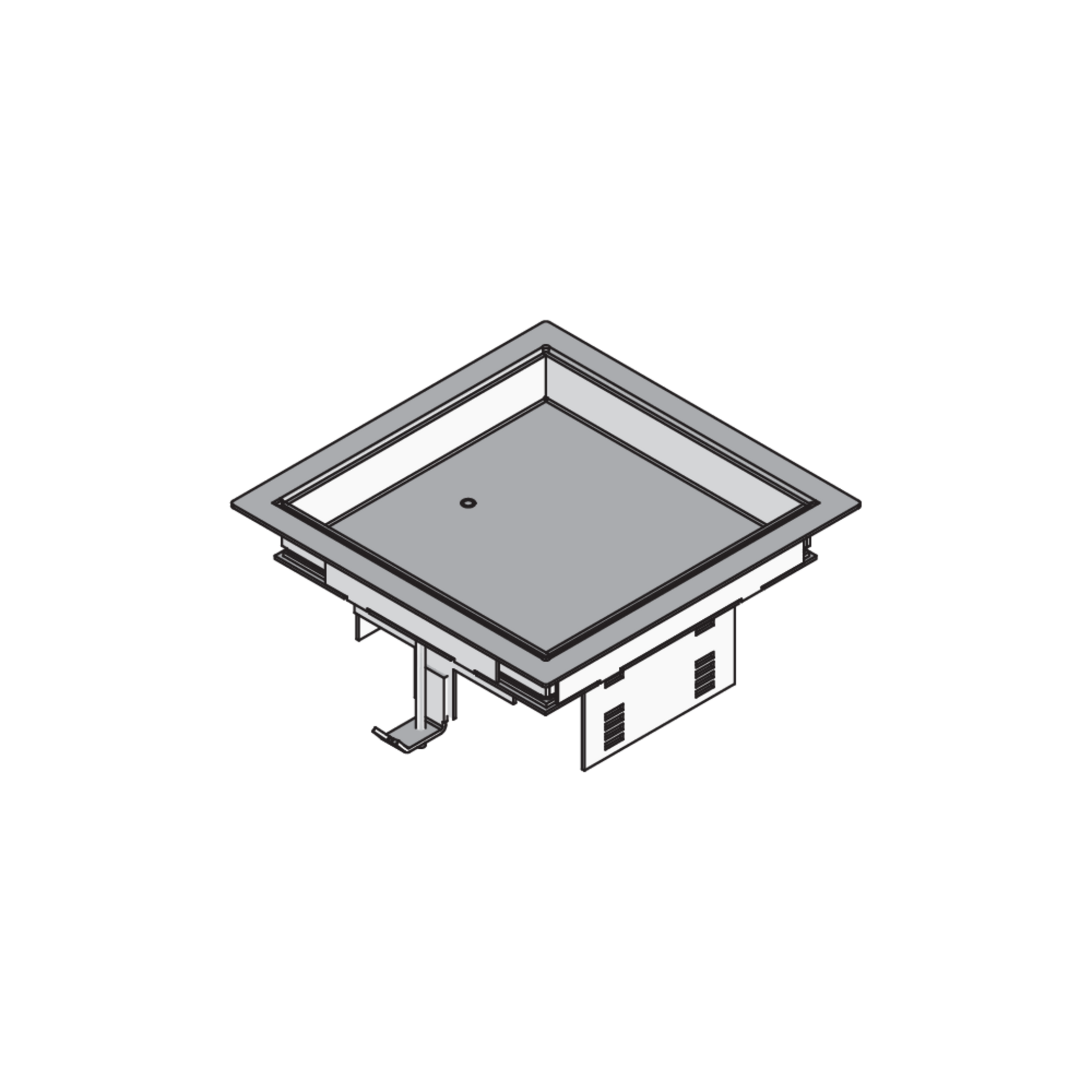

UEBDD1-2 V E

Stainless steel dummy cover cartridge, 1x, angular

UEBDD1-2 V E products are square dummy cover cartridges for accommodating a mounting box. The cartridge mounting frames are designed for rooms with dry-cleaned or damp-cleaned floor coverings with office traffic loads and are used in UBDHB floor sockets, assembly covers and raised or false floor openings. The installation units consist of a cartridge mounting frame with a dummy insert cartridge, rubber seal and universal claw set. They are made of stainless steel V2A and have an IP protection rating of IP 30 in an unused condition, a minimum installation height of 80 or 90 mm, an installation dimension of 165 x 165 mm, a width of 258 mm and a max. load capacity of 1.5 kN.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

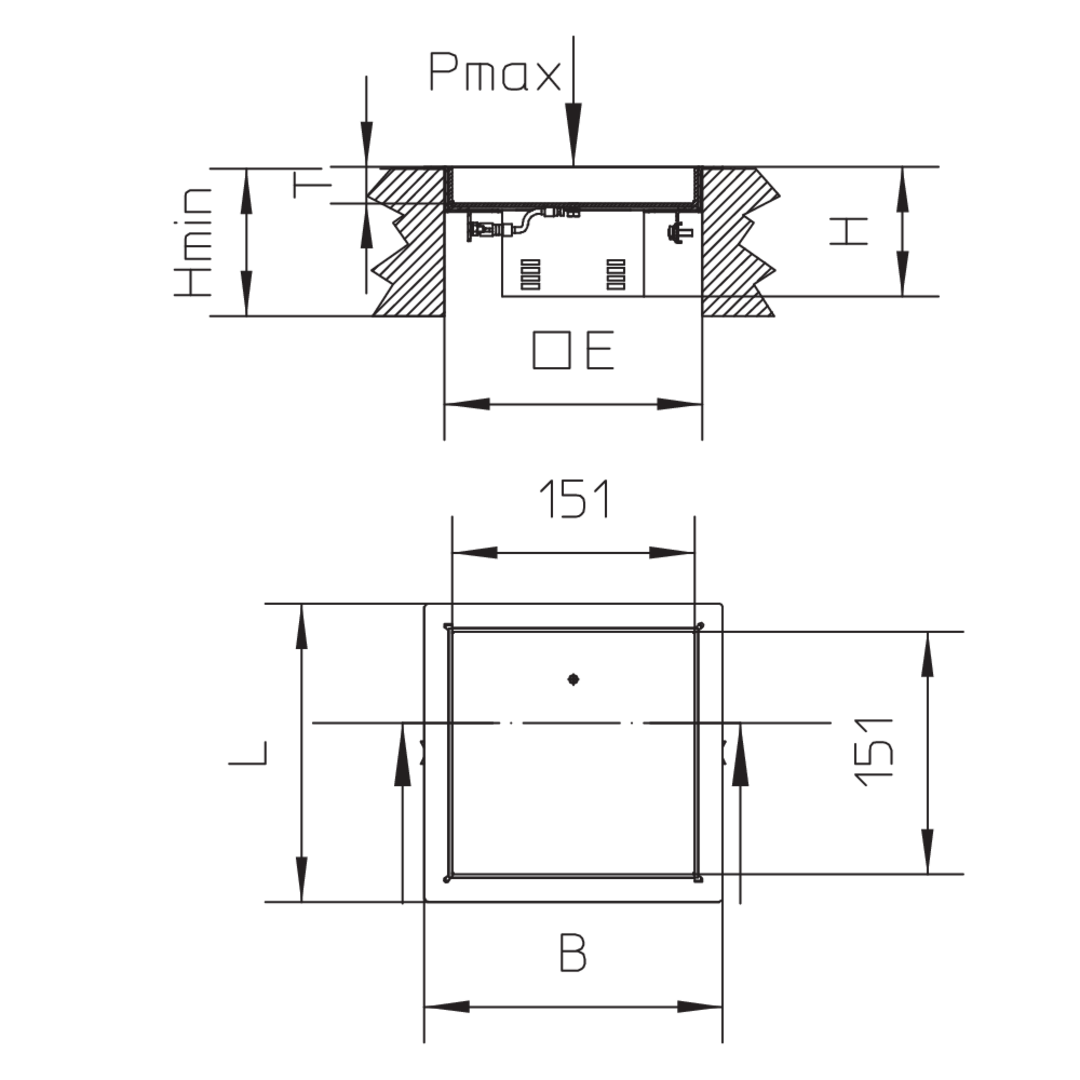

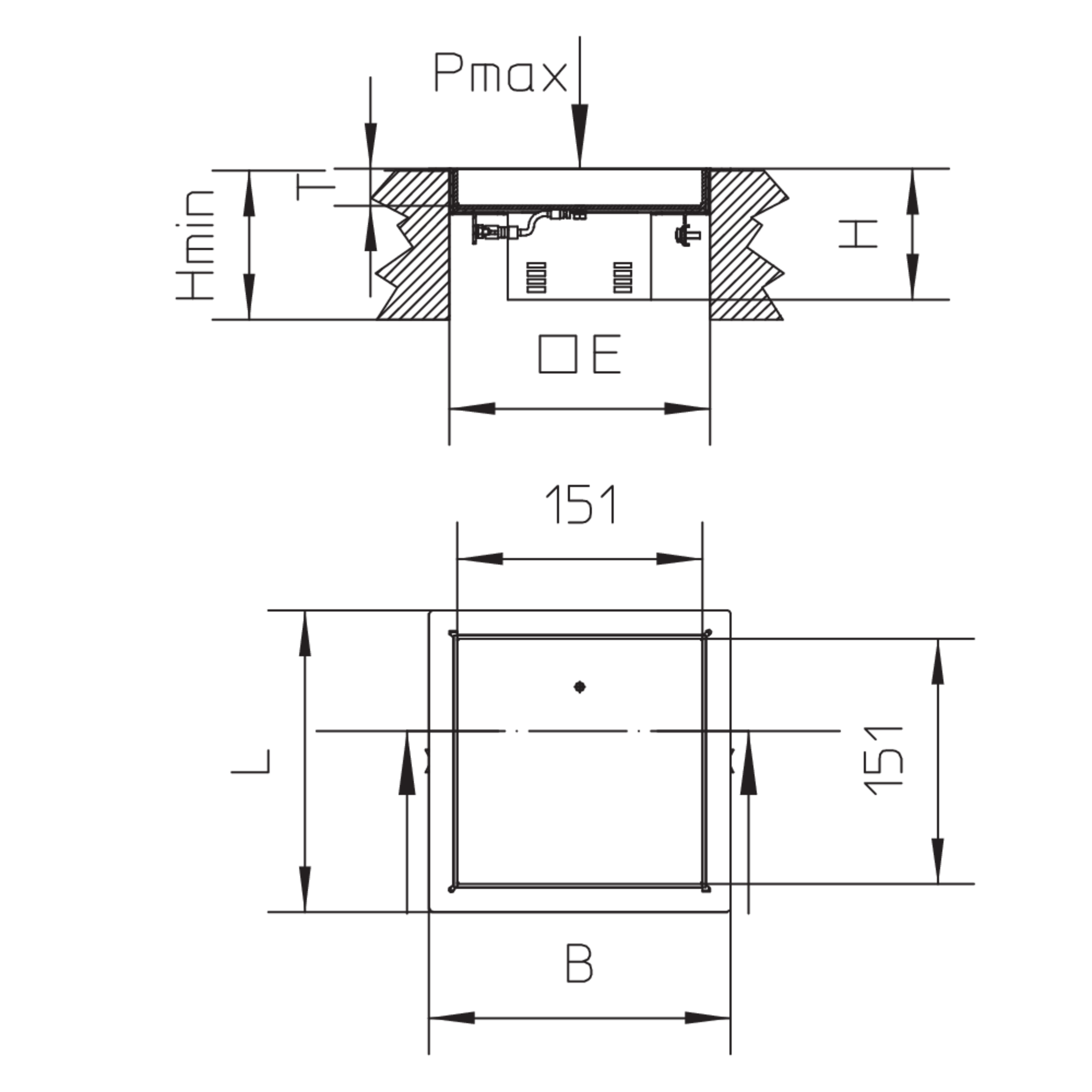

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

E

fitting dimension

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

  • UEBDD1-2 15-V E
    cartridge installation unit,
    height
    71 mm
    minimum installation height
    81 mm
    width
    186 mm
    length
    186 mm
    maximum load
    1.50 kN
    fitting dimension
    165 x 165 mm
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    12 mm
    Weight per storage unit
    1.026 kg
    Included accessories
    More information
  • UEBDD1-2 25-V E
    cartridge installation unit,
    height
    81 mm
    minimum installation height
    91 mm
    width
    186 mm
    length
    186 mm
    maximum load
    1.50 kN
    fitting dimension
    165 x 165 mm
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    22 mm
    Weight per storage unit
    1.181 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13 mm: 1.5 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP, 13.12 MB

    DownloadDownload
