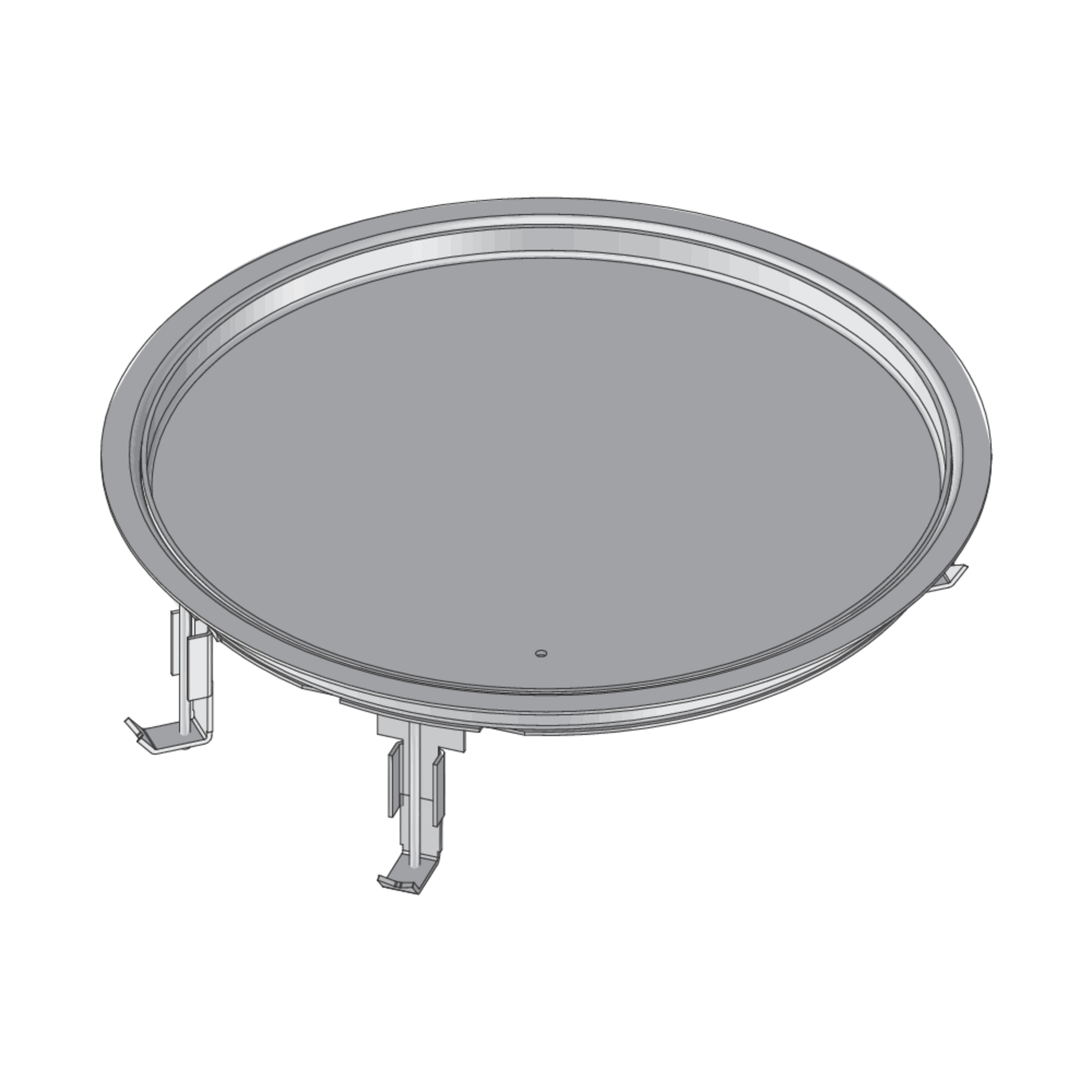

UEBDD R E

Stainless steel dummy cover cartridge, 3x, round

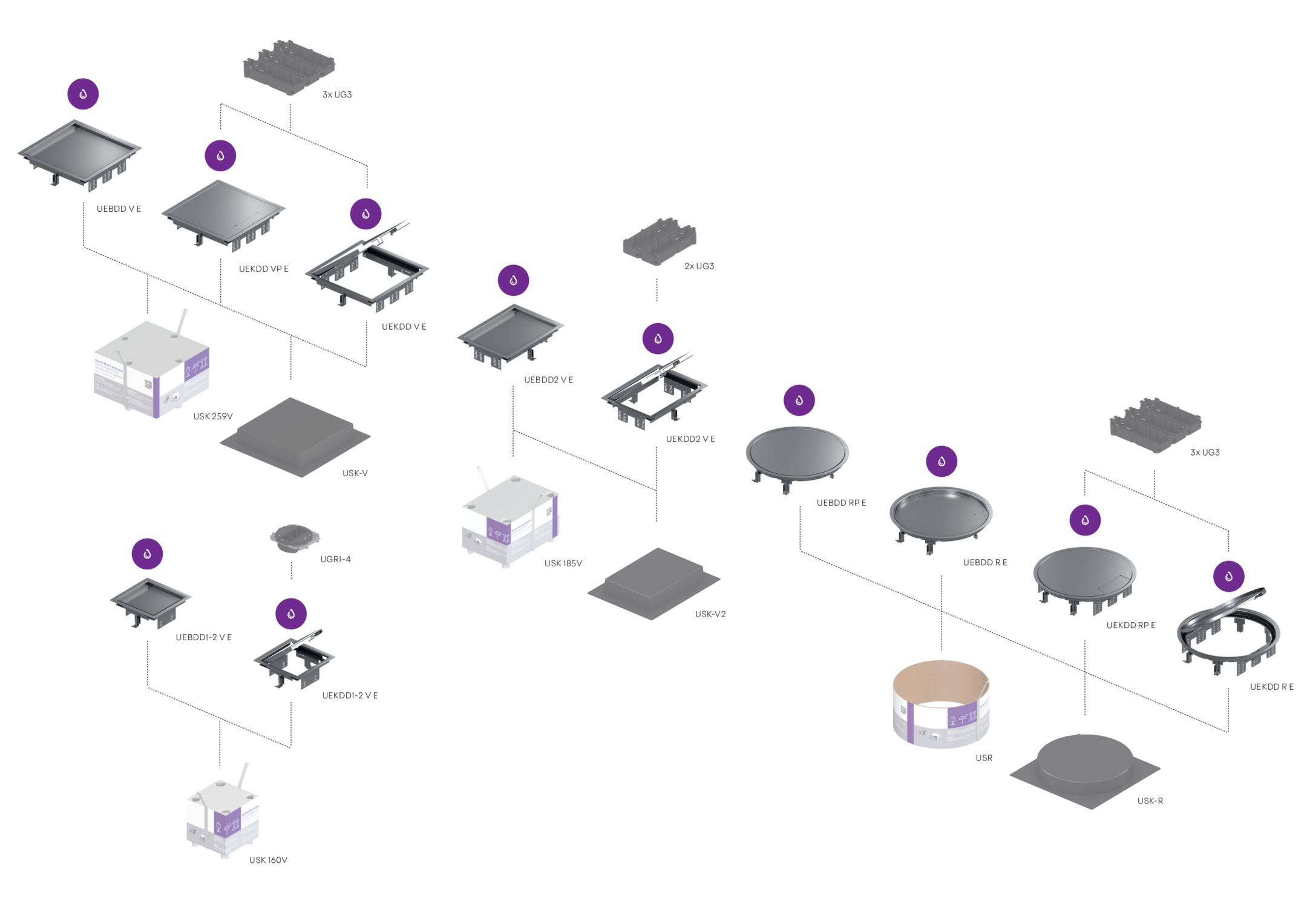

UEBDD R E components are round dummy cover cartridges for the installation of up to three mounting boxes. These installation units consist of a floor covering protection frame with a dummy insert cartridge, a UGD-R rubber seal and the universal fixing claw set UDBS 40-80. They are designed for dry-cleaned or damp-cleaned rooms with office traffic loads and are used in floor sockets, assembly covers and raised or false floor openings. Both the cartridge and the frame are made of stainless steel V2A. They have an IP protection class of IP 30 in an unused condition, an IP protection class of IP 20 when used, an installation dimension of 307 mm, a minimum installation height of 90 or 100 mm and a max. load of 2 kN.

moistly maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

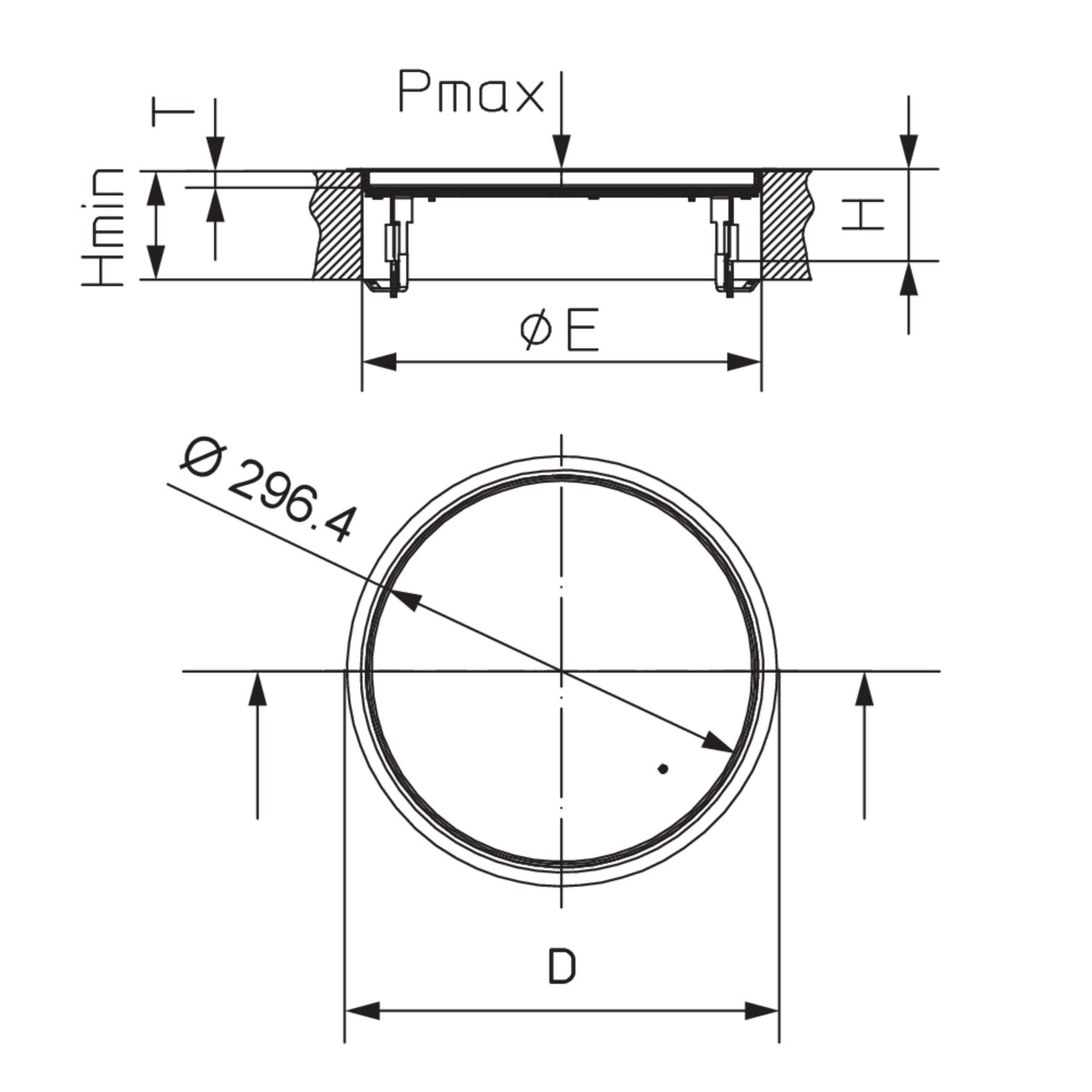

height

Hmin

minimum installation height

D

Diameter (mm)

Pmax

maximum load

mounting box

maximum number of installable device casings

ØE

fitting dimension round

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDD 15-R E
    cartridge installation unit,
    height
    71 mm
    minimum installation height
    90 mm
    Diameter (mm)
    330 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    12 mm
    Weight per storage unit
    2.177 kg
    Included accessories
    More information
  • UEBDD 25-R E
    cartridge installation unit,
    height
    81 mm
    minimum installation height
    100 mm
    Diameter (mm)
    330 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension round
    307 mm
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.437 kg
    Included accessories
    More information

Details

  • moistly maintained
  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN
