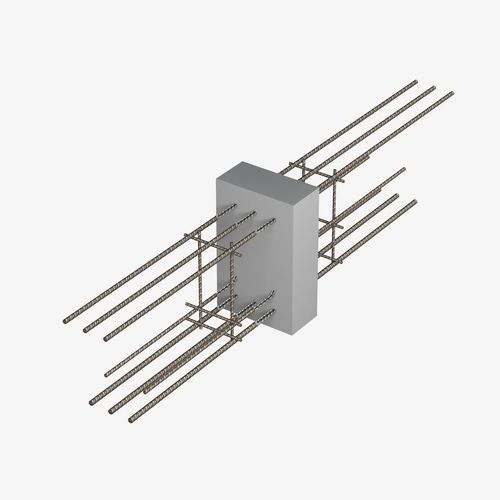

The load-bearing H-BAU Technik ISOPRO® 120 thermal insulation element has an insulating body 120 mm thick. It provides thermal separation at the transition between internal and external concrete components and at the same time guarantees a frictional connection across the insulation joint. Thanks to the shear force bars anchored in the thrust bearing, the element can simply be inserted from above between the external component and the storey ceiling for easier installation. ISOPRO® 120 is available with different load-bearing levels and element heights. Use our web application ISOCHECK to find out which DIN 4108 (supplement 2) category your chosen thermal insulation element achieves in your building project in just a few steps.
Advantages
- Optimised materials and cross-sections for good thermal insulation
- Variety of different types and designs for all common applications
- Easy processing on construction sites due to thrust bearing
- Preferred elements kept in stock for fast delivery
- Custom adaptation of the product range in close cooperation with the Application Technology department for unusual applications
- ISODESIGN software makes is easy to design the connections
Technical Details
- National technical approval according to Z-15.7-331 and Z-15.7-243, DIBt Berlin
- 120 mm insulating body: made of NEOPOR® with λ = 0.031 W/mK
- Reinforcement bars: made of B500B reinforcing steel
- Thrust bearing: made of high-performance special concrete
- Fireproof panels: Fibre-cement panels of building material class A1 with fire-resistance layer
