Variants
Article
G
Weight per storage unit
- 234800021169
IP120 O1Weight per storage unit2.300 kg - 234800021170
IP120 O2Weight per storage unit2.400 kg

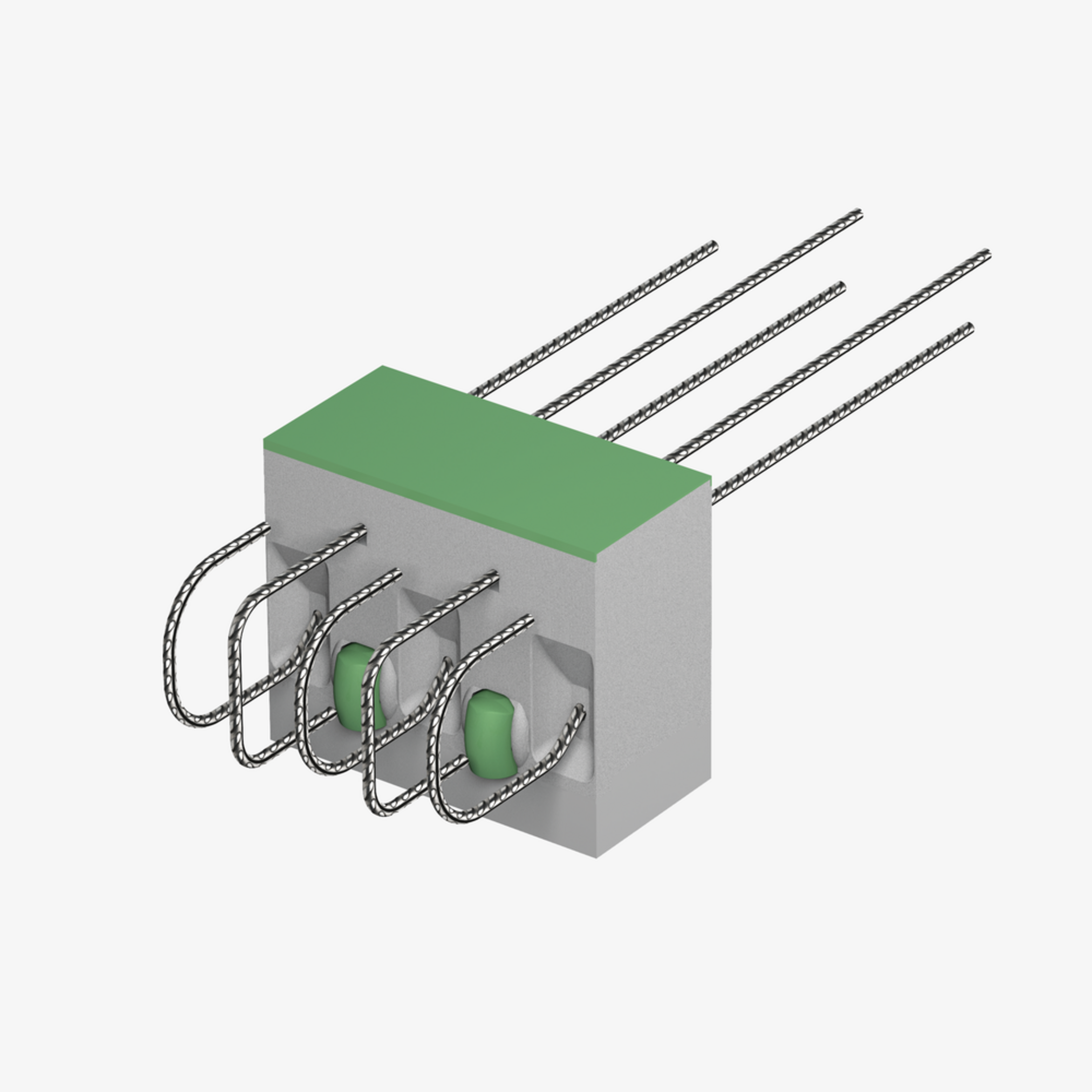

ISOPRO® IP 120 O
ISOPRO® IP 120 O is a thermally insulated connection with a 120 mm insulating body for connecting floor slabs with reinforced concrete brackets used as supports for masonry or precast elements. It is suitable for transmitting shear forces, the resulting moments and horizontal forces. These elements are used at specific points depending on the relevant structural requirements. The stainless steel rebar is resistant to corrosion. It complies with fire protection requirements: ISOPRO® IP 120 O is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.
General building approval: Z-15.7-331
Details
- General building approval: Z-15.7-331
- Europäische Technical Assessment
Tender texts
Downloads
de
en
de
en
de
en
ru
de
en
Price list 2025 Shell construction / facade
Valid from February 1, 2025, updated version from 27/09/2025.
Planner software ISODESIGN 1.4.4
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120
ZIP, 53.31 MB
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance for ISOPRO® thermal insulation elements
ISOPRO® 120 Thermal insulation elements - Technical information
Technical Information
ISOPRO® 120 - Installation instructions
Installation instruction for balcony insulation elements ISOPRO® 120 M, ISOPRO® 120 M P, ISOPRO® 120 Q, ISOPRO® 120 QQ
Included accessories
