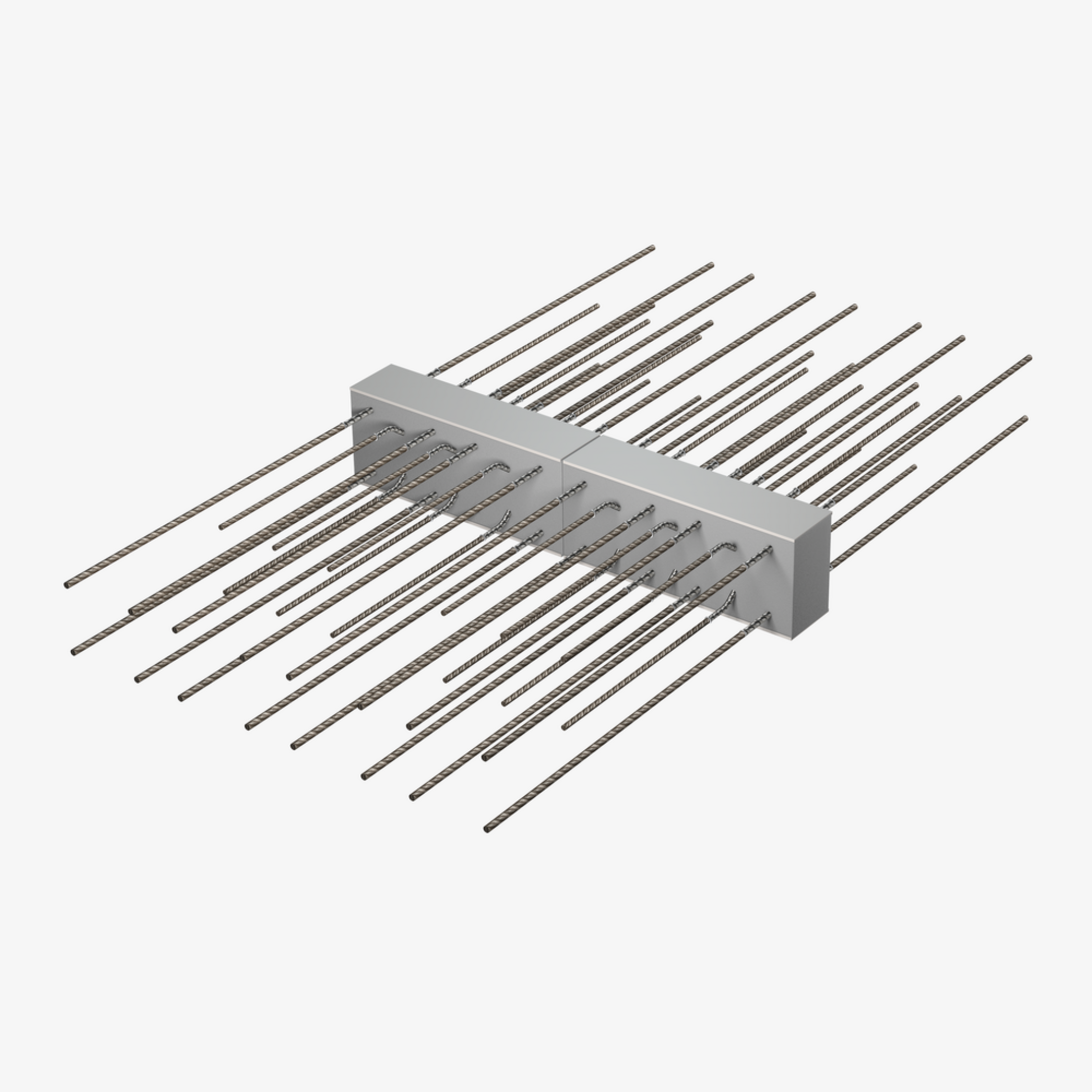

ISOPRO® IP 120 D

ISOPRO® IP 120 D is a thermally insulated slab connection with a 120 mm insulating body for continuous reinforced concrete slabs. It is suitable for transmitting moments and shear forces. The stainless steel rebar is resistant to corrosion. The tension and compression plane consists of steel compression bars. It complies with fire protection requirements: ISOPRO® IP 120 D is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, shear force bearing capacity, concrete cover, element height and fire protection version when ordering.

European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Get in touchDownload datasheet

Variants

Article

General Building Approval

G

Weight per storage unit

  • 234500021127
    IP120 D20 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    14.500 kg
    More information
  • 234500021130
    IP120 D30 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    22.200 kg
    More information
  • 234500021133
    IP120 D50 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    31.900 kg
    More information
  • 234500021136
    IP120 D70 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    43.700 kg
    More information
  • 234500021139
    IP120 D90 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    59.300 kg
    More information
  • 234500021142
    IP120 D100 Q8
    General Building Approval
    Z-15.7-354 (combined with ETA-17/0466)
    Weight per storage unit
    66.000 kg
    More information

Details

  • European Technical Assessment: ETA-17/0466
  • General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
  • Europäische Technical Assessment ETA-17/0466

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Shell construction / facade

    Choose language to download

    Planner software ISODESIGN 1.4.4

    Software for designing our thermal insulation elements ISOPRO and ISOPRO 120

    ZIP (53.31 MB)

    DownloadDownload

    • de

    • en

    Declaration of Performance ISOPRO®

    Declaration of Performance for ISOPRO® thermal insulation elements

    PDF

    Choose languageChoose language

    Declaration of Performance ISOPRO®

    Choose language to download

    • de

    • en

    • ru

    ISOPRO® 120 Thermal insulation elements - Technical information

    Technical Information

    PDF

    Choose languageChoose language

    ISOPRO® 120 Thermal insulation elements - Technical information

    Choose language to download

    • de

    • en

    ISOPRO® 120 - Installation instructions

    Installation instruction for balcony insulation elements ISOPRO® 120 M, ISOPRO® 120 M P, ISOPRO® 120 Q, ISOPRO® 120 QQ

    PDF

    Choose languageChoose language

    ISOPRO® 120 - Installation instructions

    Choose language to download

    • de

    Construction Approval ISOPRO®

    The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 1 July 2026.
