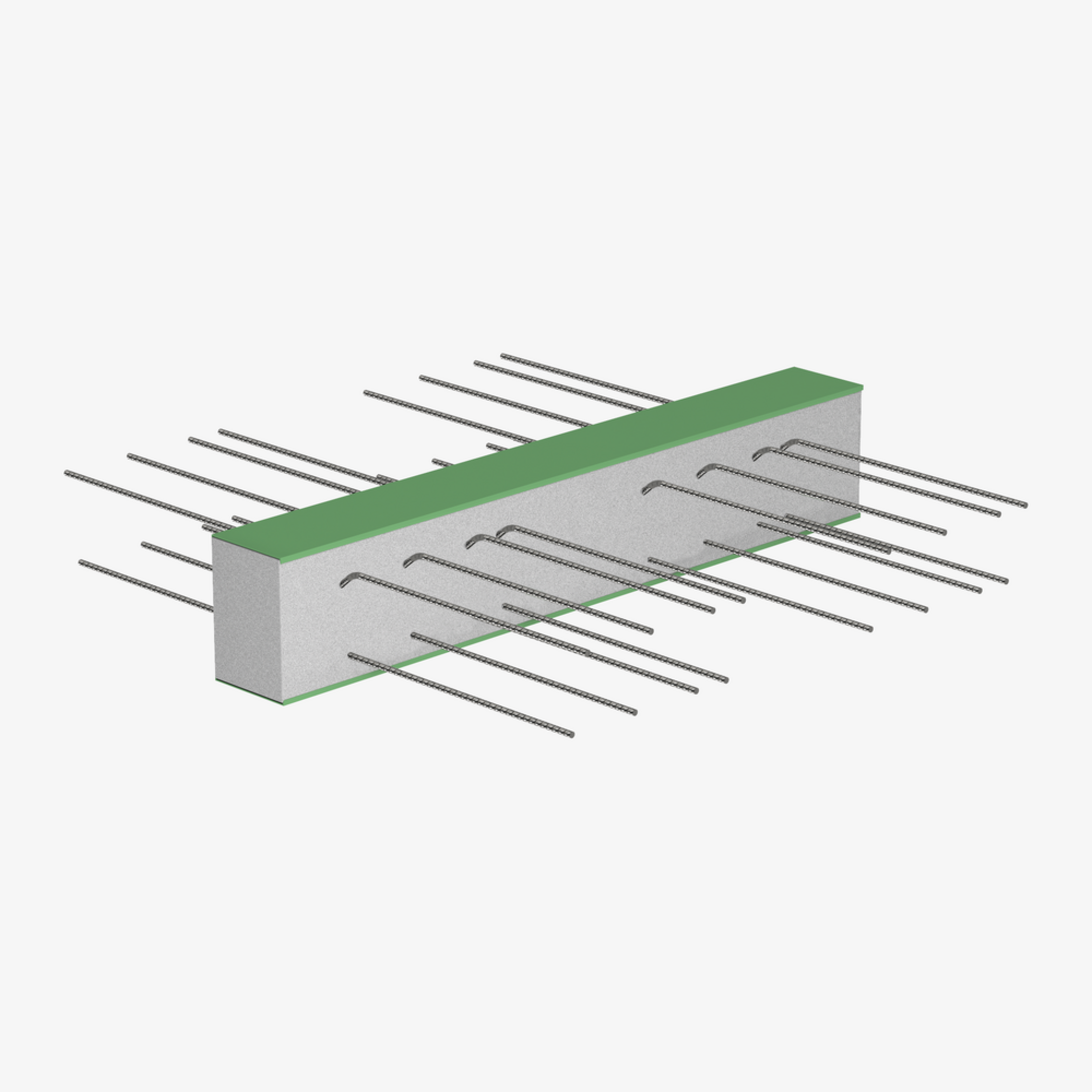

ISOPRO® IP 120 QQZ

European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Get in touchDownload datasheet

Variants

Article

Q-bar on ceiling side

Element lenght

height (range)

  • 233800021078
    IP120 QQZ10
    Q-bar on ceiling side
    Curved
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021079
    IP120 QQZ20
    Q-bar on ceiling side
    Curved
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021080
    IP120 QQZ30
    Q-bar on ceiling side
    Curved
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021081
    IP120 QQZ40
    Q-bar on ceiling side
    Curved
    Element lenght
    1000 mm, 500 mm, 250 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021082
    IP120 QQZ50
    Q-bar on ceiling side
    Curved
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021083
    IP120 QQZ60
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021084
    IP120 QQZ70
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm, 250 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021085
    IP120 QQZ80
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    160 - 250 mm
    More information
  • 233800021086
    IP120 QQZ90
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm, 250 mm mm
    height (range)
    170 - 250 mm
    More information
  • 233800021087
    IP120 QQZ100
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    170 - 250 mm
    More information
  • 233800021088
    IP120 QQZ110
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm, 250 mm mm
    height (range)
    180 - 250 mm
    More information
  • 233800021089
    IP120 QQZ120
    Q-bar on ceiling side
    Straight
    Element lenght
    1000 mm, 500 mm mm
    height (range)
    180 - 250 mm
    More information

Details

  • Fire resistance up to REI 120 available, including half-metre and quarter-metre sections with all-round fire protection
  • Standard heights from 160 mm to 250 mm are available. Other heights and designs are available on request.
  • 120 mm insulation thickness for maximum thermal insulation
  • Planning certainty provided by European Technical Assessment ETA-17-0466 and general type approval Z-15.7-354
