ISOPRO® IP 120 QQ

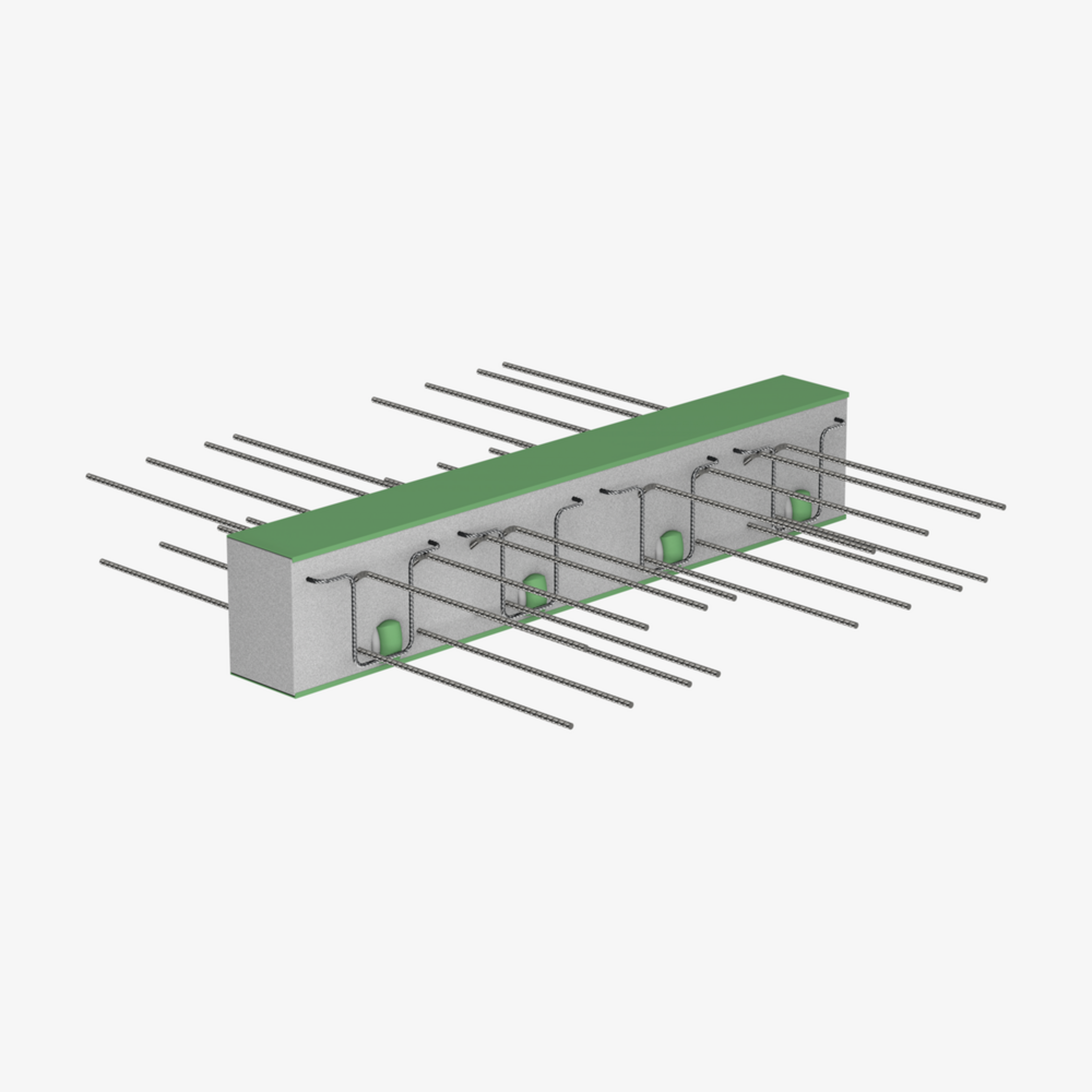

ISOPRO® IP 120 QQ is a thermally insulated slab connection with a 120 mm insulating body for transmitting positive and negative shear forces in supported reinforced concrete components with uplifting loads. The stainless steel rebar is resistant to corrosion. It complies with fire protection requirements: ISOPRO® IP 120 QQ is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.

Type testing ISOPRO® 120 thermal insulation element
Test report no. 4117/6 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.

Fire resistance up to REI 120 available, including half-metre and quarter-metre sections with all-round fire protection.

European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Type approval: 4117/6
Get in touchDownload datasheet

Variants

Q-bar on ceiling side: Curved

Article

Element lenght

Height

height (range)

  • 233700021066
    IP120 QQ10
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021067
    IP120 QQ20
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021068
    IP120 QQ30
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021069
    IP120 QQ40
    Element lenght
    1000; 500; 250 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021070
    IP120 QQ50
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information

Q-bar on ceiling side: Straight

Article

Element lenght

Height

height (range)

  • 233700021071
    IP120 QQ60
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021072
    IP120 QQ70
    Element lenght
    1000; 500; 250 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021073
    IP120 QQ80
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233700021074
    IP120 QQ90
    Element lenght
    1000; 500; 250 mm
    height (range)
    170 - 250 mm
    More information
  • 233700021075
    IP120 QQ100
    Element lenght
    1000; 500 mm
    height (range)
    170 - 250 mm
    More information
  • 233700021076
    IP120 QQ110
    Element lenght
    1000; 500; 250 mm
    height (range)
    180 - 250 mm
    More information
  • 233700021077
    IP120 QQ120
    Element lenght
    1000; 500 mm
    height (range)
    180 - 250 mm
    More information

Details

  • Standard heights from 160 mm to 250 mm are available. Other heights and designs are available on request.
  • 120 mm insulation thickness for maximum thermal insulation
  • Planning certainty provided by European Technical Assessment ETA-17-0466 and general type approval Z-15.7-354
  • Europäische Technical Assessment ETA-17/0466

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    • ru

    ISOPRO® 120 Thermal insulation elements - Technical information

    Technical Information

    PDF

    Choose languageChoose language

    ISOPRO® 120 Thermal insulation elements - Technical information

    Choose language to download

    • de

    • en

    ISOPRO® 120 - Installation instructions

    Installation instruction for balcony insulation elements ISOPRO® 120 M, ISOPRO® 120 M P, ISOPRO® 120 Q, ISOPRO® 120 QQ

    PDF

    Choose languageChoose language

    ISOPRO® 120 - Installation instructions

    Choose language to download

    • de

    Type Approval ISOPRO® 120 Thermal Insulation Element

    Test report No. 4117/6 confirms the suitability of ISOPRO® 120 thermal insulation elements in accordance with the applicable building regulations.

    PDF (3.80 MB)

    DownloadDownload

    • de

    • en

    European Technical Assessment (ETA) ISOPRO®

    ETA-17/0466

    PDF

    Choose languageChoose language

    European Technical Assessment (ETA) ISOPRO®

    Choose language to download

    • de

    Construction Approval ISOPRO®

    The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 19 May 2031.

    PDF (1,016.09 KB)

    DownloadDownload

    • de

    • en

    • pl

    Declaration of Performance ISOPRO®

    Declaration of Performance No. DOP_ISOPRO_0526_EN

    PDF

    Choose languageChoose language

    Declaration of Performance ISOPRO®

    Choose language to download

    • de

    • en

    Price list 2026 Shell construction / facade

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Shell construction / facade

    Choose language to download

    Planner software ISODESIGN

    Software for designing our thermal insulation elements ISOPRO and ISOPRO 120, version 1.4.4

    ZIP (53.31 MB)

    DownloadDownload

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
