ISOPRO® IP 120 QZ

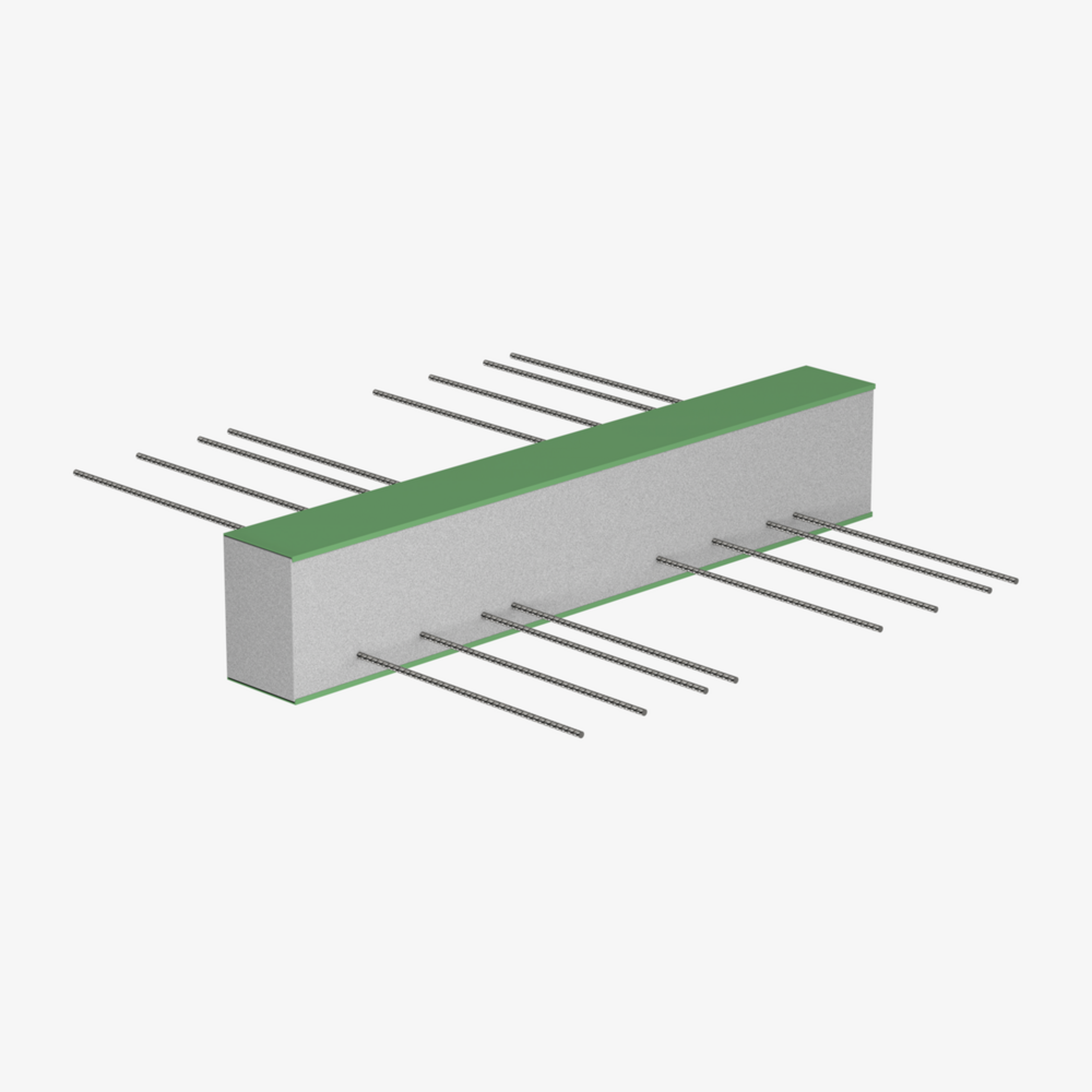

ISOPRO® IP 120 QZ is a thermally insulated slab connection with a 120 mm insulating body for transmitting shear forces in supported reinforced concrete components. The stainless steel rebar is resistant to corrosion. For the purpose of tension-free support, this item does not have a pressure component. It complies with fire protection requirements: ISOPRO® IP 120 QZ is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.

Type testing ISOPRO® 120 thermal insulation element
Test report no. 4117/6 confirms the suitability of ISOPRO® thermal insulation elements in accordance with the applicable building regulations.

Fire resistance up to REI 120 available, including half-metre and quarter-metre sections with all-round fire protection.

European Technical Assessment: ETA-17/0466
General Building Approval: Z-15.7-354 (combined with ETA-17/0466)
Type approval: 4117/6
Get in touchDownload datasheet

Variants

Q-bar on ceiling side: Curved

Article

Element lenght

Height

height (range)

  • 233600021054
    IP120 QZ10
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021055
    IP120 QZ20
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021056
    IP120 QZ30
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021057
    IP120 QZ40
    Element lenght
    1000; 500; 250 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021058
    IP120 QZ50
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information

Q-bar on ceiling side: Straight

Article

Element lenght

Height

height (range)

  • 233600021059
    IP120 QZ60
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021060
    IP120 QZ70
    Element lenght
    1000; 500; 250 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021061
    IP120 QZ80
    Element lenght
    1000; 500 mm
    height (range)
    160 - 250 mm
    More information
  • 233600021062
    IP120 QZ90
    Element lenght
    1000; 500; 250 mm
    height (range)
    170 - 250 mm
    More information
  • 233600021063
    IP120 QZ100
    Element lenght
    1000; 500 mm
    height (range)
    170 - 250 mm
    More information
  • 233600021064
    IP120 QZ110
    Element lenght
    1000; 500; 250 mm
    height (range)
    180 - 250 mm
    More information
  • 233600021065
    IP120 QZ120
    Element lenght
    1000; 500 mm
    height (range)
    180 - 250 mm
    More information

Details

  • Standard heights from 160 mm to 250 mm are available. Other heights and designs are available on request.
  • 120 mm insulation thickness for maximum thermal insulation
  • Planning certainty provided by European Technical Assessment ETA-17-0466 and general type approval Z-15.7-354
