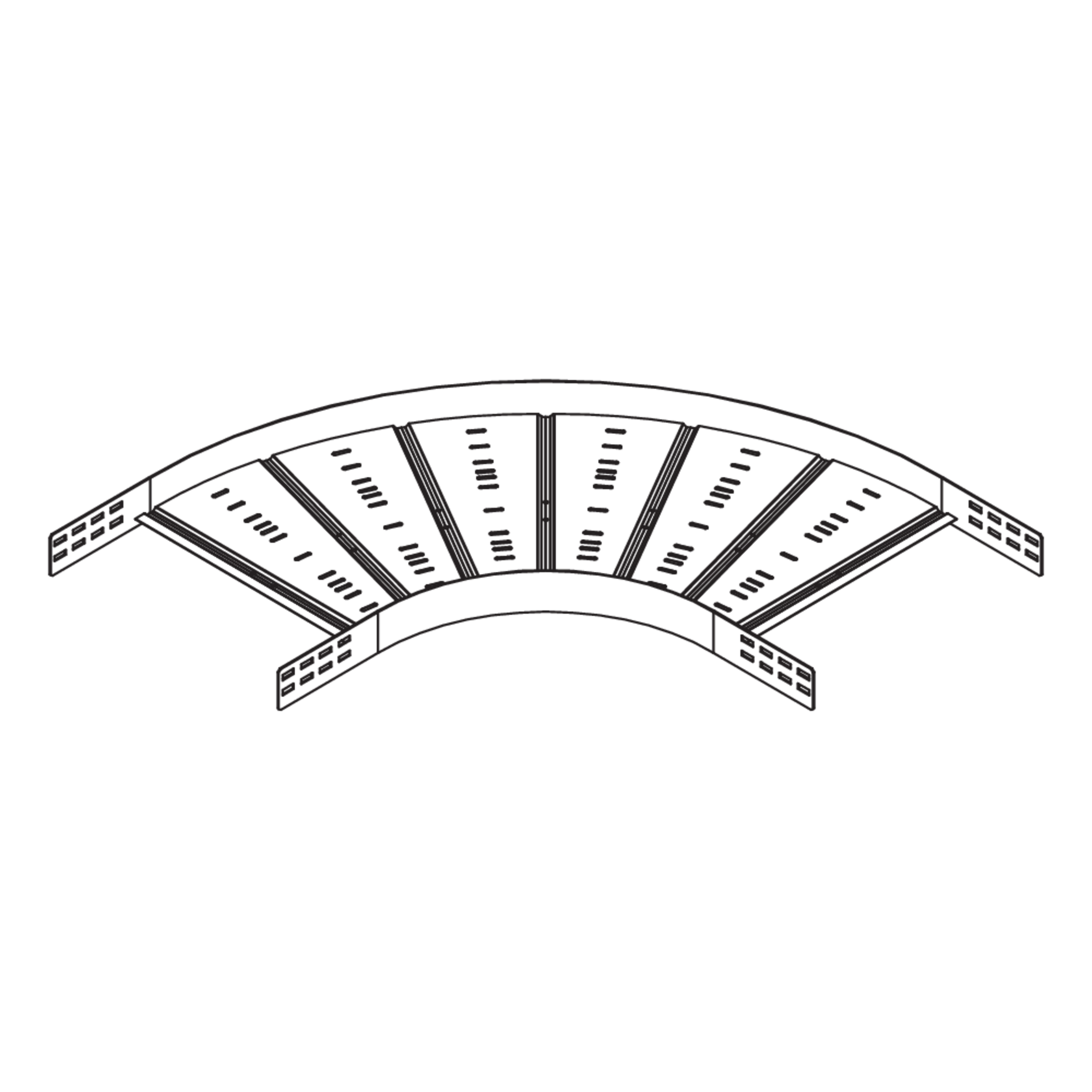

WPRB 100

Wide-span cable tray bend, height = 100 mm

The wide-span cable tray bends WPRB 100 with integrated side connectors allow the direction of cable routing to be changed horizontally by 90°. They are suitable for wide-span cable trays with side rails 100 mm high and are 200 to 600 mm wide. The bend with an inner radius of 450 mm is inserted into the wide-span cable tray with a VB floor connector and bolted in place. The connecting channel is then mounted on the bend with a floor connector. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

Geeignet für Funktionserhalt

  • WPRB 100-20E
    Wide-span cable tray bend
    height
    100 mm
    width
    200 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    8.128 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPRB 100-30E
    Wide-span cable tray bend
    height
    100 mm
    width
    300 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    9.408 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPRB 100-40E
    Wide-span cable tray bend
    height
    100 mm
    width
    400 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    10.828 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPRB 100-50E
    Wide-span cable tray bend
    height
    100 mm
    width
    500 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    12.378 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • WPRB 100-60E
    Wide-span cable tray bend
    height
    100 mm
    width
    600 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    14.048 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information

Details

  • Creates horizontal changes of the cable routing direction by 90°.
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

BIM- und CAD-Data

    BIM for Wide-span Systems

    BIM Data

    ZIP, 12.34 MB

    DownloadDownload
