WPBD

Wide-span bend cover

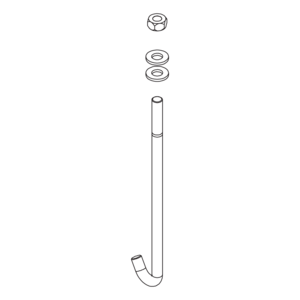

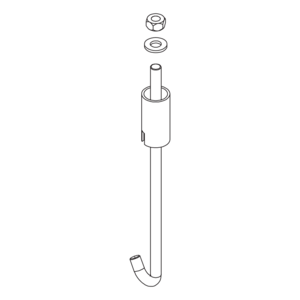

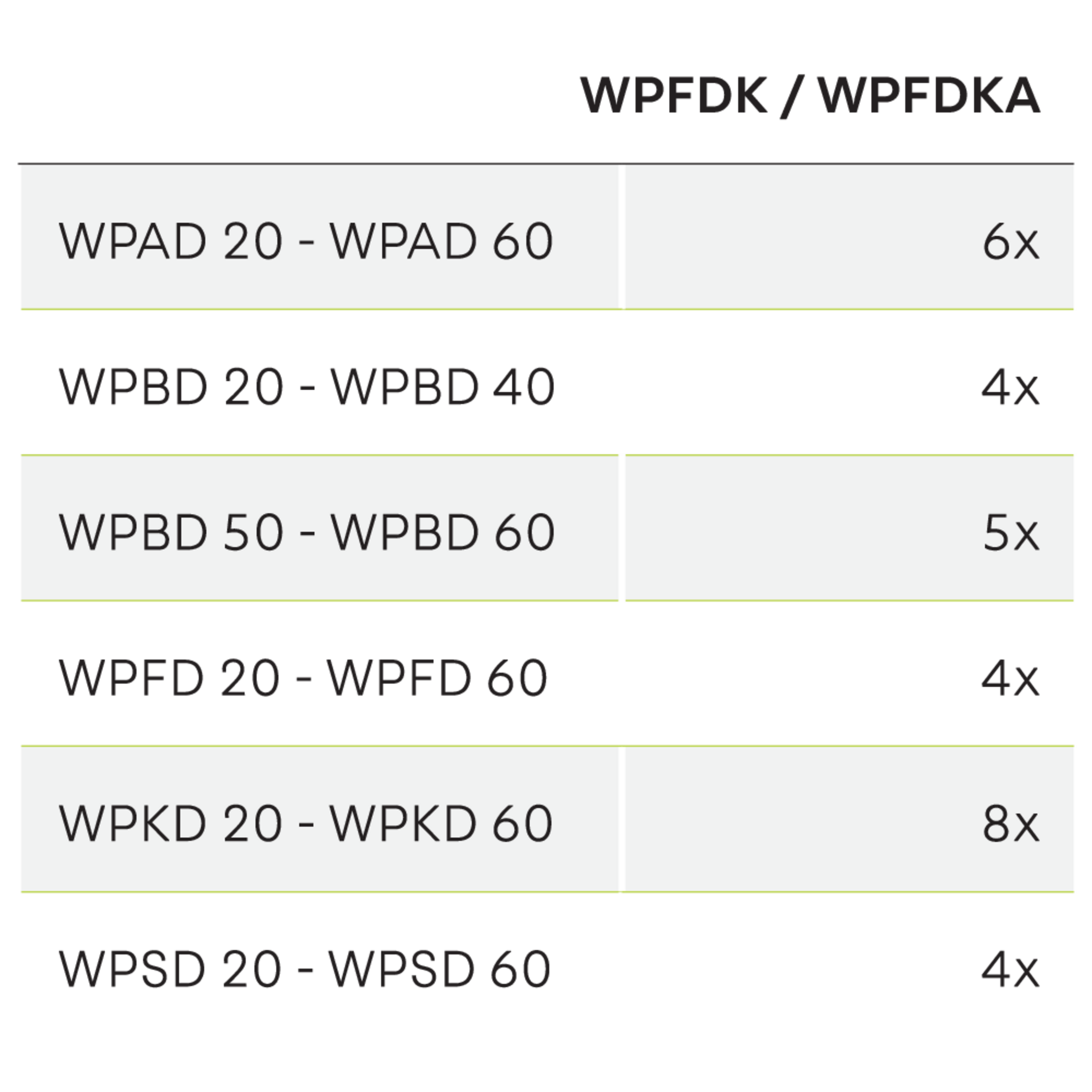

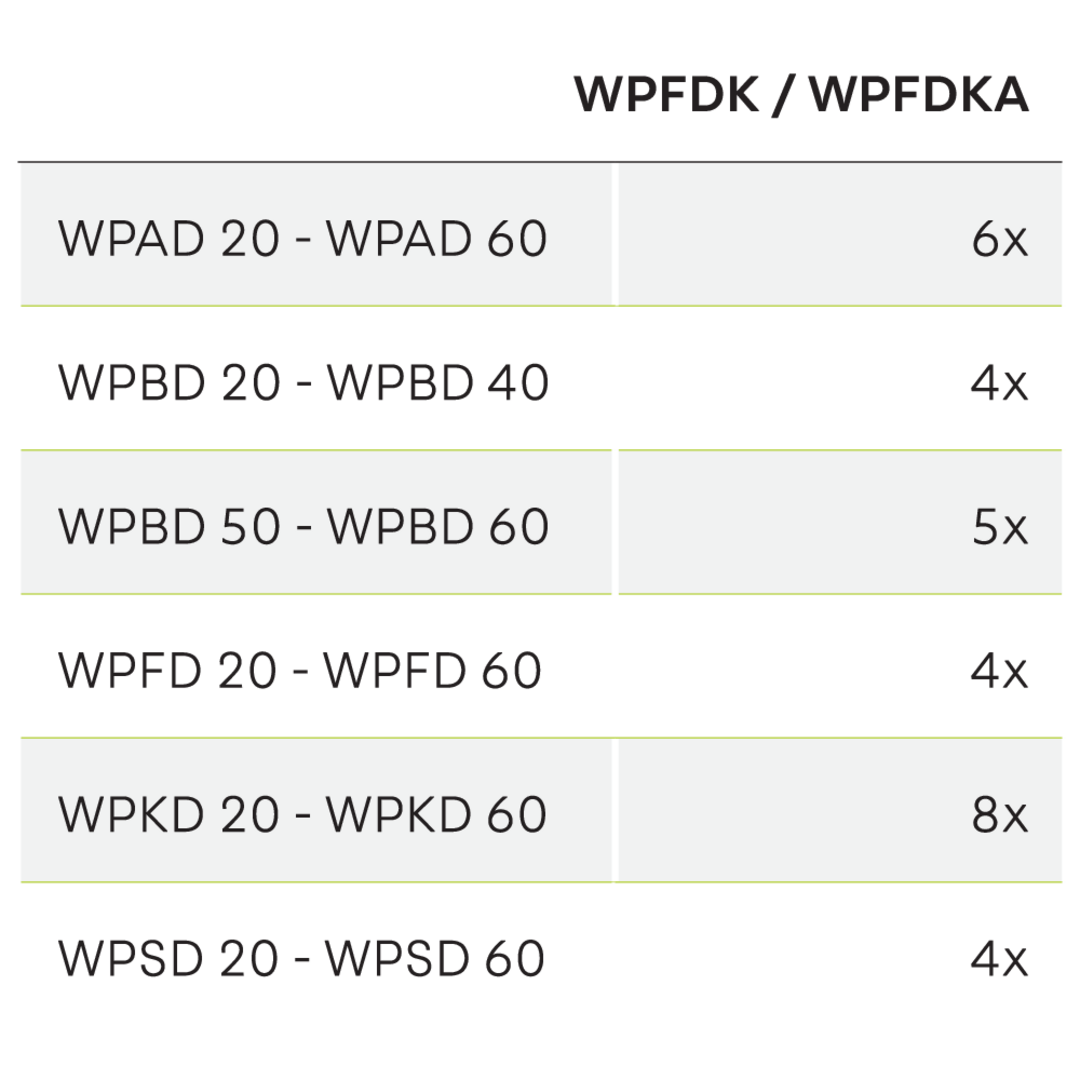

The wide-span bend cover WPBD is suitable for WPLB and WPRB wide-span bends and protects them from dirt, moisture and UV radiation. It is placed on top of the bend and secured with WPFDK or WPFDKA formed part cover clips. The latter are used if the cover is elevated. This improves the ventilation of the cables. The cover has a radius of 450 mm corresponding to the bend. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

  • WPBD 20S
    Wide-span bend cover WPBD 20S
    width
    251 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.350 kg
    More information
  • WPBD 30S
    Wide-span bend cover WPBD 30S
    width
    351 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    4.360 kg
    More information
  • WPBD 40S
    Wide-span bend cover WPBD 40S
    width
    451 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.800 kg
    More information
  • WPBD 50S
    Wide-span bend cover WPBD 50S
    width
    551 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    9.130 kg
    More information
  • WPBD 60S
    Wide-span bend cover WPBD 60S
    width
    651 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    11.240 kg
    More information

Steel, hot-dip galvanised

Article

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

  • WPBD 20F
    Wide-span bend cover WPBD 20F
    width
    251 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.510 kg
    More information
  • WPBD 30F
    Wide-span bend cover WPBD 30F
    width
    351 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    4.760 kg
    More information
  • WPBD 40F
    Wide-span bend cover WPBD 40F
    width
    451 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    6.200 kg
    More information
  • WPBD 50F
    Wide-span bend cover WPBD 50F
    width
    551 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    9.770 kg
    More information
  • WPBD 60F
    Wide-span bend cover WPBD 60F
    width
    651 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    12.030 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

B

width

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit

  • WPBD 20E
    Wide-span bend cover WPBD 20E
    width
    251 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    2.510 kg
    More information
  • WPBD 30E
    Wide-span bend cover WPBD 30E
    width
    351 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    4.390 kg
    More information
  • WPBD 40E
    Wide-span bend cover WPBD 40E
    width
    451 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    5.840 kg
    More information
  • WPBD 50E
    Wide-span bend cover WPBD 50E
    width
    551 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    9.190 kg
    More information
  • WPBD 60E
    Wide-span bend cover WPBD 60E
    width
    651 mm
    radius
    450 mm
    Direction change
    horizontal
    Angle
    90°
    Weight per storage unit
    11.310 kg
    More information

Details

  • Protects the wide-span bend from external influences
  • Easy assembly

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
